SPL Track One MK3 Channel Strip
Pickup currently not available
- Genuine Product
- With GST Invoice
- After-sales Support
- Non-returnable
Overview
Compact and competent
In broadcast and voice recording, the compact channel strip has already made a big name for itself. Whether singer-songwriter, live event or podcast – Track One always delivers a great sound. It enriches the microphone, line or instrument signal. De-esser, compressor/limiter and equalizer ensure professional results.
In the latest Mk3 version, the high-quality recording and mixing channel strip has been improved in a variety of technical details and optimized to meet the needs of modern recording studios. The new design of the SPL Studio Series provides this third generation Track One with a more intuitive and at the same time classy design.
Specifications

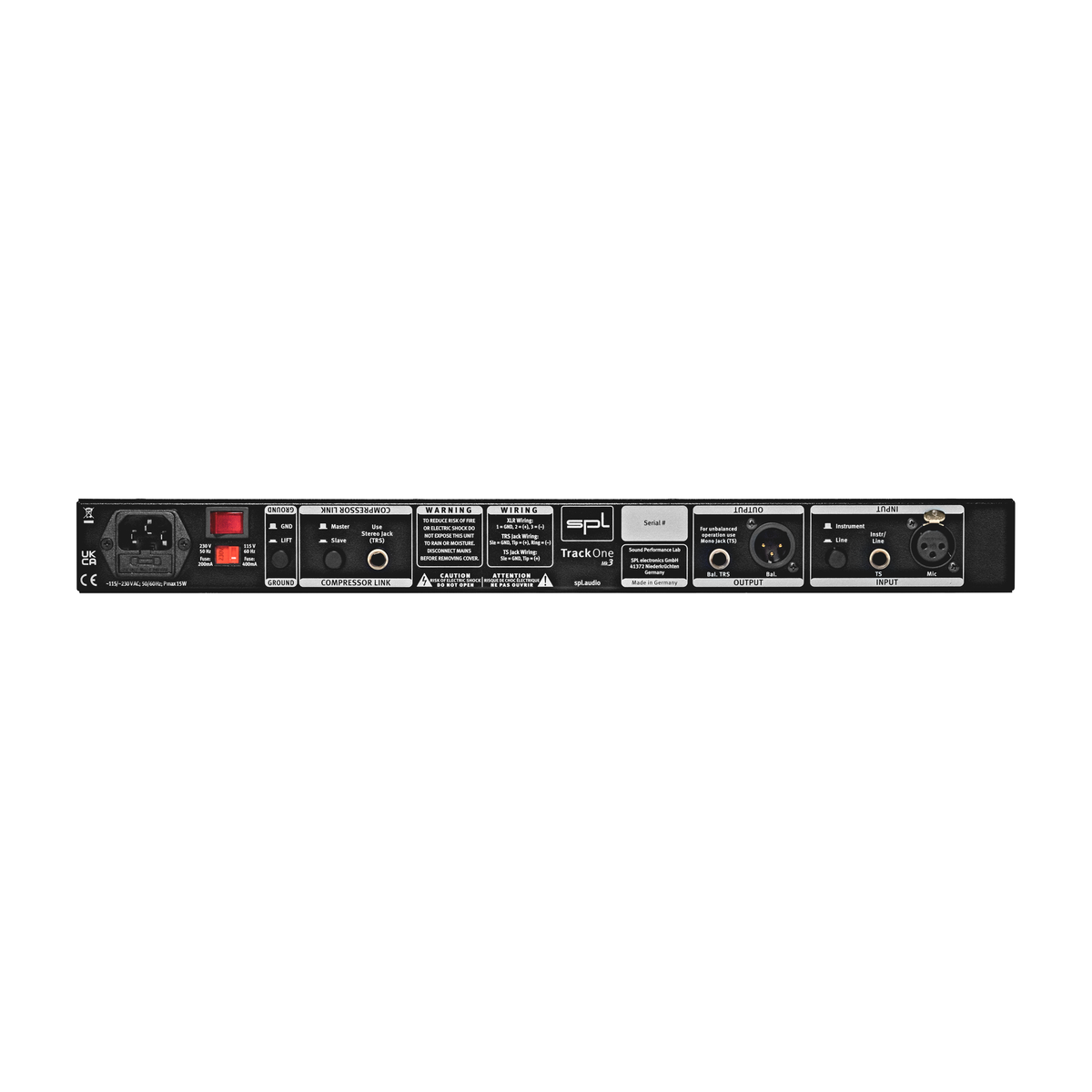

Analog inputs & output; XLR & TRS Jack (all balanced, except INSTR./LINE IN: unbalanced)
- Maximum input gain (Mic): 10.6 dBu
- Maximum input gain (Line): 33.5 dBu
- Maximum input gain (Instrument): 21.5 dBu
- Input impedance (Mic): 10 kΩ
- Input impedance (Line): 47 kΩ
- Input impedance (Instrument): 1.1 MΩ
- Maximum output gain: 20 dBu
- Output impedance: 75 Ω
- Frequency range (Mic): 10 Hz – 195 kHz
- Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain): -94.5 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 50 dB Gain): -79 dBu
- Noise (A-weighted, Mic Preamp, 150 Ω, 64 dB Gain): -65 dBu
- Equivalent Input Noise (EIN): -126.8 dBu
- Noise (A-weighted, Line/Instr Preamp, 0 dB Gain): -97 dBu
- Noise (A-weighted, Line/Instr Preamp, 10 dB Gain): -90.5 dBu
- Noise (A-weighted, Line/Instr Preamp, 22 dB Gain): -79 dBu
- Common mode rejection (1 kHz): 80 dB
- Dynamic range: 130.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
- Operating voltage for analog audio: +/- 15 V
- Phantom power: 48 V
Mains Power Supply
- Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
- Fuse for 230 V: T 200 mA
- Fuse for 115 V: T 400 mA
- Power consumption: max. 15 W
Dimensions & Weight
- W x H x D (width x height x depth): 482 x 44 x 210 mm / 19 x 1.73 x 8.27 inch
- Unit weight: 3.4 kg / 7.49 lbs
- Shipping weight (incl. packaging): 4.5 kg / 9.92 lbs
