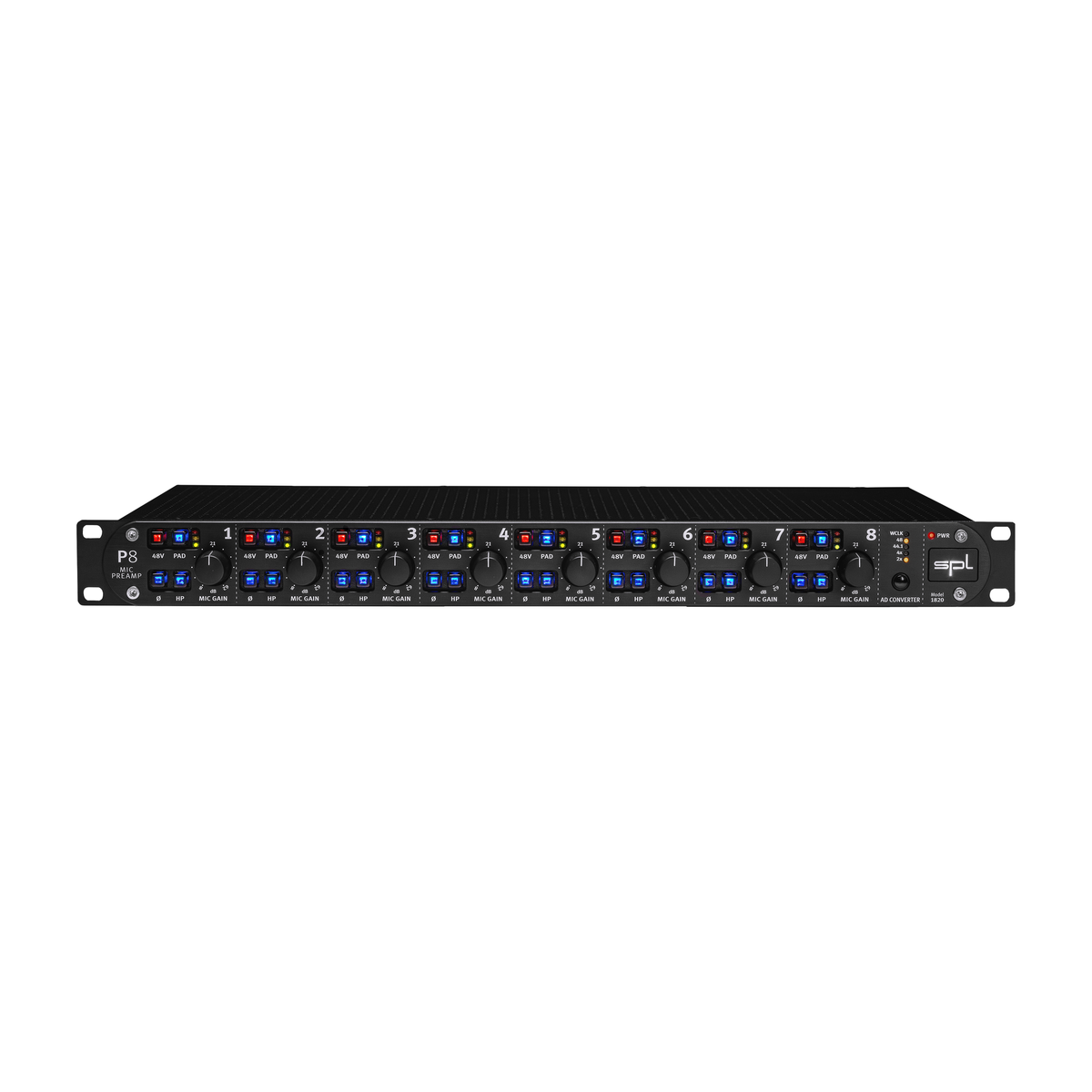

  • SPL P8 - Packshot 1

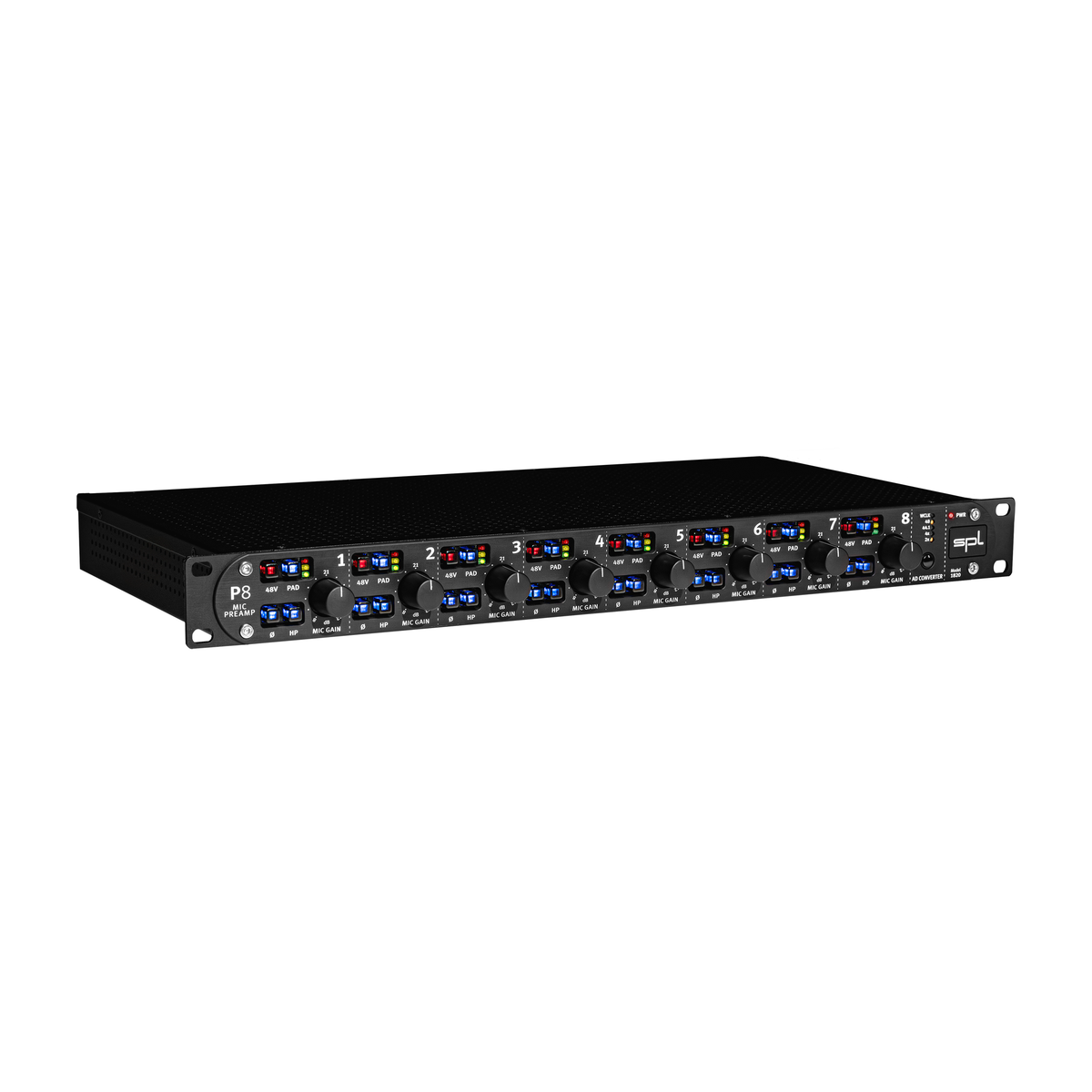

  • SPL P8 - Packshot 2

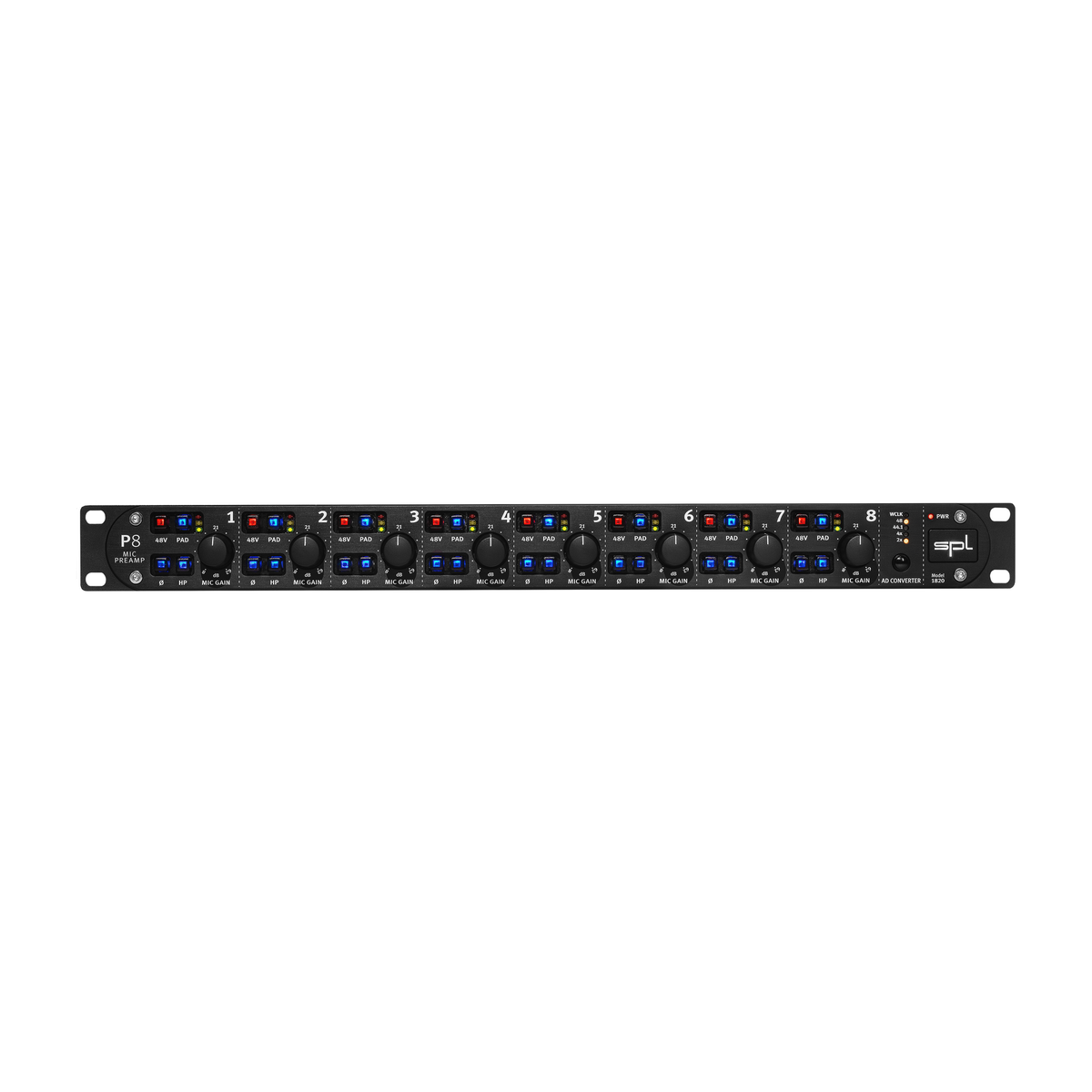

  • SPL P8 - Packshot 3

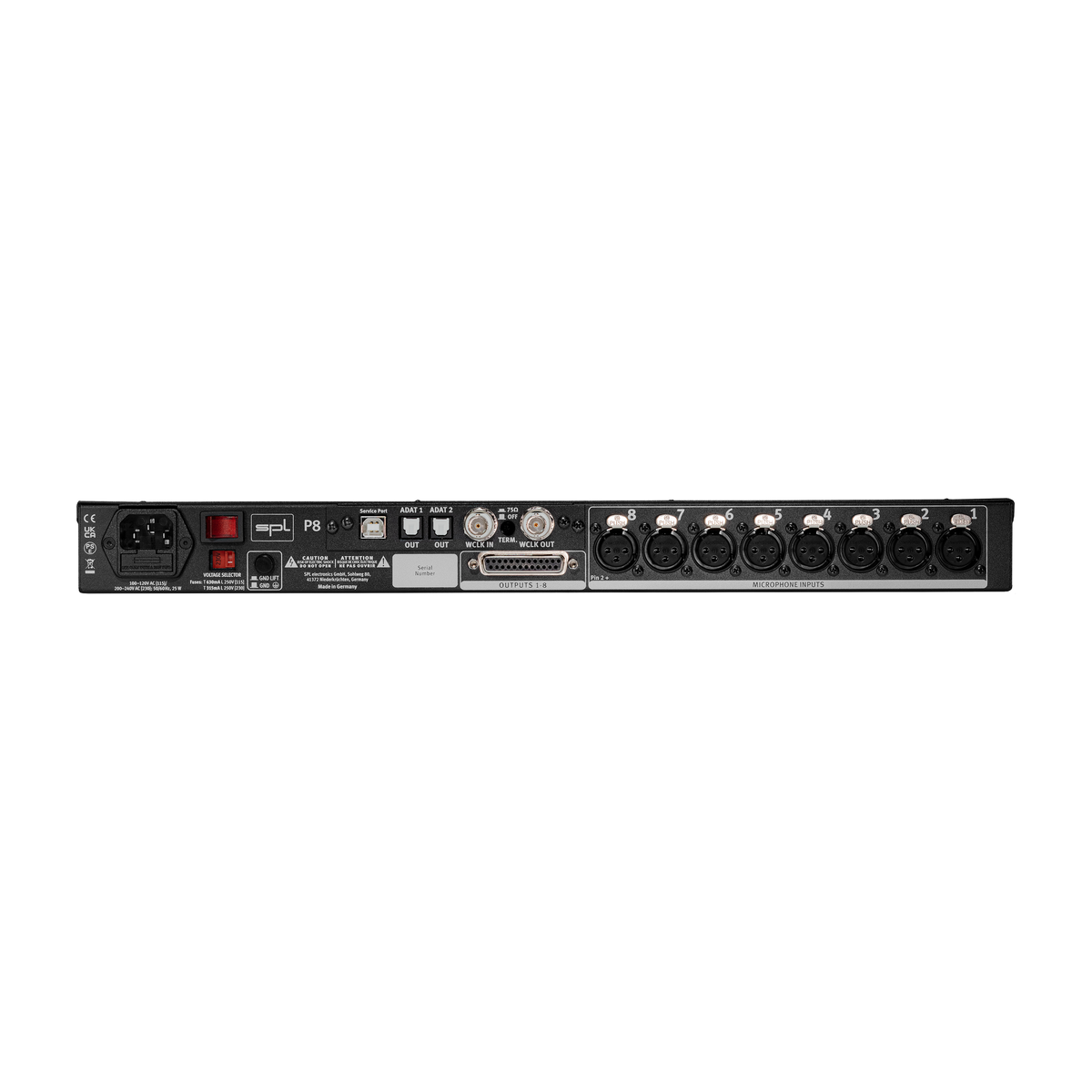

  • SPL P8 - Packshot 4
SPL P8 8-Channel Microphone Preamplifier

SPL P8 8-Channel Microphone Preamplifier

Rs. 2,53,280.00
Rs. 2,53,280.00
Taxes included. Shipping calculated at checkout.
SPL-0029

Get the best deal before you check out!

It is always a good idea to call and check for product availability and ongoing offers and discounts.

+91 844 622 6222 WhatsApp us

SPL P8 8-Channel Microphone Preamplifier
  • Genuine Product
  • With GST Invoice
  • After-sales Support
  • Non-returnable

    Overview

    Eight-channel microphone preamplifer with discrete technology

    P8 is equipped with eight identically designed microphone preamplifers. All eight preamps have a discrete design – without ICs, made of individual transistors. This is typical for absolute high-end preamplifers and is one of the main reasons for the outstanding sound.

    Besides an analog gain control for adjusting the preamplifcation, each of the eight preamps features an individually switchable phantom power supply (48 V), a PAD switch, a phase inversion function and a switchable analog high-pass flter.

    With the optional eight-channel ADAT converter, the purely analog P8 can be digitally connected to audio interfaces.

    P8 paves the way for high-quality multi-channel recording sessions.

    Specifications

    Analog input & output; XLR & DB25 (balanced)

    • Maximum input level (Mic, +8 dB – +62 dB): 13,5 dBu
    • Input impedance (Mic/Line): 10 kΩ
    • Output impedance: 75 Ω
    • Frequency range: 15 Hz – 200 kHz
    • Equivalent Input Noise (EIN): -124 dBu
    • Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain): -94 dBu
    • Noise (A-weighted, Mic Preamp, 150 Ω, 62 dB Gain): -66 dBu
    • Common mode rejection ratio (CMRR, 1 kHz) Mic Input: < 78 dB
    • THD+N Ratio (1 kHz), Mic 30 dB Gain: 0,003 %
    • THD+N Ratio (1 kHz), Mic 63 dB Gain: 0,022 %
    • Signal display: Green -25 dBu / Yellow 0 dBu
    • (without AD converter): Red +19 dBu
    • -3 dBFs (with AD converter): +12 dBu

    Internal Linear Power Supply with Shielded Toroidal Transformer

    • Operating voltage for audio electronics: +/-18 V
    • Operating voltage for relays and LEDs: +12 V
    • Phantom power: +48 V
    • Operating voltage AD converter card: +12 V / +3,3 V

    Mains Power Supply

    • Mains voltage (selectable, see fuse chamber): 230 V AC / 50 Hz; 115 V AC / 60 Hz
    • Fuse for 230 V: T 315 mA
    • Fuse for 115 V: T 630 mA
    • Power consumption: max. 27 VA

    Dimensions & Weight

    • W x H x D (width x height x depth): 482 x 44 x 237 mm / 19 x 1.73 x 9.33 inch
    • Unit weight: 4,15 kg / 9,15 lbs
    • Shipping weight (incl. packaging): 5,4 kg / 11,9 lbs
