Name: Universal Audio Volt 2 Max USB Audio Interface
Brand: Universal Audio
SKU: UAD-0084
Price: 37952.00 INR
Availability: InStock

Volt Max

10-in / 4-out USB-C interface with Max Processing.

Two Tone Shaping preamps, six compressor presets, talkback mic and 32-bit / 192 kHz conversion.

Buy now Technical data

Overview

Universal Audio Volt 2 Max USB Audio Interface

The Universal Audio Volt 2 Max is a 10-in/4-out desktop USB audio interface with two Tone Shaping preamps and Max Processing, an onboard real-time compressor with six presets for vocals, guitar and bass. It converts audio at up to 32-bit / 192 kHz over USB-C.

Tone Shaping has three modes, Warmth, Focus and Shine, and Max Processing has six presets: Great Vocal, Rap Vocal, Album Vocal, Electric Guitar, Jangly Acoustic and Tight Bass. The presets are based on UA 1176, LA-2A and VCA compressor designs, and each can be combined with any Tone Shaping mode for more than 18 character combinations. Both are selectable per channel, and direct monitoring includes the Tone Shaping and Max compression.

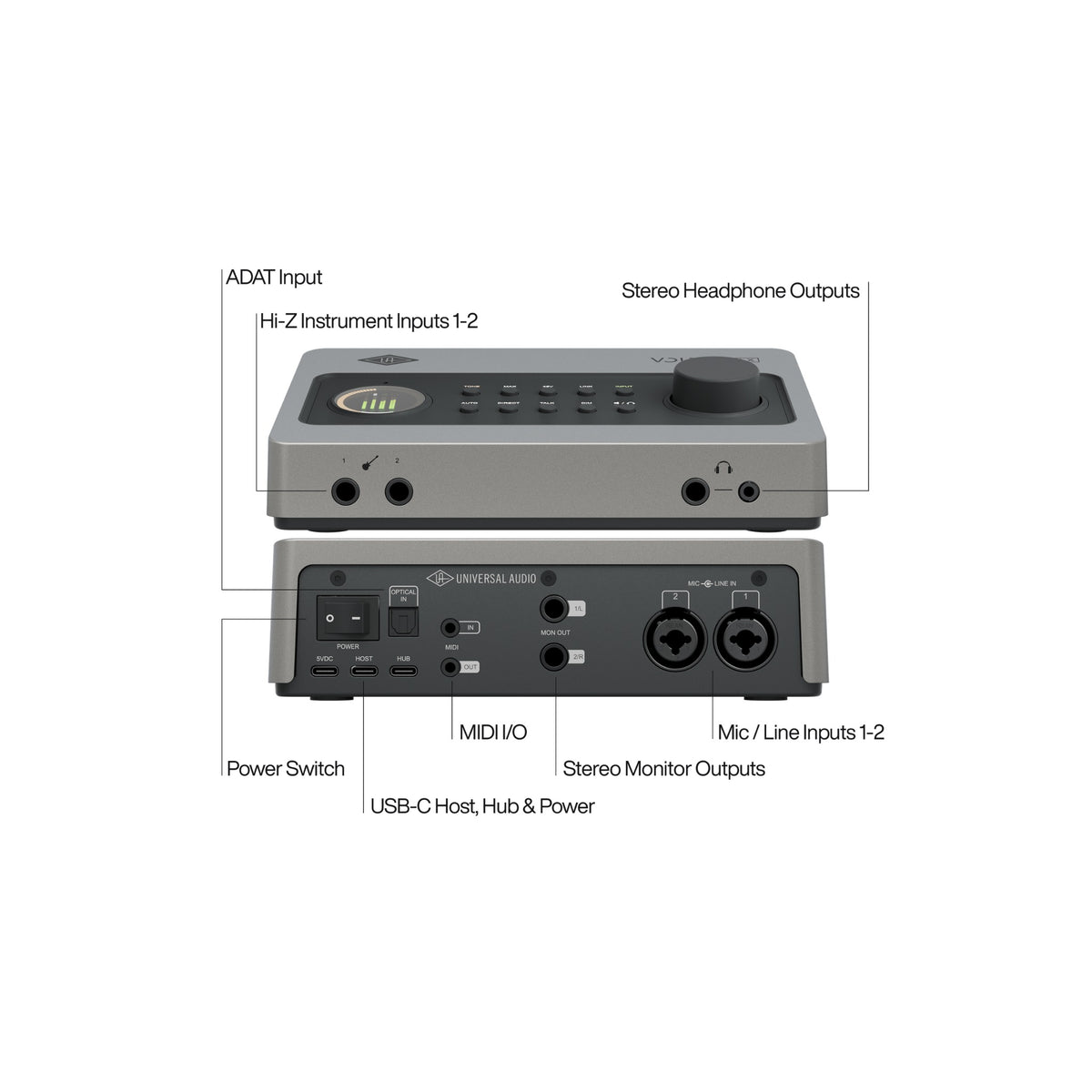

Two combo XLR/TRS mic/line inputs with independent +48V phantom power and two front-panel Hi-Z instrument inputs support recording several sources. A built-in talkback microphone, two headphone outputs sharing one cue mix, an optical input for eight channels of ADAT or two of S/PDIF, MIDI In and Out and a USB hub complete the connections. A full-colour Smart Display shows levels and gain reduction, and Auto-Gain and Clip Protection help set recording levels. The Volt 2 Max is USB bus-powered, includes built-in loopback, works with UAD Console and LUNA, and comes with the UAD Volt Studio Bundle.

Key Features

10-in / 4-out desktop USB audio interface with professional 32-bit / 192 kHz audio conversion
Two Tone Shaping Preamps with 60 dB gain and three harmonic character modes — Warmth, Focus, and Shine — for the rich sounds of classic analog mic preamps at the source
Max Processing — onboard realtime compression with six musical presets for vocals, guitars, and bass, modeled on classics like the LA-2A and 1176
Over 18 character combinations by pairing Tone and Max, all completely noise-free
Two mic / line inputs with two front-panel Hi-Z instrument inputs
Built-in talkback microphone for effortless studio communication
ADAT or S/PDIF optical input for up to eight channels of digital expansion, plus MIDI In and Out
Onboard USB hub for connecting peripherals and powering external MIDI controllers
Full-color Smart Display for bright, at-a-glance visual feedback, including gain-reduction metering
Auto-Gain and Clip Protection for perfect recording levels, every time
Two studio-quality headphone outputs (with one shared cue mix) for monitoring and collaboration
Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
Built-in loopback for podcasting, streaming, and content creation
Independent 48V phantom power per channel for condenser microphones
USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone
Stylish, rugged construction built to withstand years of use

Universal Audio Volt 2 Max USB Audio Interface

01Set the level

Auto-Gain sets it in about 10 seconds.

Select a channel, press AUTO and play or sing at your loudest level. Clip Protection applies a hardware limiter before the analog-to-digital converters.

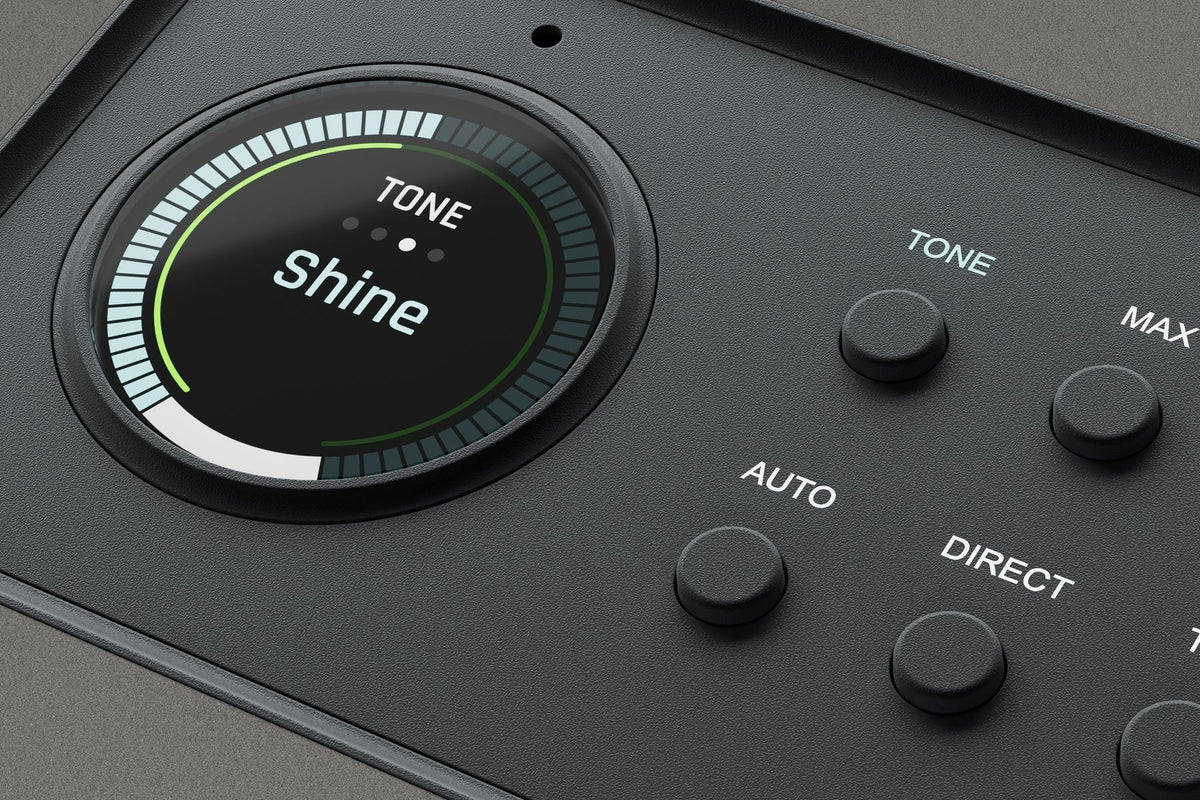

02Choose a tone

Warmth, Focus or Shine.

Each mode applies an EQ curve and harmonic saturation derived from analog hardware, and saturation increases as you add gain.

03Add compression

Six Max Processing presets.

Great Vocal, Rap Vocal, Album Vocal, Electric Guitar, Jangly Acoustic and Tight Bass, with gain reduction shown on the Smart Display.

Technology

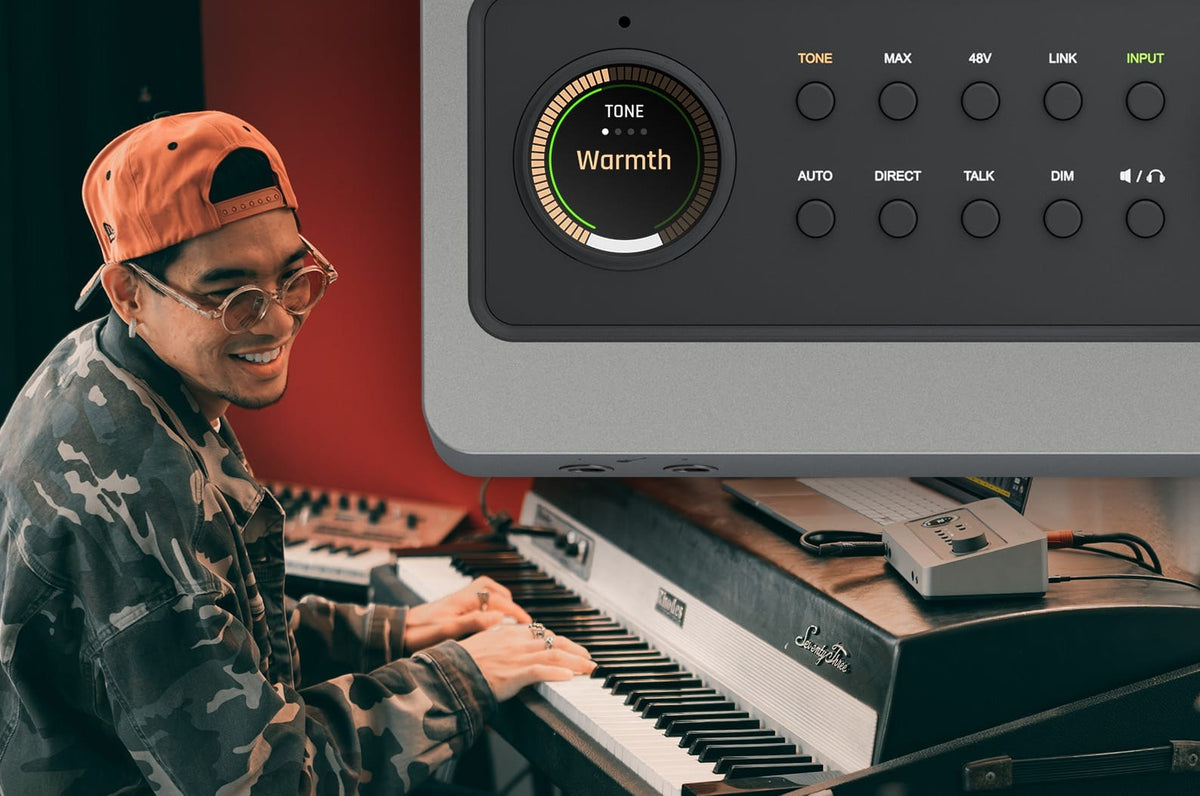

Tone Shaping preamps

Three modes. Warmth: tube-style glow with soft transients. Focus: punchy transients with clarity. Shine: a full sound with a silky top end. Each includes an EQ curve and harmonic saturation.

Max Processing

Onboard real-time compression with six presets, based on UA 1176, LA-2A and VCA designs. Pair any preset with any Tone mode for more than 18 combinations.

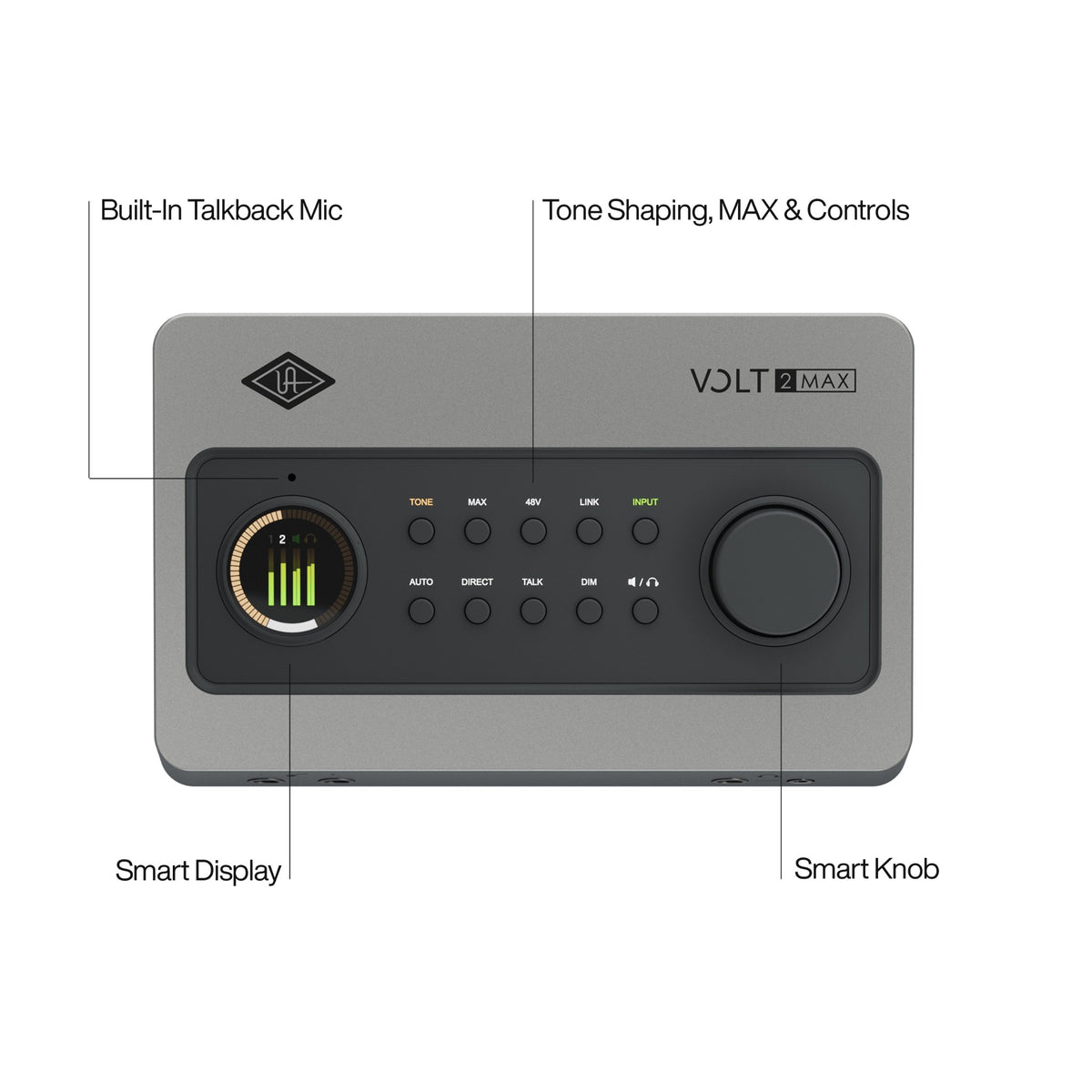

Smart Display, Auto-Gain, Clip Protection

A full-colour display shows inputs, levels, settings and gain reduction. Auto-Gain sets levels; Clip Protection limits peaks before conversion.

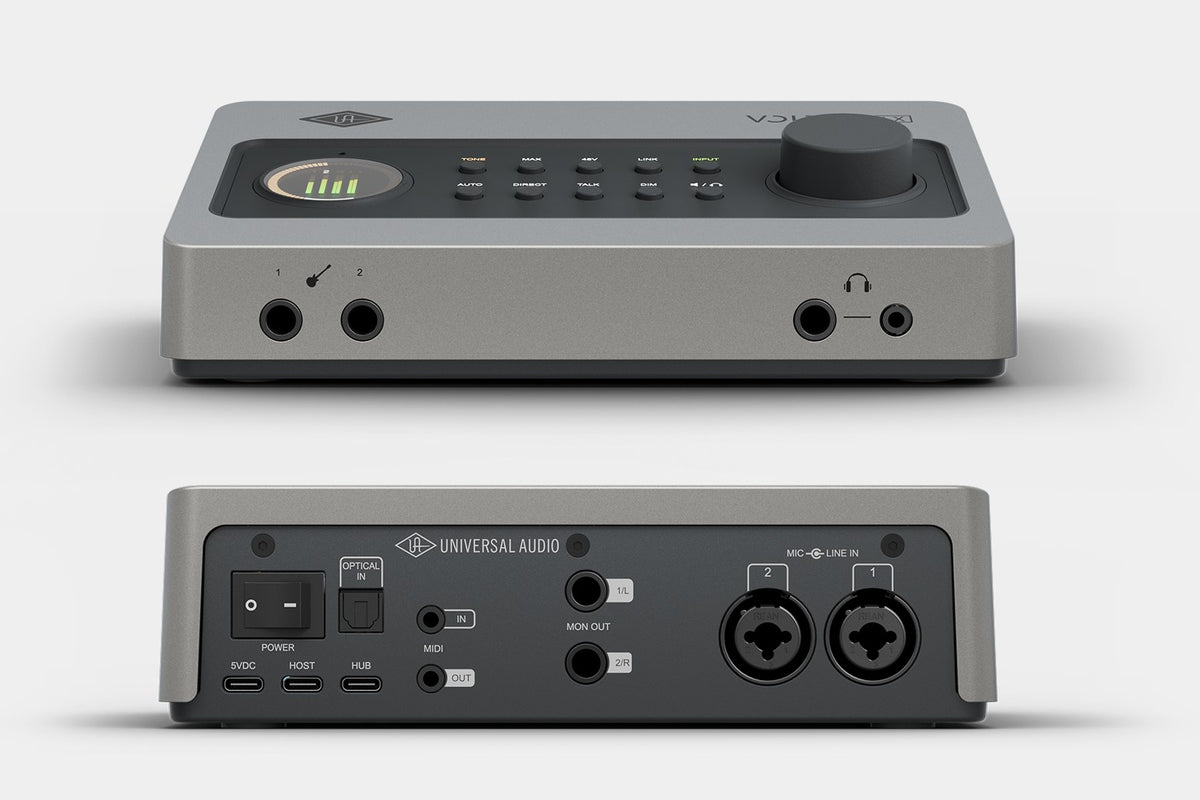

Expansion and monitoring

Optical input for up to eight ADAT channels or two S/PDIF channels, MIDI In and Out, a USB hub, talkback mic and two headphone outputs with one shared cue mix.

Technical Data

System: I/O Complement

Microphone/Line Preamp Inputs	Two combo XLR/TRS
Instrument Inputs	Two ¼" TS
Monitor Outputs	Two
Headphone Outputs	One 1/4" stereo One 1/8" stereo
USB (Type-C connectors)	One USB 2.0 host port (bus-power capable) · One USB 5VDC power port · One USB hub port
MIDI	In, out (two 3.5 mm Type-A)

System: A/D – D/A Conversion

Supported Sample Rates (kHz)	44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample	32
Simultaneous A/D Conversion	Two channels
Simultaneous D/A Conversion	Four channels (2 main, 1 stereo headphone)

Analog I/O: Mic, Line, Instrument Inputs (AC Coupled)

Available Gain	60 dB
Tone Shaping (selectable per channel)	Warmth, Focus, Shine
Max Processing (selectable per channel)	Great Vocal, Rap Vocal, Album Vocal, Electric Guitar, Jangly Acoustic, Tight Bass

Analog I/O: Microphone Inputs

Frequency Response	20 Hz to 20 kHz, ±0.08 dB
Dynamic Range (A–weighted)	119 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003 %)
Maximum Input Level	14 dBu
Input Impedance	2 Kilohms
Phantom Power	+48V (switchable per channel)
Connector Type	XLR Female, pin 2 positive

Analog I/O: Instrument Inputs

Frequency Response	20 Hz to 20 kHz, ±0.02 dB
Dynamic Range (A–weighted)	116 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %)
Maximum Input Level	13 dBu
Input Impedance	1 Megohms
Connector Type	¼" TS unbalanced

Analog I/O: Line Inputs

Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	119 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %)
Maximum Input Level	22 dBu
Input Impedance	10 Kilohms
Connector Type	¼" TRS balanced or TS unbalanced

Analog I/O: Monitor Outputs (DC Coupled)

Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	126 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003 %)
Maximum Output Level	20.2 dBu
Output Impedance	200 Ohms
Connector Type	¼" TRS balanced

Analog I/O: Stereo Headphone Outputs (DC Coupled)

Frequency Response	20 Hz to 20 kHz, ±0.08 dB
Dynamic Range (300 Ohms, A–weighted)	116 dB
THD + Noise (1 kHz @ -1 dBFS, 300 Ohms)	-103 dB (0.0007 %)
Maximum Output Power into 32 Ohms	45 mW per channel
Maximum Output Power into 300 Ohms	24 mW per channel
Connector Type	¼" TRS Stereo

S/PDIF

Connector Type	Optical TOSLINK JIS F05 (shared with ADAT)
Format	IEC 958
Supported Sample Rates (kHz)	44.1, 48, 88.2, 96, 176.4, 192

ADAT

Connector Type	Optical TOSLINK JIS F05 (shared with S/PDIF)
Format	ADAT Digital Lightpipe with S/MUX
Supported Sample Rates (kHz)	44.1, 48, 88.2, 96, 176.4, 192
Channel Assignments @ 44.1 kHz, 48 kHz	Channels 1 – 8
Channel Assignments @ 88.2 kHz, 96 kHz	Channels 1 – 4
Channel Assignments @ 176.4 kHz, 192 kHz: Channels 1 – 2
Synchronization Sources	Internal, ADAT, S/PDIF

Electrical

DC Input Connector Type	USB-C
DC Requirements	5VDC (bus-power capable via Host port)
Power Consumption (@5VDC)	4.1 W typical, 5.7 W maximum

Environmental

Ambient Temperature Range	32° to 104° F (0° to 40° C)

Mechanical: Dimensions

Chassis (including knobs)	Width x Depth x Height 7.5 x 4.5 x 2.1 in (18,1 x 11,5 x 5,4 cm)
Shipping Box	Width x Depth x Height 9.3 x 5.3 x 4.7 in (23,6 x 14,6 x 12,0 cm)

Mechanical: Weight

Shipping Weight (with box & accessories): 2.8 lbs (1.3 kg)
Weight (bare unit)	1.3 lbs (0.6 kg)

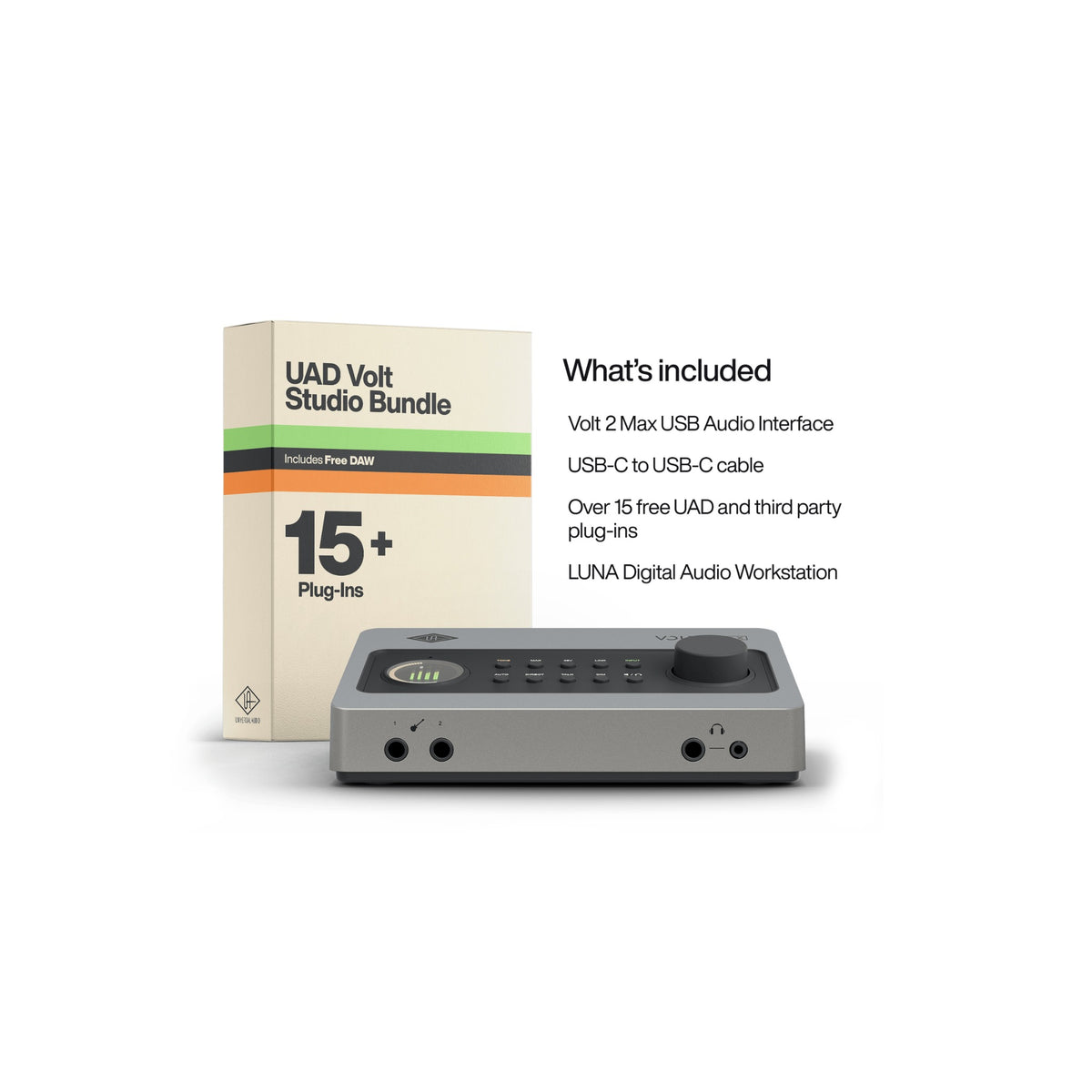

What's in the box

Volt 2 Max USB audio interface
One-meter USB cable (Type-C to Type-C)
Important safety instructions
End-user license agreement

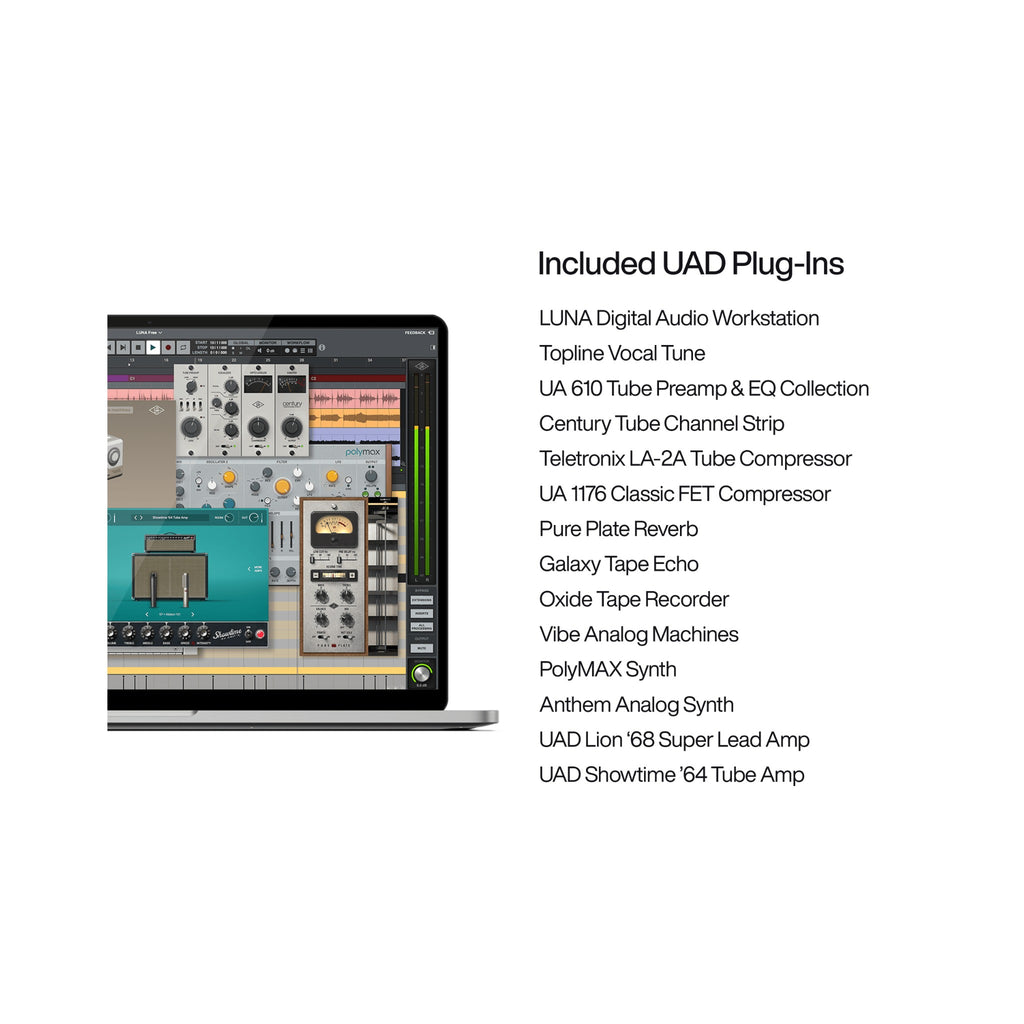

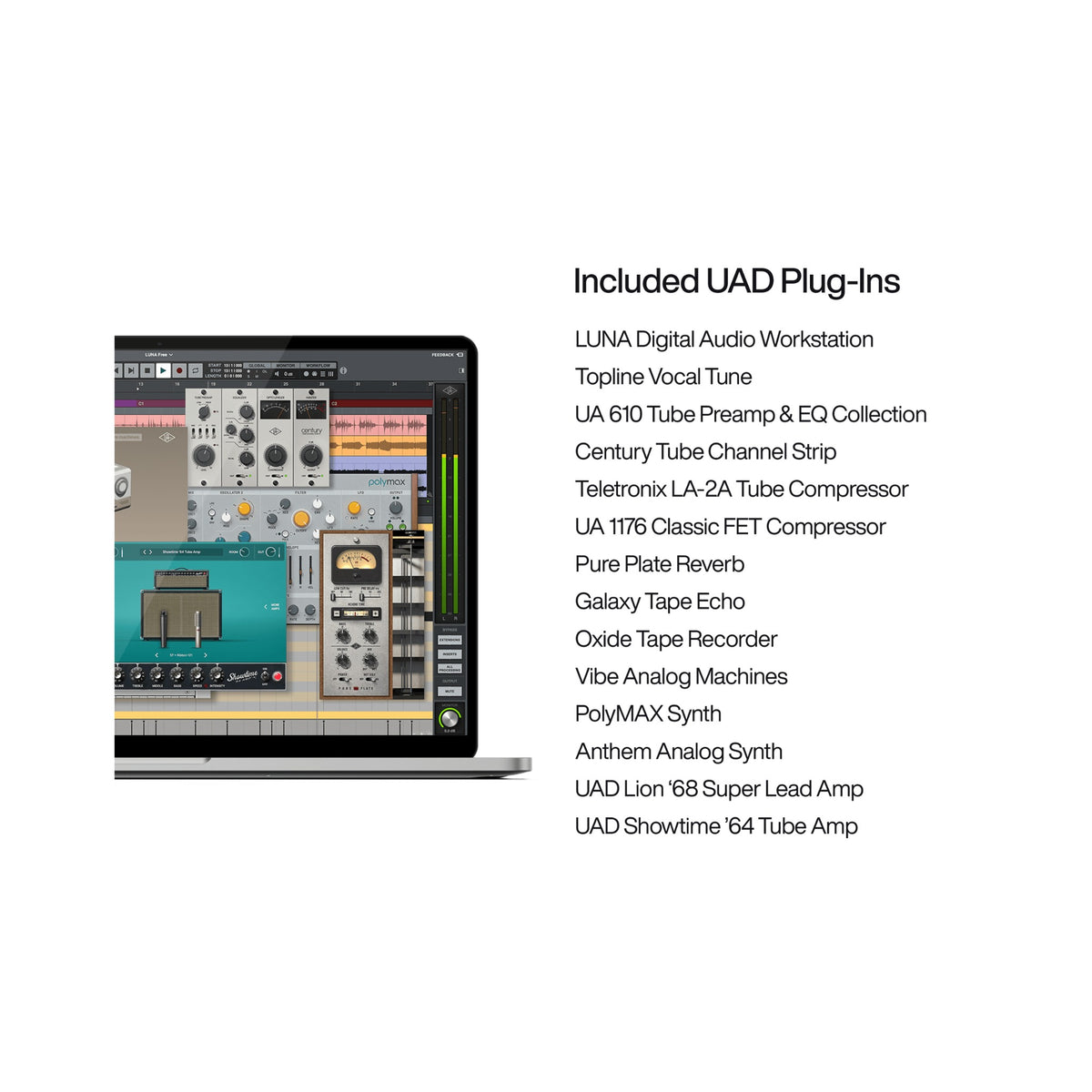

UA plug-ins and apps

LUNA (DAW)
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines and Vibe Analog Machines Essentials
PolyMAX Synth
Anthem Analog Synth
UAD Lion '68 Super Lead Amp
UAD Showtime '64 Tube Amp

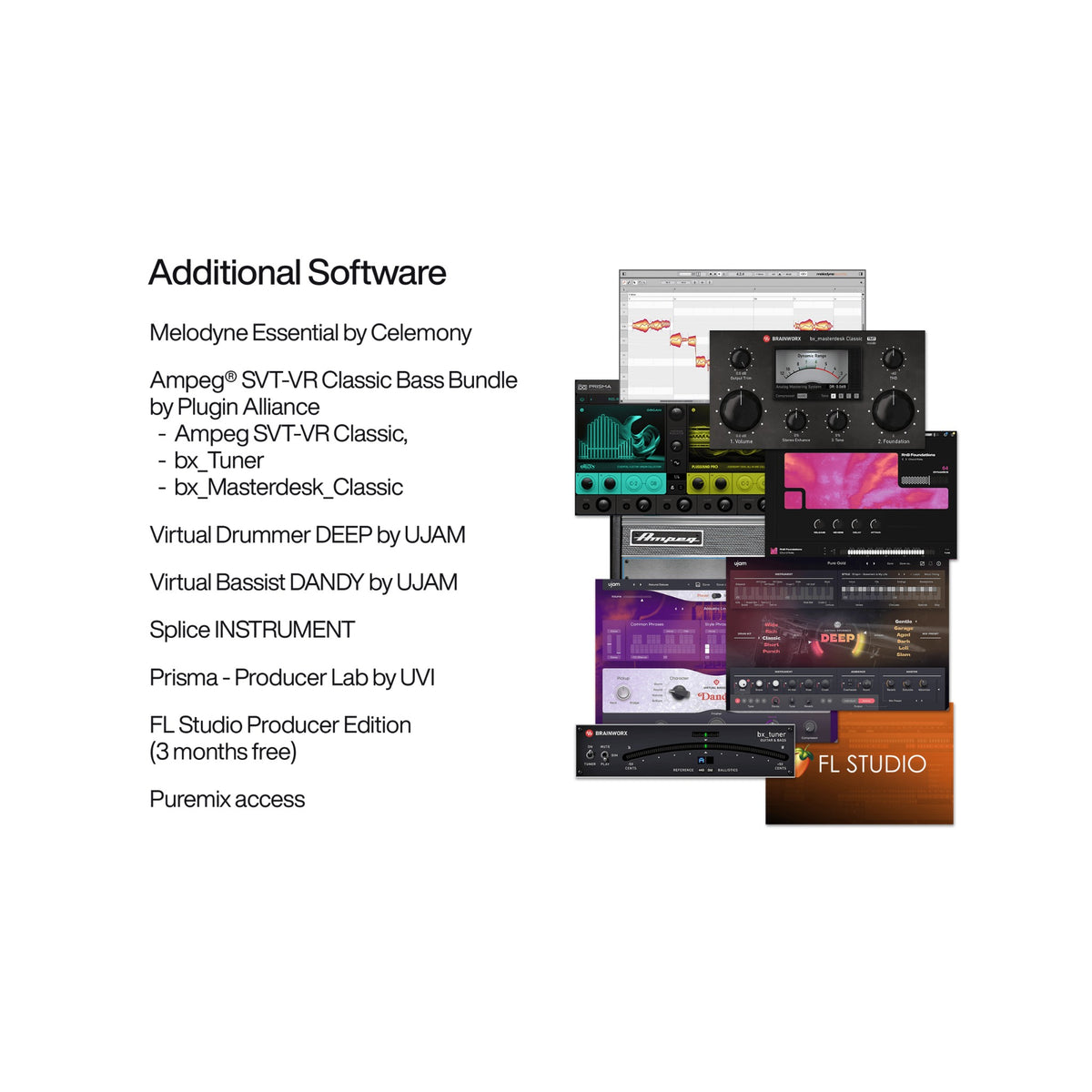

Additional software (partner developers)

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition (3 months free)
Access to exclusive Puremix audio education content

System requirements

macOS and Windows	Available USB 2.0 (or higher) port; USB cable (included); Intel, AMD or Apple silicon processor; Windows 10 64-bit or newer; macOS 12 Monterey or newer; internet connection for software downloads
iPad and iPhone	iPadOS / iOS 16 or newer. Devices with a Lightning port need an Apple Lightning to USB Camera Adapter.
DAW compatibility	All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
Windows driver	Windows uses the ASIO driver, available in the UA Connect app. Mac and iOS/iPadOS need no driver (class-compliant).

Notes

Requirements for bus-power vary by model and device. All specifications are subject to change without notice (per the maker).
