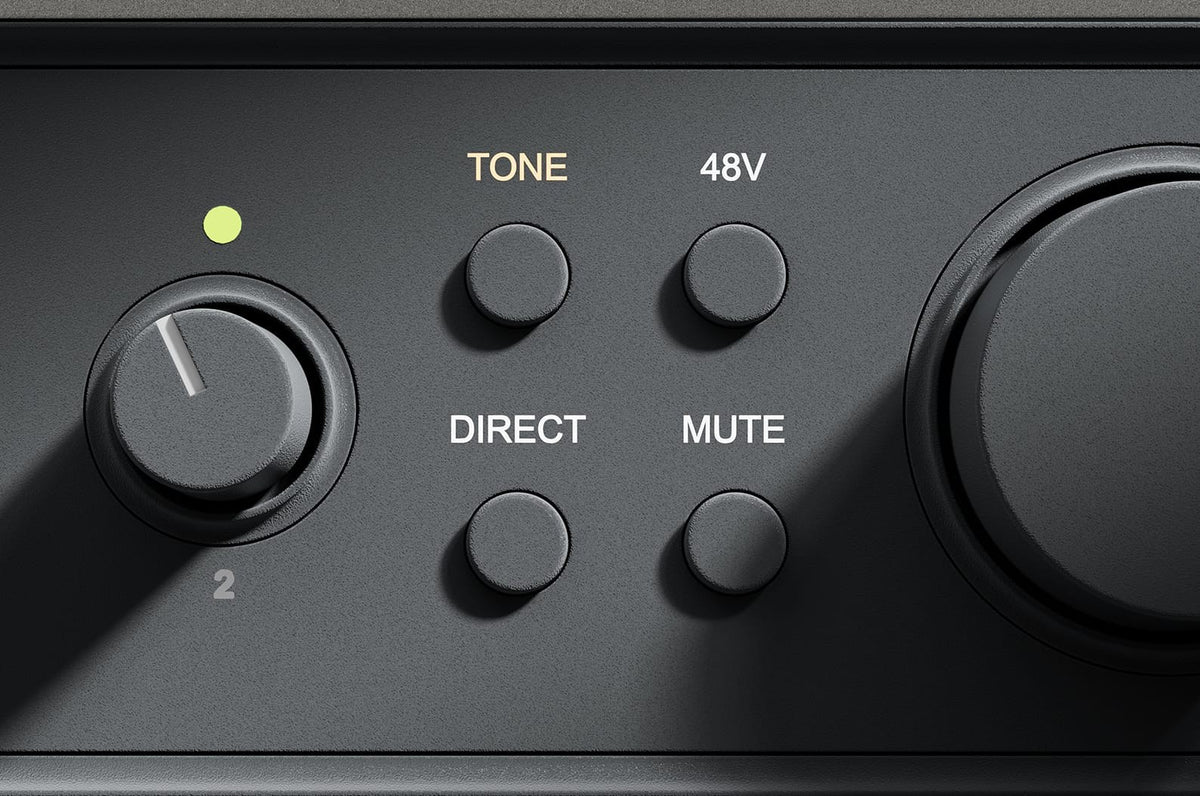

Tone Shaping preamp
Three modes. Warmth: tube-style glow with soft transients. Focus: punchy transients with clarity. Shine: a full sound with a silky top end. Each includes an EQ curve and harmonic saturation.
Volt
2-in / 2-out USB-C interface with a Tone Shaping preamp.
One mic/line input, one Hi-Z instrument input, 60 dB of gain and 32-bit / 192 kHz conversion.
Skip to product information
Save5%
Universal Audio Volt 1 Gen 2 USB Audio Interface
Rs. 18,915.00
Sale price
Rs. 18,915.00
Regular price
Rs. 19,910.00
Taxes included.
Shipping calculated at checkout.
UAD-0081
Pickup currently not available
- Genuine Product
- With GST Invoice
- After-sales Support
- Non-returnable
Overview

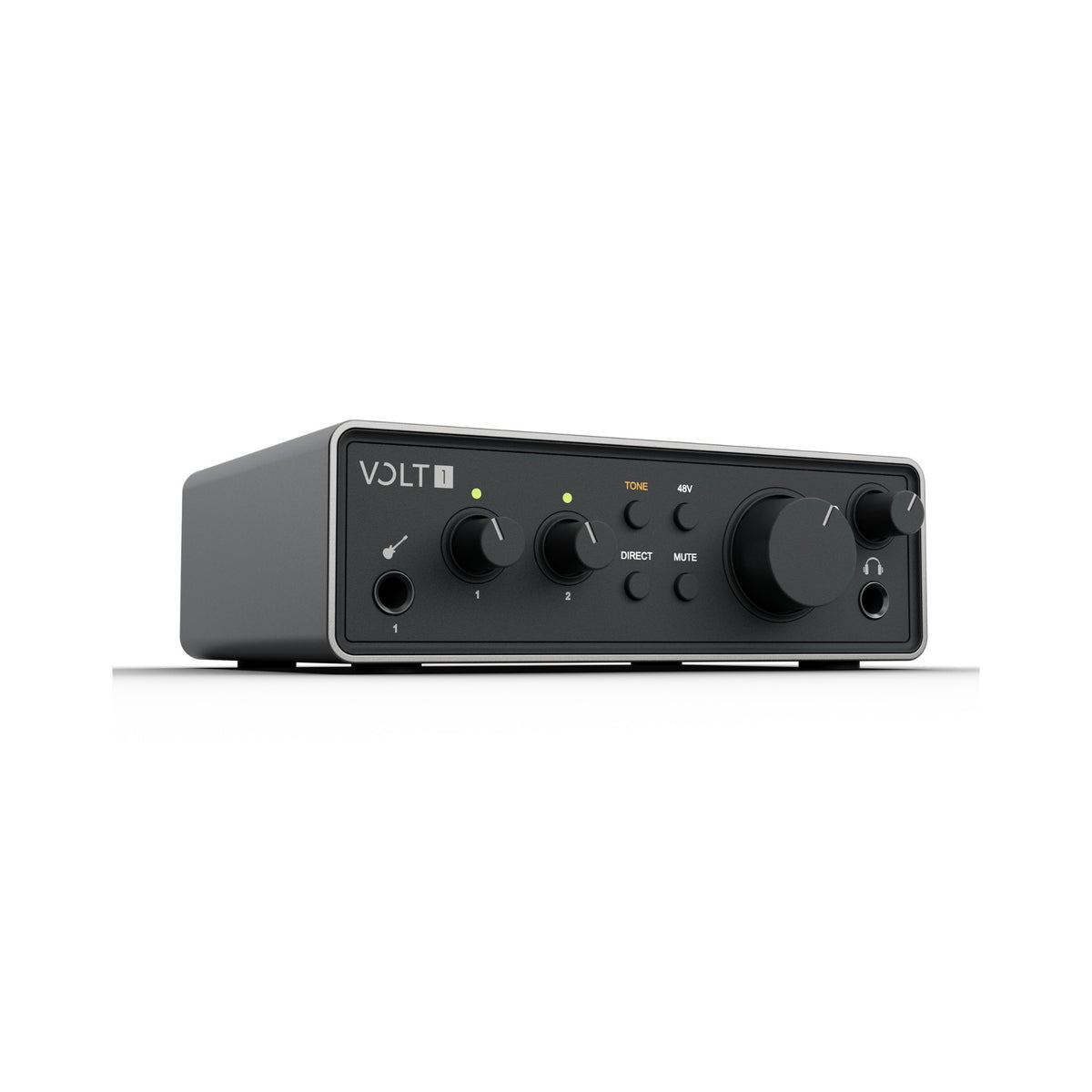

Universal Audio Volt 1 Gen 2 USB Audio Interface
The Universal Audio Volt 1 Gen 2 is a 2-in/2-out USB audio interface with one Tone Shaping preamp. It converts audio at up to 32-bit / 192 kHz and connects to a computer, iPad or iPhone over USB-C.

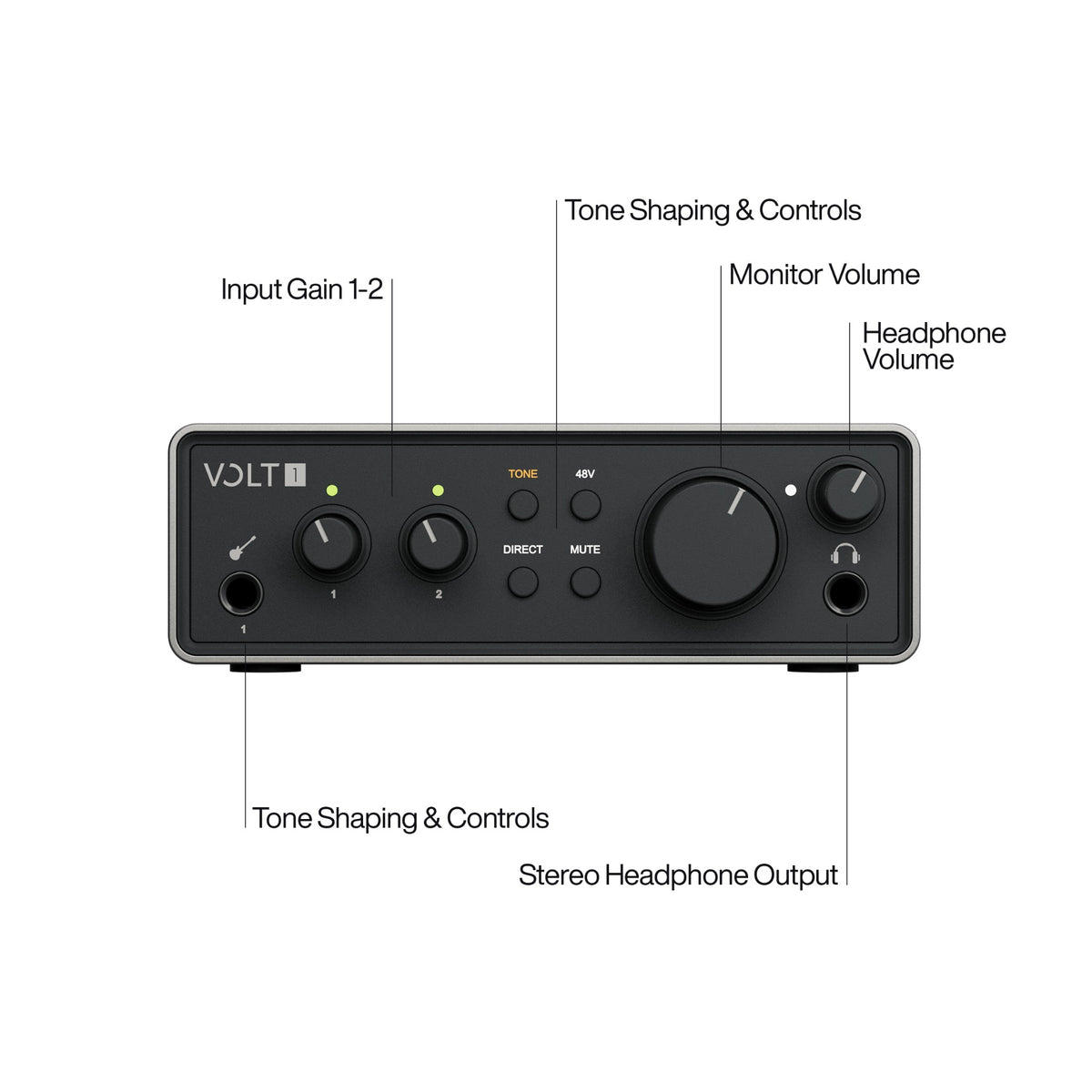

It has one combo XLR/TRS mic/line input with switchable +48V phantom power and one front-panel Hi-Z instrument input, so a microphone and a guitar can be recorded at the same time. Tone Shaping adds three character modes, Warmth, Focus and Shine, with 60 dB of available gain. One stereo headphone output and two monitor outputs cover monitoring.
The Volt 1 Gen 2 is USB bus-powered and class-compliant, so it works with Mac, iPad and iPhone without a driver. Windows uses the ASIO driver from the UA Connect app. Built-in loopback routes computer audio back into your recording for podcasting and streaming, and the unit works with the UAD Console app and the LUNA Digital Audio Workstation. The UAD Volt Studio Bundle is included.
Key Features
- 2-in / 2-out USB audio interface with professional 32-bit / 192 kHz audio conversion
- Tone Shaping Preamp with 60 dB gain and three character modes — Warmth, Focus, and Shine — for the sound of classic analog mic preamps
- Mic / line input and front-panel Hi-Z instrument input for recording your voice and guitar at the same time
- Studio-quality headphone output for clear, confident monitoring
- Works with the UAD Console app and LUNA Digital Audio Workstation
- Built-in loopback for podcasting, streaming, and content creation
- 48V phantom power for condenser microphones
- USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone
- Stylish, rugged construction built to withstand years of use
Technology
Mic and instrument together
One mic/line input and a front-panel Hi-Z instrument input let you record your voice and guitar at the same time.
Loopback and software
Built-in loopback for podcasting, streaming and content creation, and integration with the UAD Console app and LUNA.
Bus-powered, class-compliant
USB bus-powered and class-compliant on Mac, iPad and iPhone; Windows uses the UA ASIO driver.
Technical Data

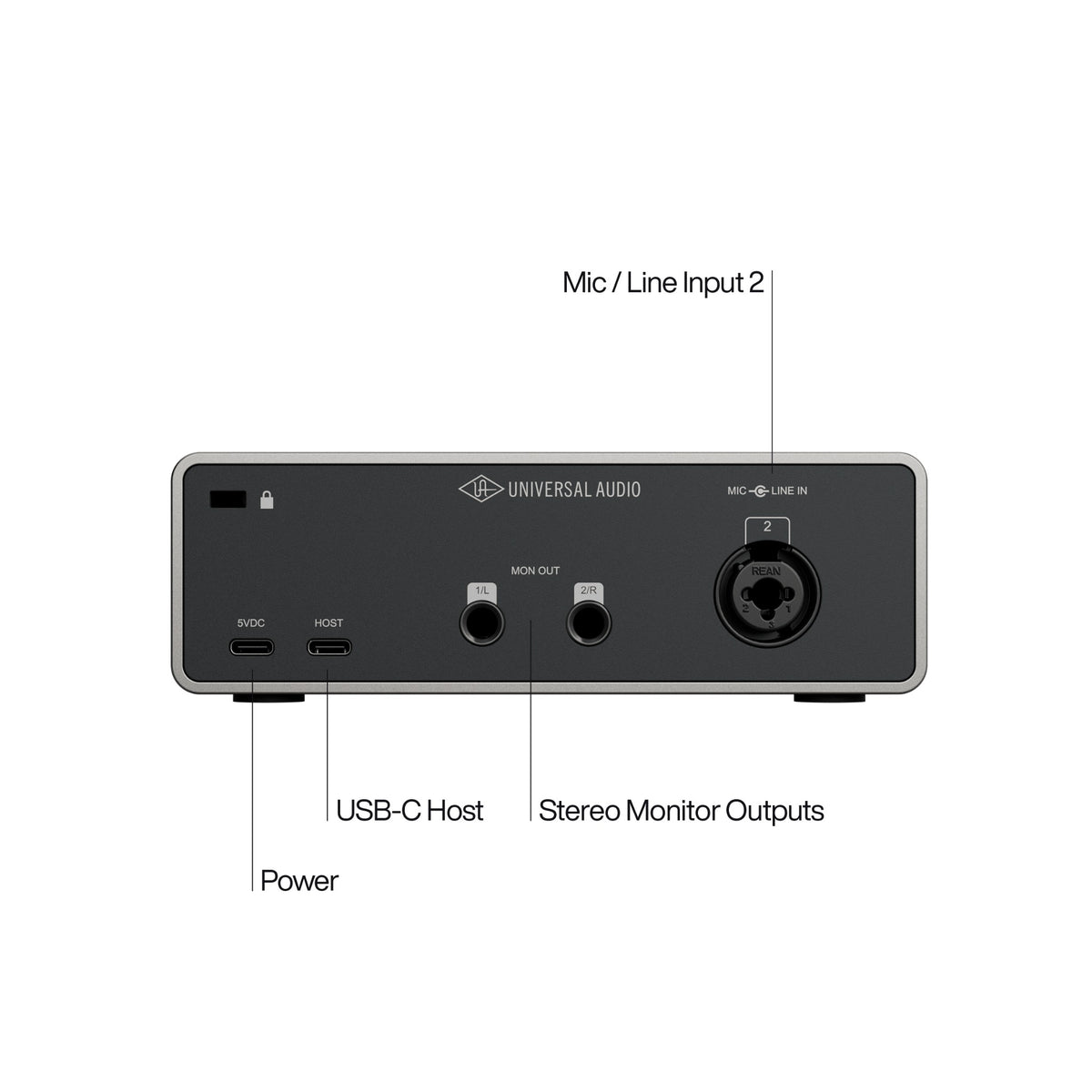

System: I/O Complement
| Microphone/Line Preamp Input | One combo XLR/TRS |
|---|---|
| Instrument Input | One TS |
| Monitor Outputs | Two |
| Headphone Outputs | One stereo |
| USB (Type-C connectors) | One USB 2.0 host port (bus-power capable) · One USB 5VDC power port |
System: A/D – D/A Conversion
| Supported Sample Rates (kHz) | 44.1, 48, 88.2, 96, 176.4, 192 |
|---|---|
| Bit Depth Per Sample | 32 |
| Simultaneous A/D Conversion | Two channels |
| Simultaneous D/A Conversion | Two channels (shared main & stereo headphone) |
Analog I/O: Mic, Line, Instrument Inputs (AC Coupled)
| Available Gain | 60 dB |
|---|---|
| Tone Shaping (selectable on channel two): Warmth, Focus, Shine | |
Analog I/O: Microphone Inputs
| Frequency Response | 20 Hz to 20 kHz, ±0.1 dB |
|---|---|
| Dynamic Range (A–weighted) | 119 dB |
| Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %) | |
| Maximum Input Level | 14.5 dBu |
| Input Impedance | 2 Kilohms |
| Phantom Power | +48V (XLR only) |
| Connector Type | XLR Female, pin 2 positive |
Analog I/O: Instrument Inputs
| Frequency Response | 20 Hz to 20 kHz, ±0.03 dB |
|---|---|
| Dynamic Range (A–weighted) | 116 dB |
| Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -101 dB (0.0009 %) | |
| Maximum Input Level | 12.5 dBu |
| Input Impedance | 1 Megohms |
| Connector Type | ¼" TS unbalanced |
Analog I/O: Line Inputs
| Frequency Response | 20 Hz to 20 kHz, ±0.05 dB |
|---|---|
| Dynamic Range (A–weighted) | 119 dB |
| Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %) | |
| Maximum Input Level | 22 dBu |
| Input Impedance | 10 Kilohms |
| Connector Type | ¼" TRS balanced or TS unbalanced |
Analog I/O: Monitor Outputs (DC Coupled)
| Frequency Response | 20 Hz to 20 kHz, ±0.04 dB |
|---|---|
| Dynamic Range (A–weighted) | 122 dB |
| Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -111 dB (0.0003 %) | |
| Maximum Output Level | 20.2 dBu |
| Output Impedance | 100 Ohms |
| Connector Type | ¼" TRS balanced |
Analog I/O: Stereo Headphone Outputs (DC Coupled)
| Frequency Response | 20 Hz to 20 kHz, ±0.1 dB |
|---|---|
| Dynamic Range (300 Ohms, A–weighted) | 121 dB |
| THD + Noise (1 kHz @ -1 dBFS, 300 Ohms) | -108 dB (0.0004 %) |
| Maximum Output Power into 32 Ohms | 45 mW per channel |
| Maximum Output Power into 300 Ohms | 24 mW per channel |
| Connector Type | ¼" TRS Stereo |
Electrical
| DC Input Connector Type | USB-C |
|---|---|
| DC Requirements | 5VDC (bus-power capable via Host port) |
| Power Consumption (@5VDC) | 2.4 W typical, 3.6 W maximum |
Environmental
| Ambient Temperature Range | 32° to 104° F (0° to 40° C) |
|---|
Mechanical: Dimensions
| Chassis (including knobs) | Width x Depth x Height 6.1 x 4.9 x 2 in (15,5 x 12,5 x 5,1 cm) |
|---|---|
| Shipping Box | Width x Depth x Height 7.9 x 7.3 x 3.1 in (20 x 18,5 x 8 cm) |
Mechanical: Weight
| Shipping Weight (with box & accessories): 1.8 lbs (0.8 kg) | |
| Weight (bare unit) | 1.2 lbs (0.5 kg) |
|---|---|

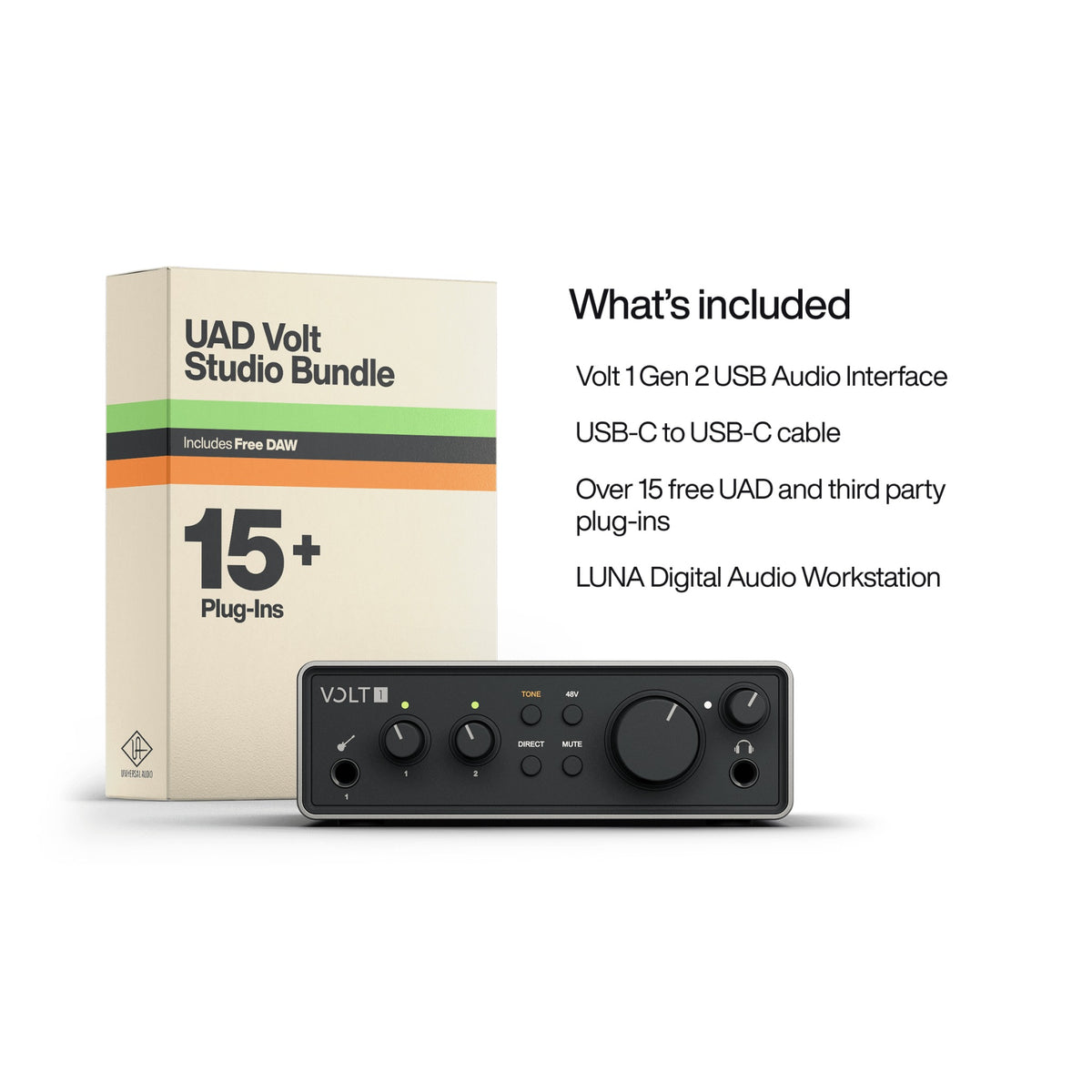

What's in the box
| Volt 1 Gen 2 USB audio interface | |
| One-meter USB cable (Type-C to Type-C) | |
| Important safety instructions | |
| End-user license agreement |

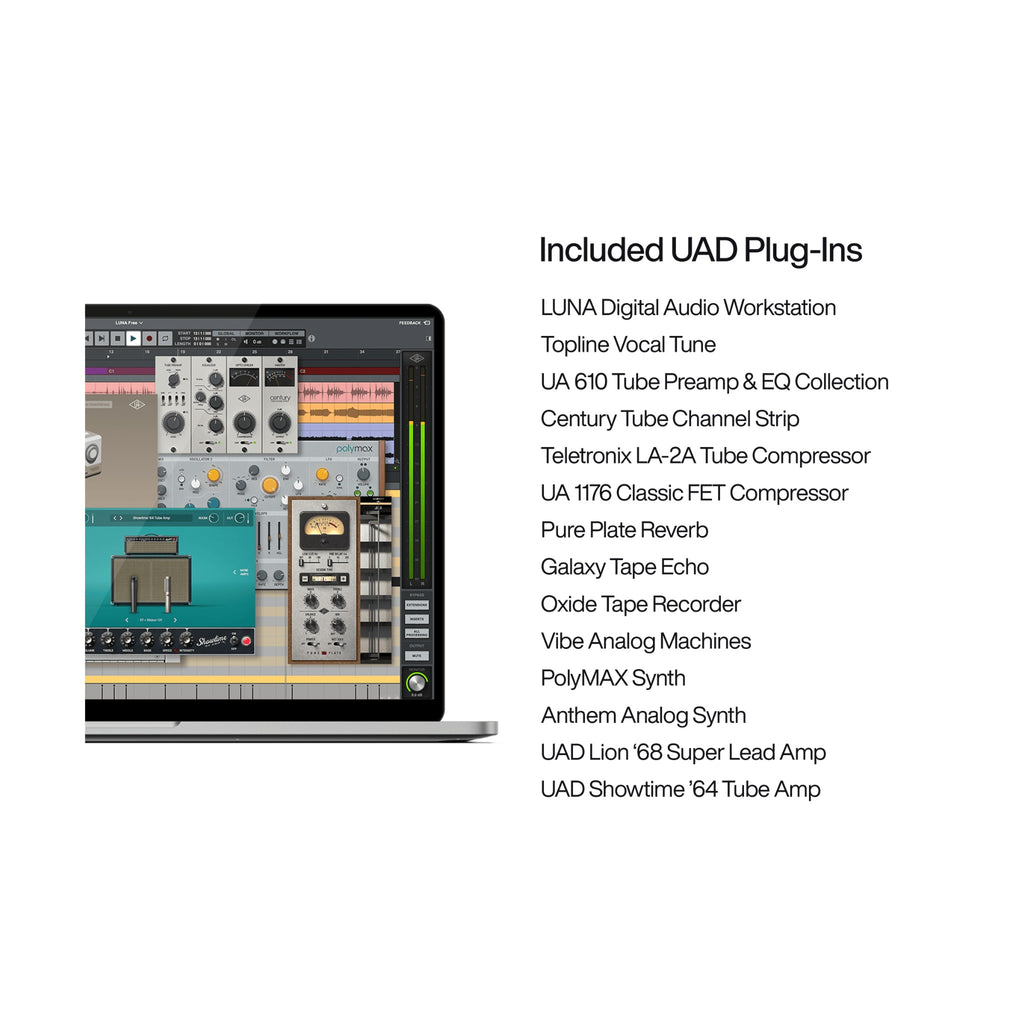

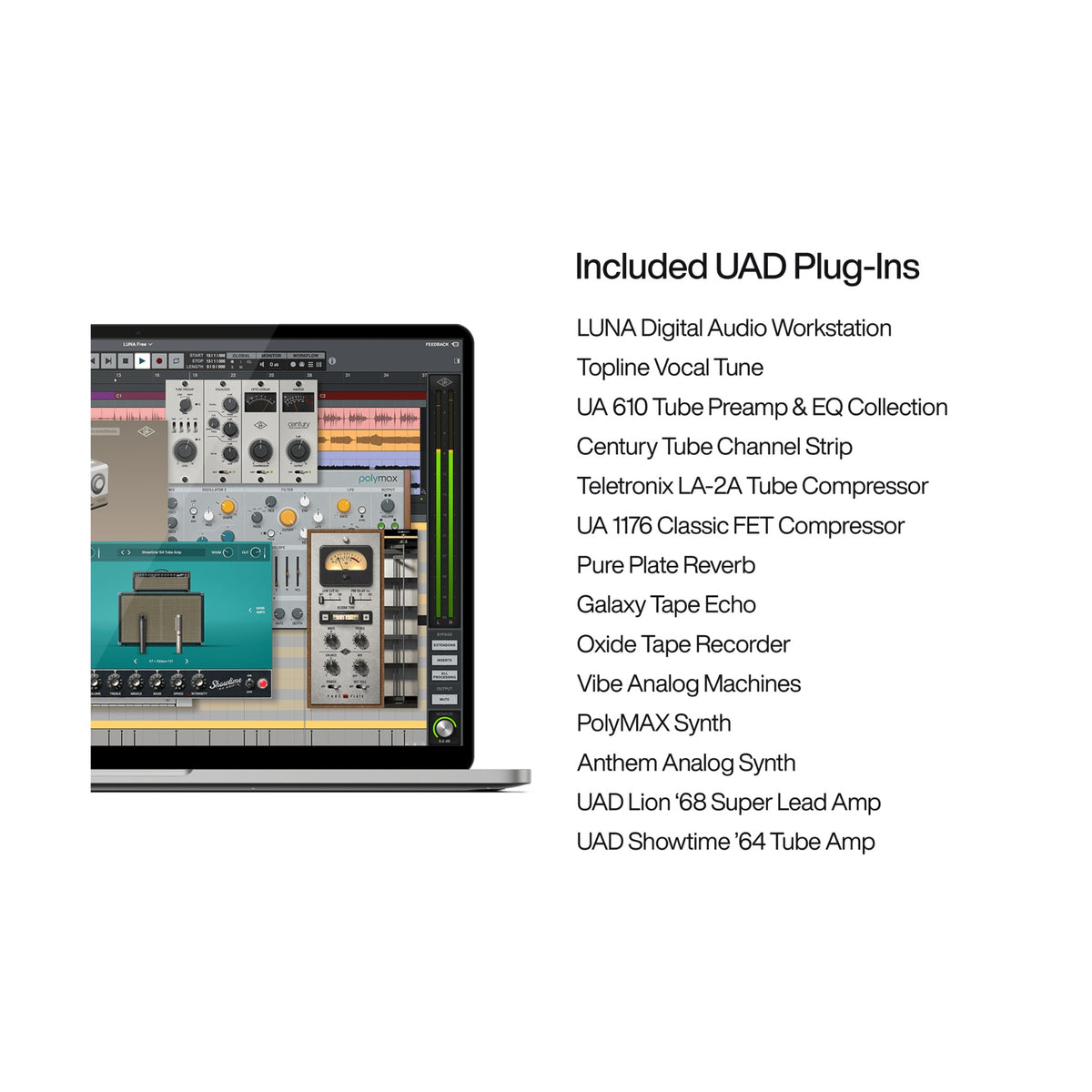

UA plug-ins and apps
| LUNA (DAW) | |
| Topline Vocal Tune | |
| UA 610 Tube Preamp & EQ Collection | |
| Century Tube Channel Strip | |
| Teletronix LA-2A Tube Compressor | |
| UA 1176 Classic FET Compressor | |
| Pure Plate Reverb | |
| Galaxy Tape Echo | |
| Oxide Tape Recorder | |
| Vibe Analog Machines and Vibe Analog Machines Essentials | |
| PolyMAX Synth | |
| Anthem Analog Synth | |
| UAD Lion '68 Super Lead Amp | |
| UAD Showtime '64 Tube Amp |

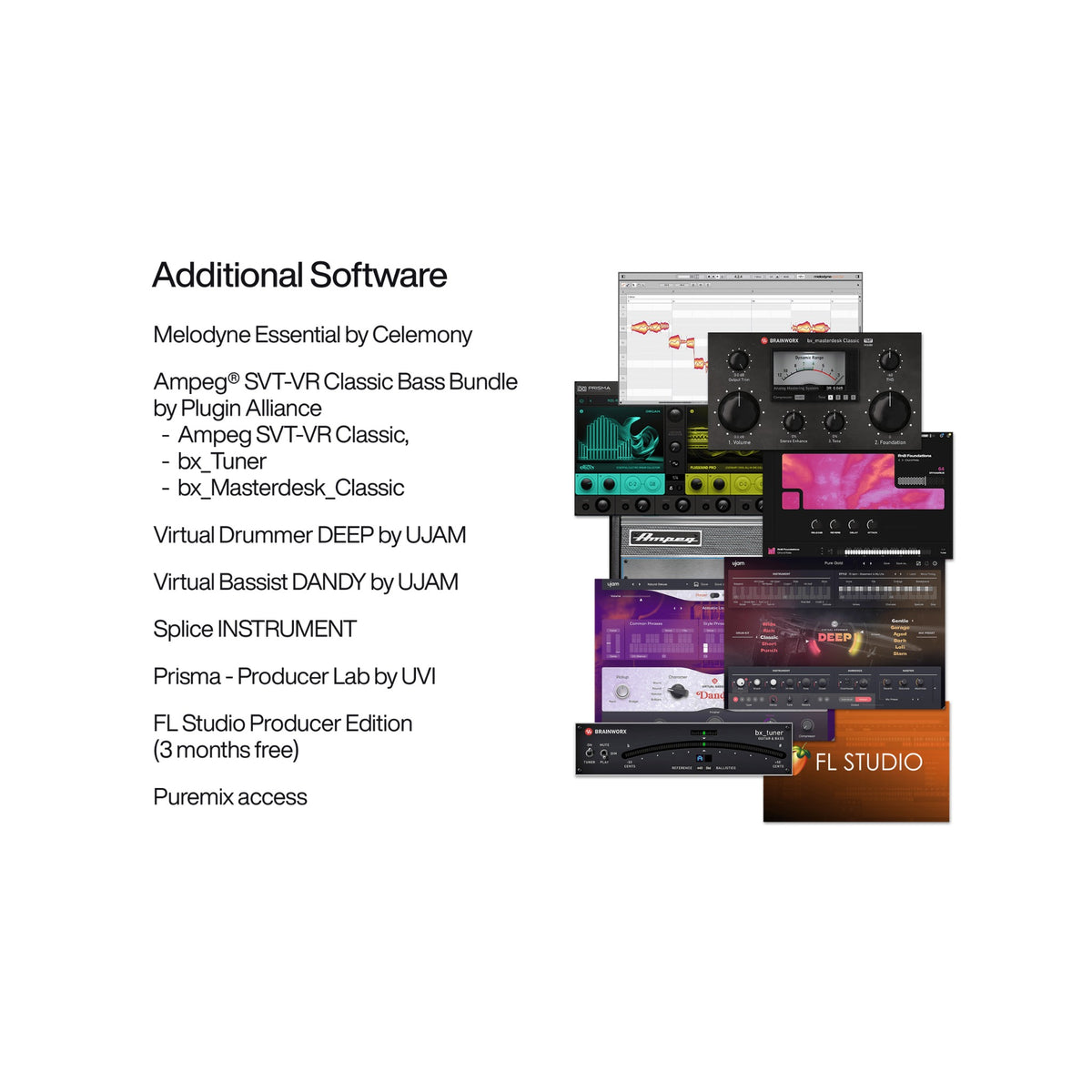

Additional software (partner developers)
| Melodyne Essential by Celemony | |
| Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic) | |
| Virtual Drummer DEEP by UJAM | |
| Virtual Bassist DANDY by UJAM | |
| Splice INSTRUMENT | |
| Prisma - Producer Lab by UVI | |
| FL Studio Producer Edition (3 months free) | |
| Access to exclusive Puremix audio education content |
System requirements
| macOS and Windows | Available USB 2.0 (or higher) port; USB cable (included); Intel, AMD or Apple silicon processor; Windows 10 64-bit or newer; macOS 12 Monterey or newer; internet connection for software downloads |
|---|---|
| iPad and iPhone | iPadOS / iOS 16 or newer. Devices with a Lightning port need an Apple Lightning to USB Camera Adapter. |
| DAW compatibility | All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more |
| Windows driver | Windows uses the ASIO driver, available in the UA Connect app. Mac and iOS/iPadOS need no driver (class-compliant). |
Notes
| Requirements for bus-power vary by model and device. All specifications are subject to change without notice (per the maker). |
