Name: Universal Audio Volt 2 Gen 2 USB Audio Interface
Brand: Universal Audio
SKU: UAD-0082
Price: 27797.00 INR
Availability: InStock

Volt

2-in / 4-out USB-C interface with two Tone Shaping preamps.

Smart Display, Auto-Gain, Clip Protection and 32-bit / 192 kHz conversion.

Buy now Technical data

Overview

Universal Audio Volt 2 Gen 2 USB Audio Interface

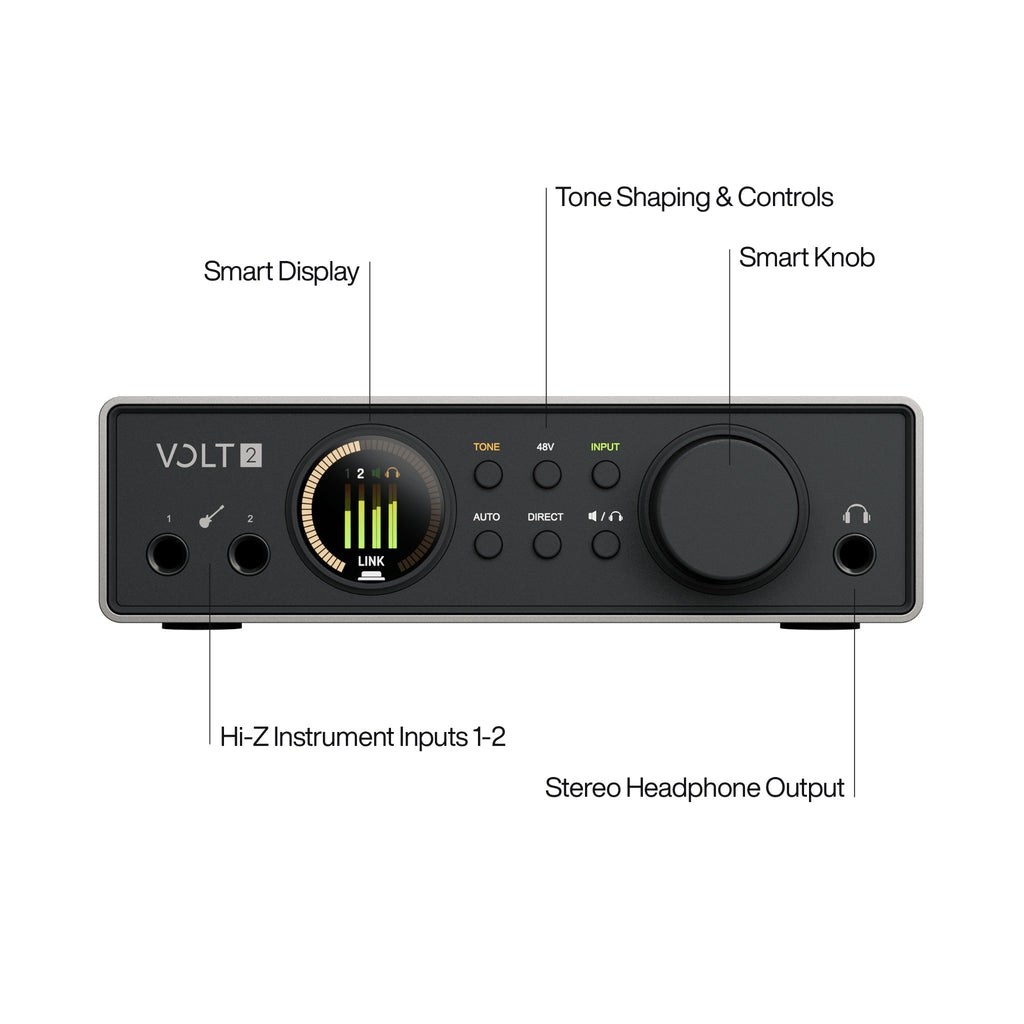

The Universal Audio Volt 2 Gen 2 is a USB audio interface with two Tone Shaping preamps, two front-panel Hi-Z instrument inputs and a Smart Display. It converts audio at up to 32-bit / 192 kHz over USB-C.

Two combo XLR/TRS mic/line inputs, each with independent +48V phantom power, and two Hi-Z instrument inputs support recording two sources at once. Every analog input has Tone Shaping with three modes, Warmth, Focus and Shine, and 60 dB of available gain. The Smart Display shows channel levels and settings, Auto-Gain sets a recording level, and Clip Protection limits unexpected peaks before conversion.

The Volt 2 Gen 2 has two monitor outputs and one stereo headphone output. It is USB bus-powered and class-compliant, so it works with Mac, iPad and iPhone without a driver, and with Windows through the ASIO driver in the UA Connect app. Built-in loopback supports podcasting and streaming. The unit works with UAD Console and LUNA, and the UAD Volt Studio Bundle is included.

Key Features

2-in / 4-out USB audio interface with professional 32-bit / 192 kHz audio conversion
Two Tone Shaping Preamps with 60 dB gain and three character modes — Warmth, Focus, and Shine — for the sound of classic analog mic preamps
Two mic / line inputs with two front-panel Hi-Z instrument inputs for recording your vocals and instruments together, or in stereo
Full-color Smart Display for bright, at-a-glance visual feedback of inputs, levels, and settings
Auto-Gain and Clip Protection for perfect recording levels, every time
Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
Built-in loopback for podcasting, streaming and content creation
Independent 48V phantom power per channel for condenser microphones
USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone
Stylish, rugged construction built to withstand years of use

Universal Audio Volt 2 Gen 2 USB Audio Interface

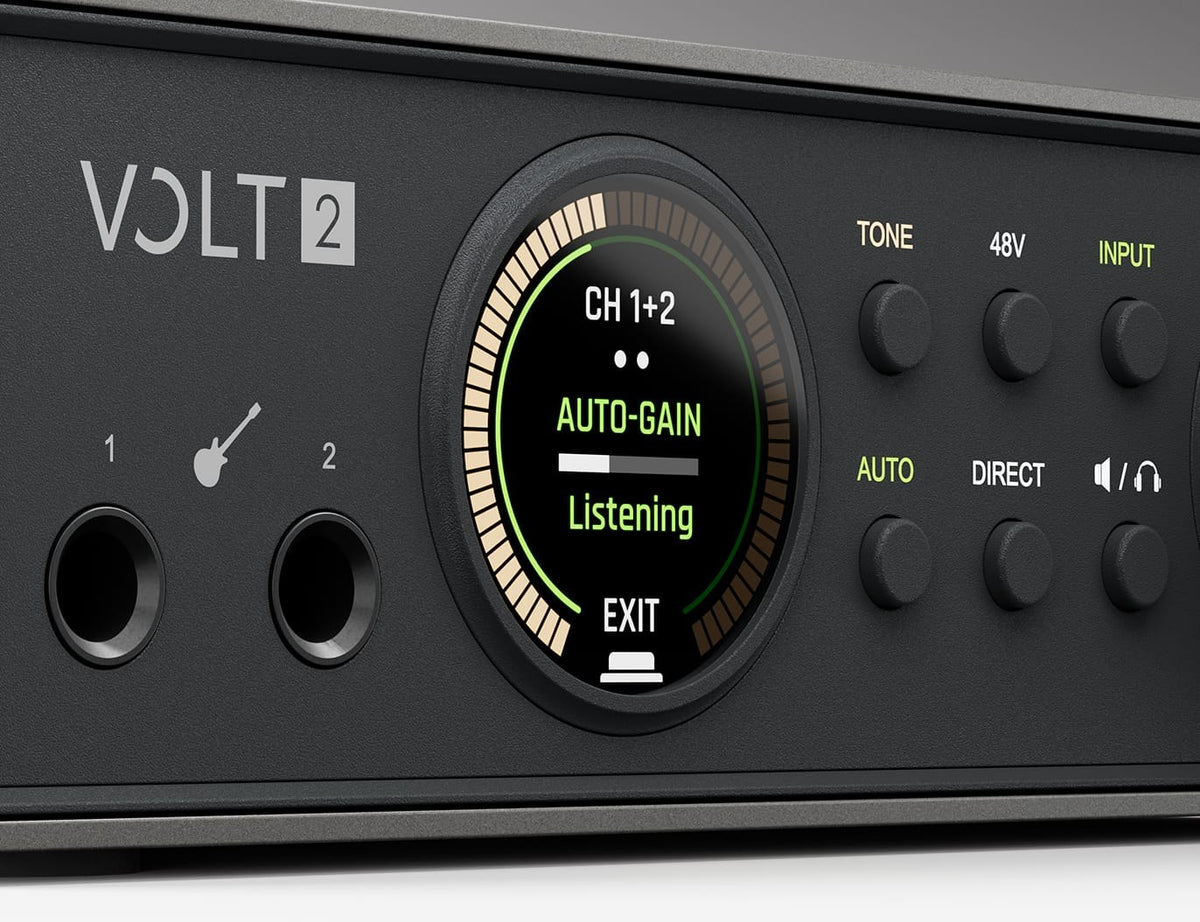

01Set the level

Auto-Gain sets it in about 10 seconds.

Select a channel, press AUTO and play or sing at your loudest level. Clip Protection applies a hardware limiter before the analog-to-digital converters.

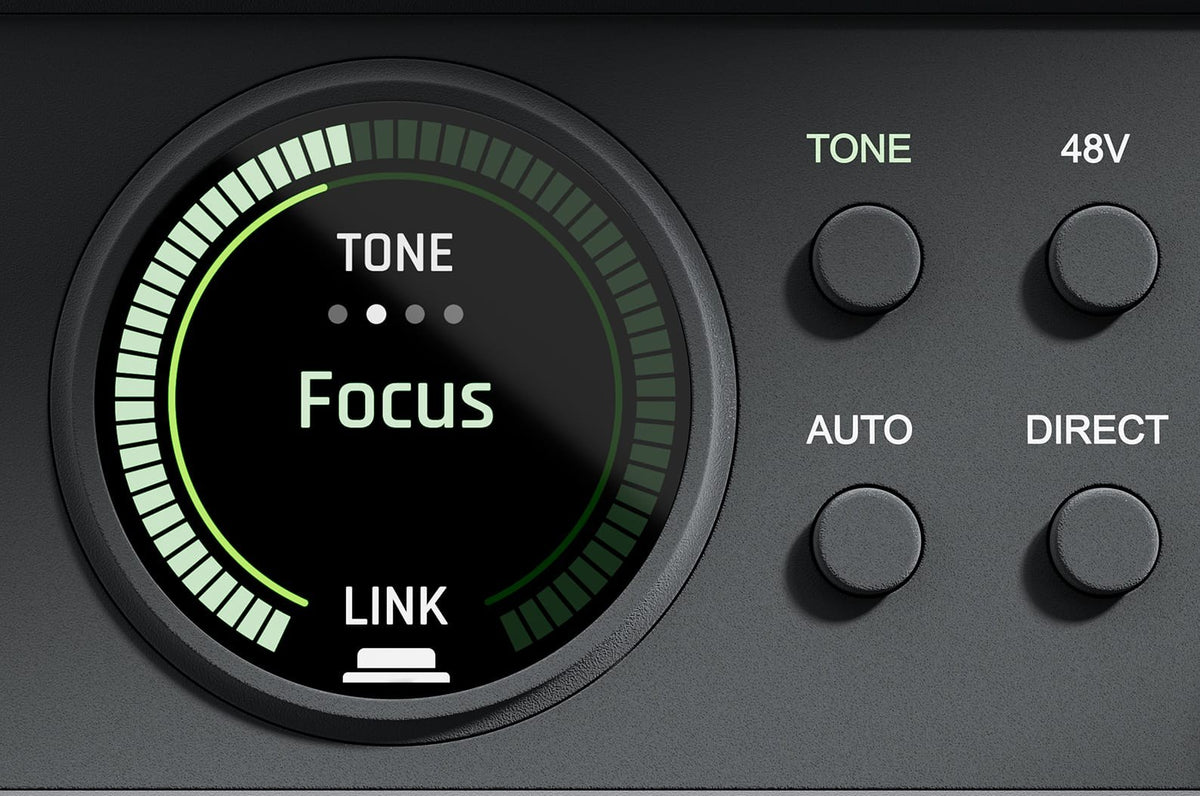

02Choose a tone

Warmth, Focus or Shine.

Each mode applies an EQ curve and harmonic saturation derived from analog hardware, and saturation increases as you add gain.

Technology

Tone Shaping preamps

Three modes. Warmth: tube-style glow with soft transients. Focus: punchy transients with clarity. Shine: a full sound with a silky top end. Each includes an EQ curve and harmonic saturation.

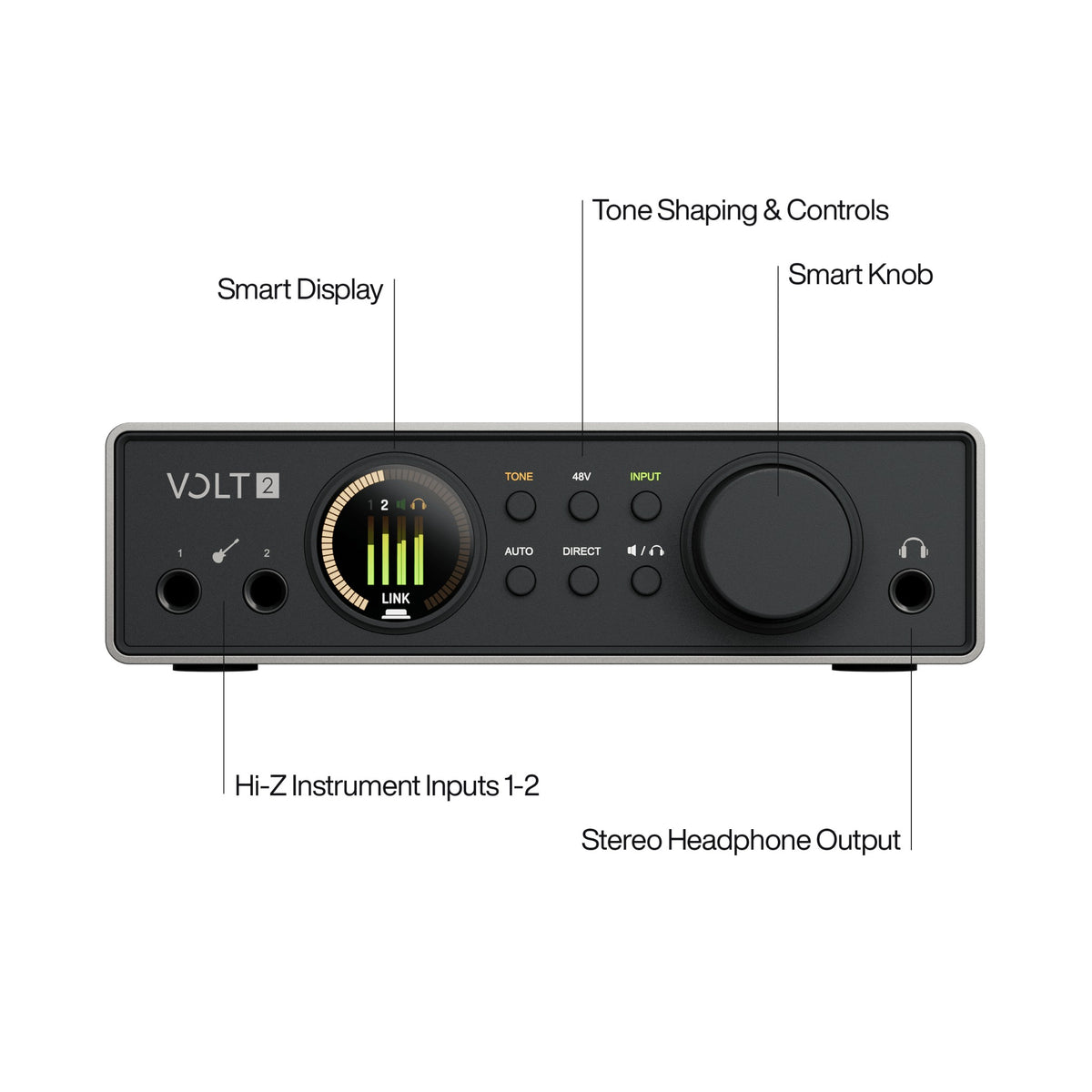

Smart Display, Auto-Gain, Clip Protection

A full-colour display shows inputs, levels and settings. Auto-Gain sets levels; Clip Protection limits peaks before conversion.

Two mic/line and two Hi-Z inputs

Record your vocals and instruments together, or in stereo, with independent 48V phantom power per channel.

Loopback and software

Built-in loopback for podcasting, streaming and content creation, and integration with UAD Console and LUNA.

Technical Data

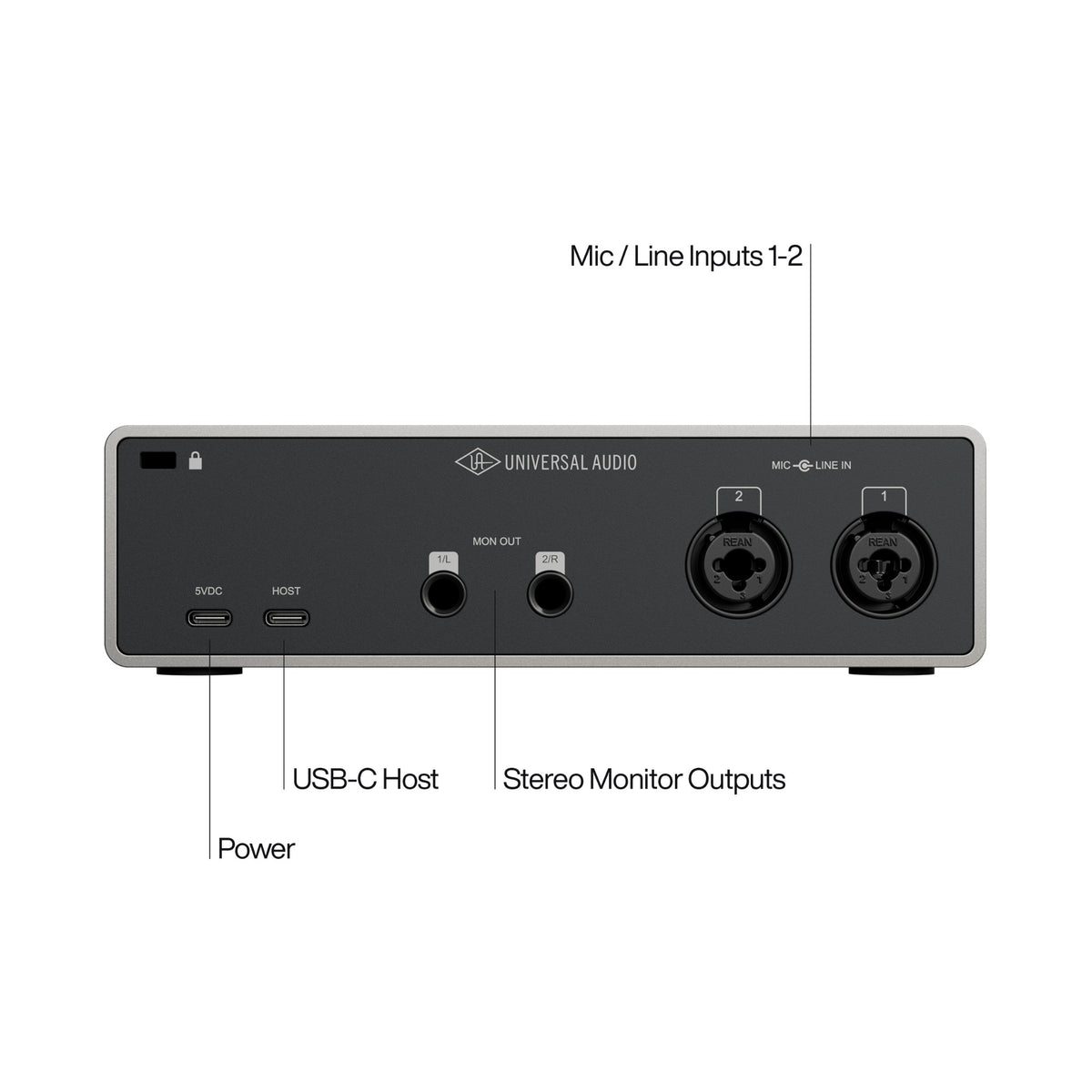

System: I/O Complement

Microphone/Line Preamp Inputs	Two combo XLR/TRS
Instrument Inputs	Two ¼" TS
Monitor Outputs	Two
Headphone Outputs	One stereo
USB (Type-C connectors)	One USB 2.0 host port (bus-power capable) · One USB 5VDC power port

System: A/D – D/A Conversion

Supported Sample Rates (kHz)	44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample	32
Simultaneous A/D Conversion	Two channels
Simultaneous D/A Conversion	Four channels (2 main, 1 stereo headphone)

Analog I/O: Mic, Line, Instrument Inputs (AC Coupled)

Available Gain	60 dB
Tone Shaping (selectable per channel)	Warmth, Focus, Shine

Analog I/O: Microphone Inputs

Frequency Response	20 Hz to 20 kHz, ±0.08 dB
Dynamic Range (A–weighted)	119 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003 %)
Maximum Input Level	14 dBu
Input Impedance	2 Kilohms
Phantom Power	+48V (switchable per channel)
Connector Type	XLR Female, pin 2 positive

Analog I/O: Instrument Inputs

Frequency Response	20 Hz to 20 kHz, ±0.02 dB
Dynamic Range (A–weighted)	116 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %)
Maximum Input Level	13 dBu
Input Impedance	1 Megohms
Connector Type	¼" TS unbalanced

Analog I/O: Line Inputs

Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	119 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004 %)
Maximum Input Level	22 dBu
Input Impedance	10 Kilohms
Connector Type	¼" TRS balanced or TS unbalanced

Analog I/O: Monitor Outputs (DC Coupled)

Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	126 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003 %)
Maximum Output Level	20.2 dBu
Output Impedance	200 Ohms
Connector Type	¼" TRS balanced

Analog I/O: Stereo Headphone Outputs (DC Coupled)

Frequency Response	20 Hz to 20 kHz, ±0.08 dB
Dynamic Range (300 Ohms, A–weighted)	116 dB
THD + Noise (1 kHz @ -1 dBFS, 300 Ohms)	-103 dB (0.0007 %)
Maximum Output Power into 32 Ohms	45 mW per channel
Maximum Output Power into 300 Ohms	24 mW per channel
Connector Type	¼" TRS Stereo

Electrical

DC Input Connector Type	USB-C
DC Requirements	5VDC (bus-power capable via Host port)
Power Consumption (@5VDC)	3.4 W typical, 4.9 W maximum

Environmental

Ambient Temperature Range	32° to 104° F (0° to 40° C)

Mechanical: Dimensions

Chassis (including knobs)	Width x Depth x Height 7.4 x 4.9 x 2 in (18,7 x 12,5 x 5,1 cm)
Shipping Box	Width x Depth x Height 9.1 x 7.3 x 3.1 in (23,0 x 18,5 x 8,0 cm)

Mechanical: Weight

Shipping Weight (with box & accessories): 2.1 lbs (0.9 kg)
Weight (bare unit)	1.3 lbs (0.6 kg)

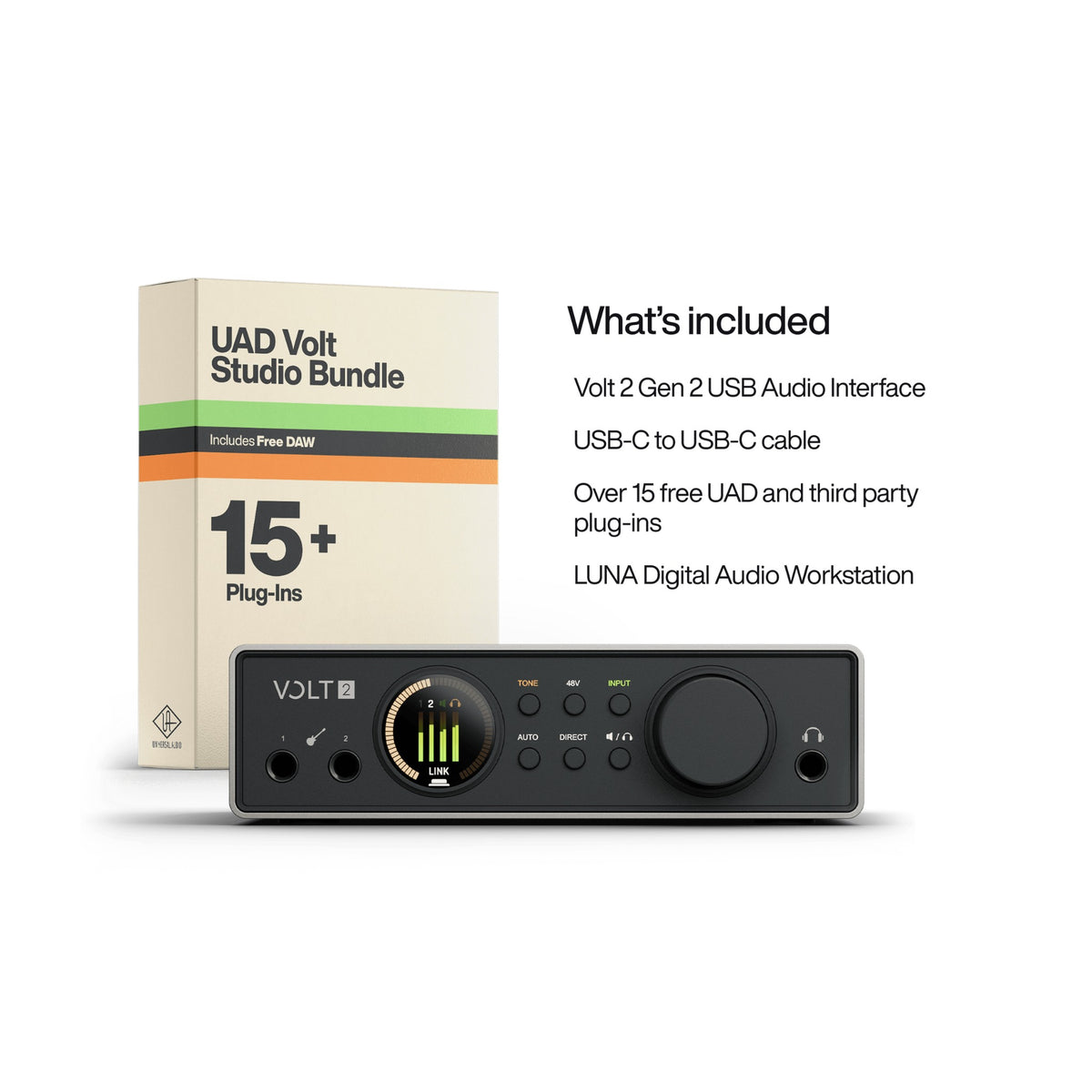

What's in the box

Volt 2 Gen 2 USB audio interface
One-meter USB cable (Type-C to Type-C)
Important safety instructions
End-user license agreement

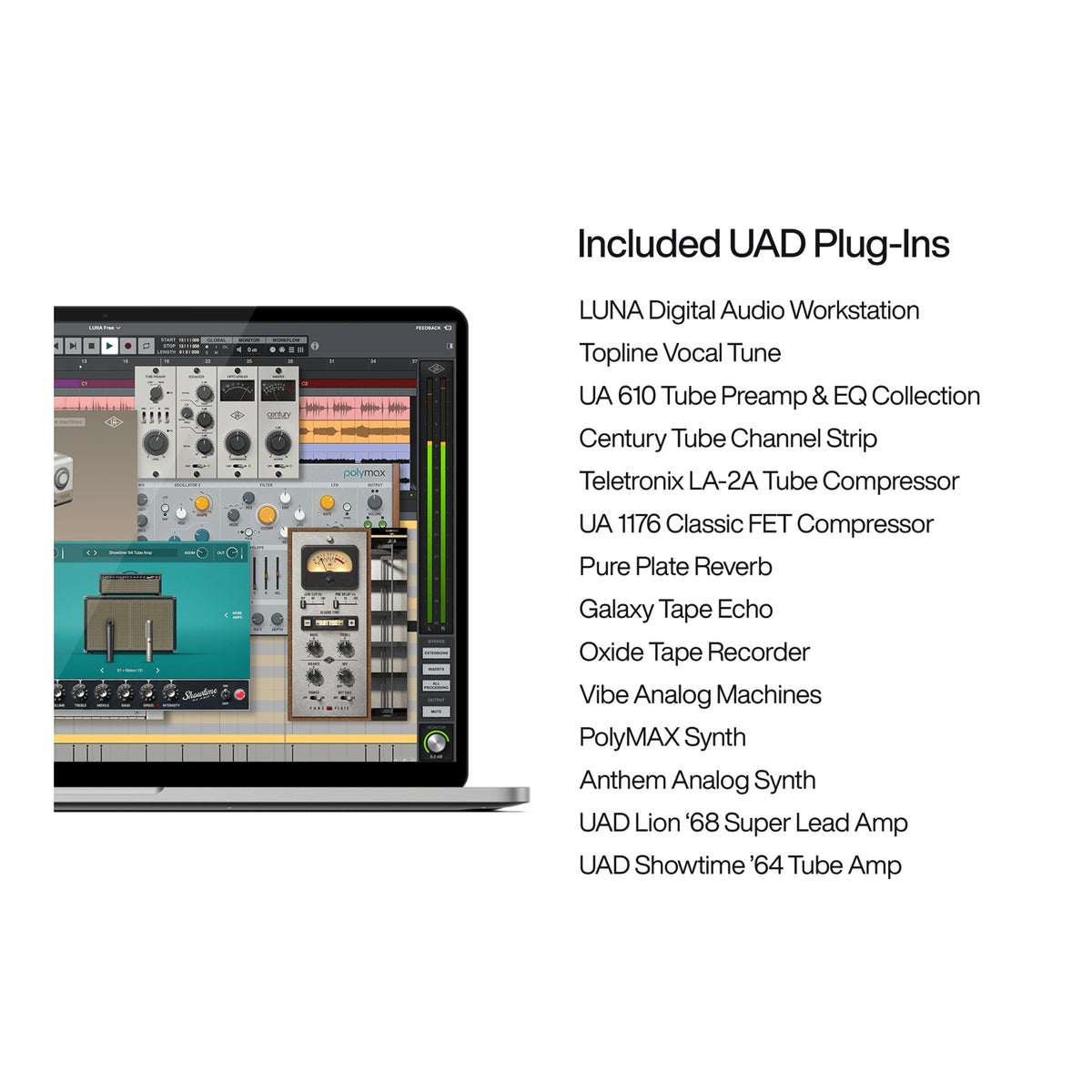

UA plug-ins and apps

LUNA (DAW)
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines and Vibe Analog Machines Essentials
PolyMAX Synth
Anthem Analog Synth
UAD Lion '68 Super Lead Amp
UAD Showtime '64 Tube Amp

Additional software (partner developers)

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance (Ampeg SVT-VR Classic, bx_Tuner, bx_Masterdesk_Classic)
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition (3 months free)
Access to exclusive Puremix audio education content

System requirements

macOS and Windows	Available USB 2.0 (or higher) port; USB cable (included); Intel, AMD or Apple silicon processor; Windows 10 64-bit or newer; macOS 12 Monterey or newer; internet connection for software downloads
iPad and iPhone	iPadOS / iOS 16 or newer. Devices with a Lightning port need an Apple Lightning to USB Camera Adapter.
DAW compatibility	All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools and more
Windows driver	Windows uses the ASIO driver, available in the UA Connect app. Mac and iOS/iPadOS need no driver (class-compliant).

Notes

Requirements for bus-power vary by model and device. All specifications are subject to change without notice (per the maker).
