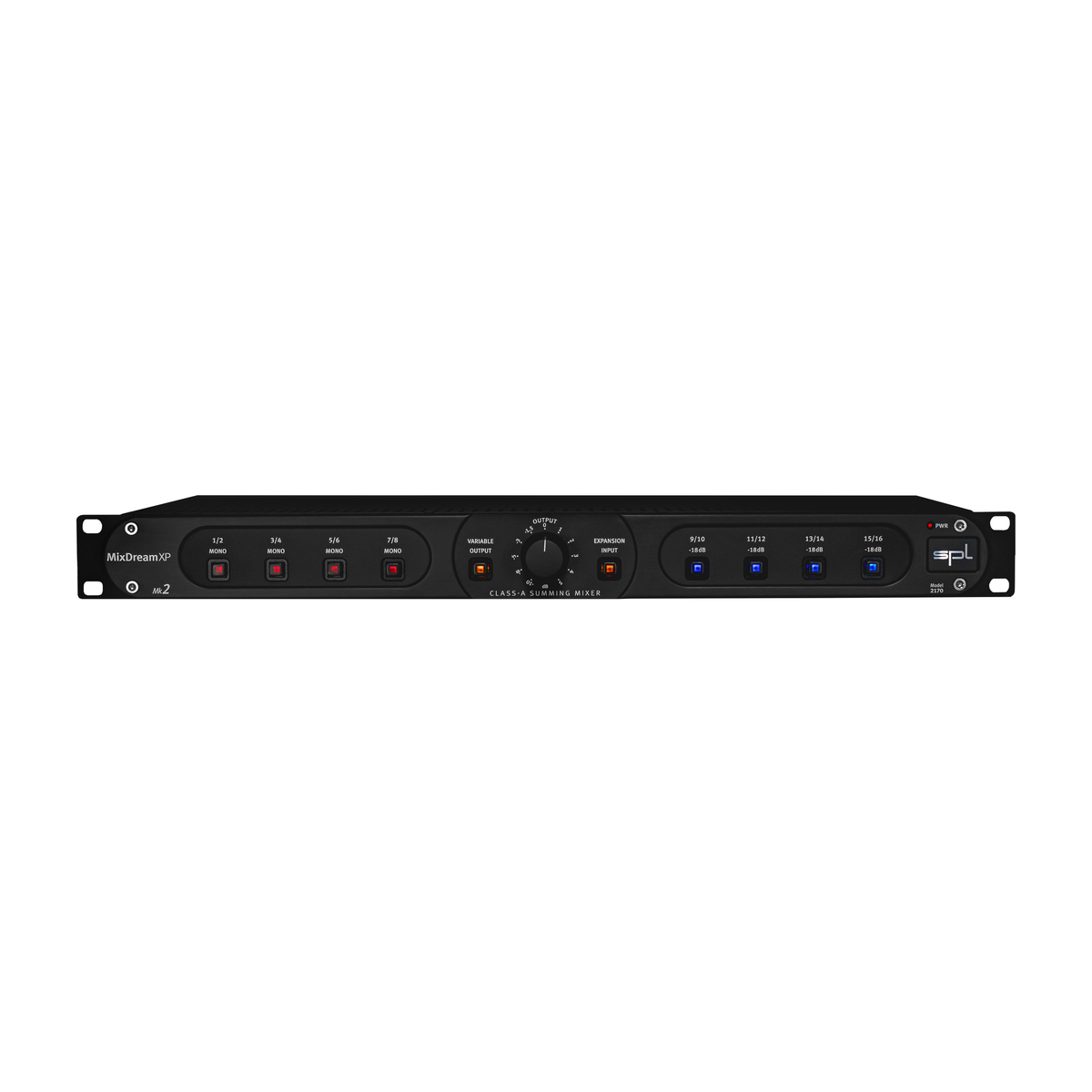

SPL MixDream XP MK2 - Packshot 1
  • SPL MixDream XP MK2 - Packshot 1

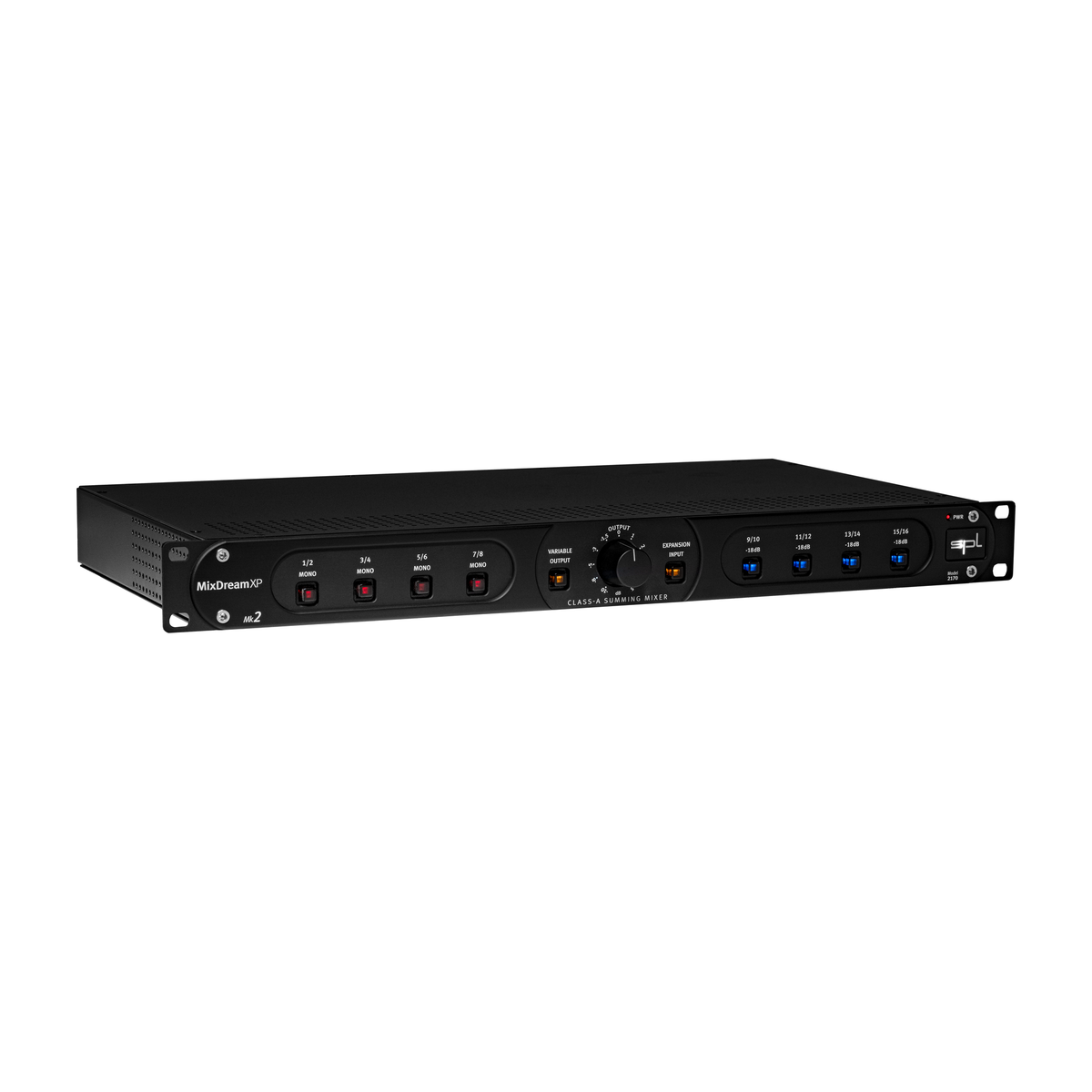

  • SPL MixDream XP MK2 - Packshot 2

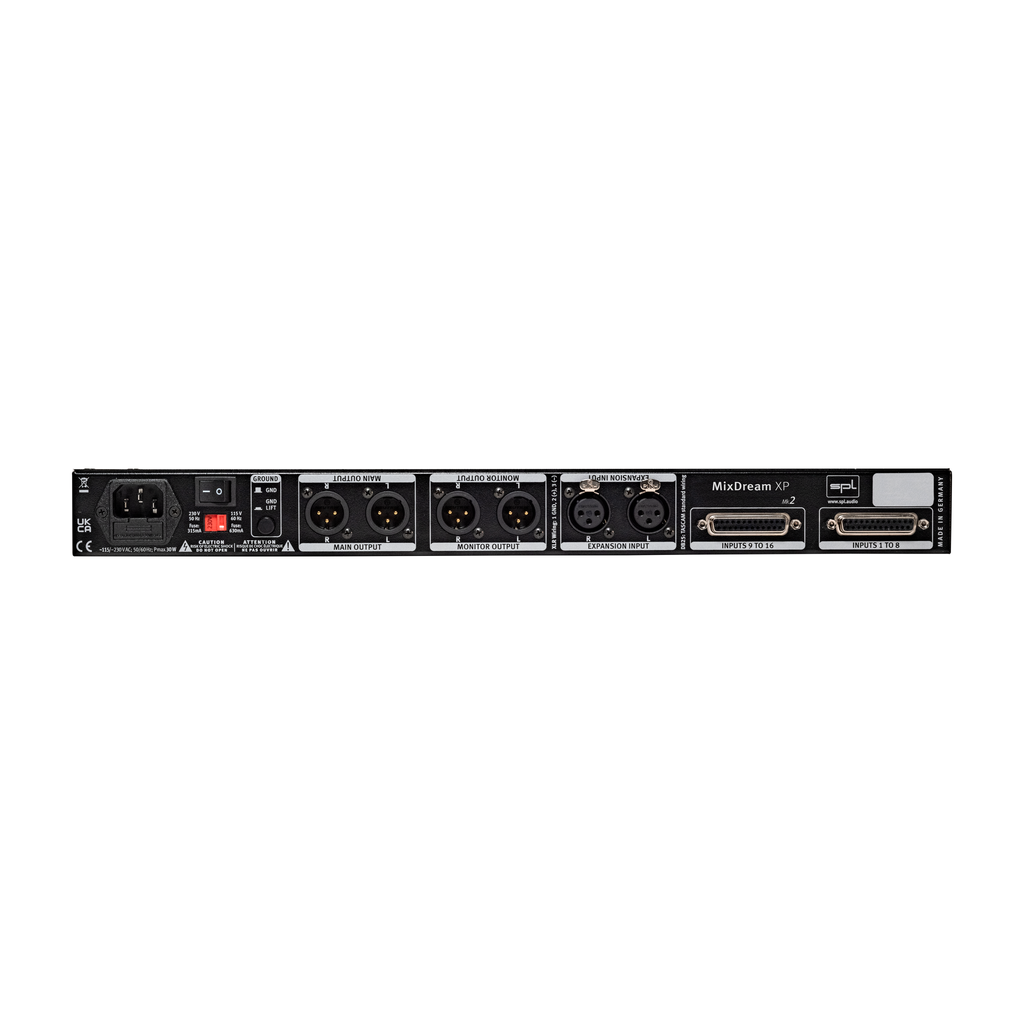

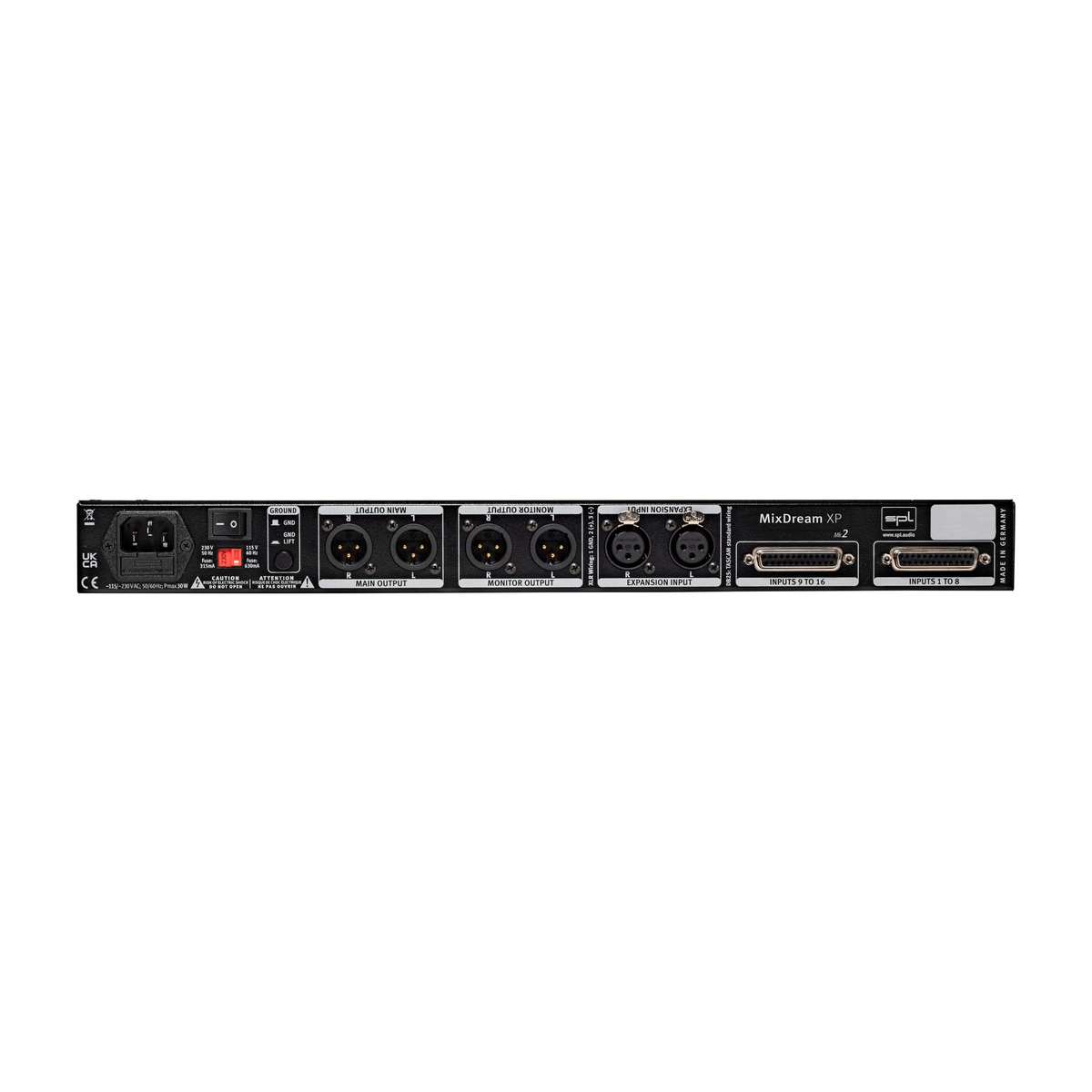

  • SPL MixDream XP MK2 - Packshot 3
SPL MixDream XP MK2 Analog 16-to-2 Summing Mixer

SPL MixDream XP MK2 Analog 16-to-2 Summing Mixer

Rs. 1,84,200.00
Rs. 1,84,200.00
Taxes included. Shipping calculated at checkout.
SPL-0044

Get the best deal before you check out!

It is always a good idea to call and check for product availability and ongoing offers and discounts.

+91 844 622 6222 WhatsApp us

SPL MixDream XP MK2 Analog 16-to-2 Summing Mixer
  • Genuine Product
  • With GST Invoice
  • After-sales Support
  • Non-returnable

    Overview

    The puristic summing mixer with Class A technology.

    As an analog 16-in-2 Class A summing device, MixDream XP Mk2 offers impressive sound quality and brings together single tracks in a musical way. The spatial depth of the stereo stage and the harmonic coherency of the summed signals make mixing through an analog summing device a very special experience.

    The Mk2 generation of the MixDream XP offers the same outstanding audio quality as its predecessor thanks to the internal audio operating voltage of +/-30 V. In addition to the new design and an even better feel, the MixDream XP Mk2 offers another new feature: the individually switchable -18 dB level attenuation for the last four stereo channels. This is how the analog summing gets the best out of every mix!

    Specifications

    Analog inputs & output; XLR & DB25 (balanced)

    • Maximum input & output gain: 28 dBu
    • Input impedance: 10 kΩ
    • Output impedance: 82 Ω
    • Common mode rejection (1 kHz, +10 dBu): <70 dB
    • Frequency range: 10 Hz – 200 kHz
    • THD + N (A-weighted, all channels active): -95 dBu
    • Noise (A-weighted, all channels active): -97 dBu
    • Crosstalk (1 kHz, +10dBu): -90 dB
    • Dynamic range: 125 dB

    Internal Linear Power Supply with Shielded Toroidal Transformer

    • Operating voltage for analog audio: +/-30 V
    • Operating voltage for relays and LEDs: +12 V

    Mains Power Supply

    • Mains voltage 230 V (selectable): 230 V AC / 50; 115 V AC / 60 Hz
    • Fuse for 230 V: T 315 mA
    • Fuse for 115 V: T 630 mA
    • Power consumption: max. 30 VA

    Dimensions & Weight

    • W x H x D (width x height x depth): 482 x 44 x 237 mm / 19 x 1.73 x 9.33 inch
    • Unit weight: 3.55 kg / 7.83 lbs
    • Shipping weight (incl. packaging): 4.9 kg / 10.8 lbs
