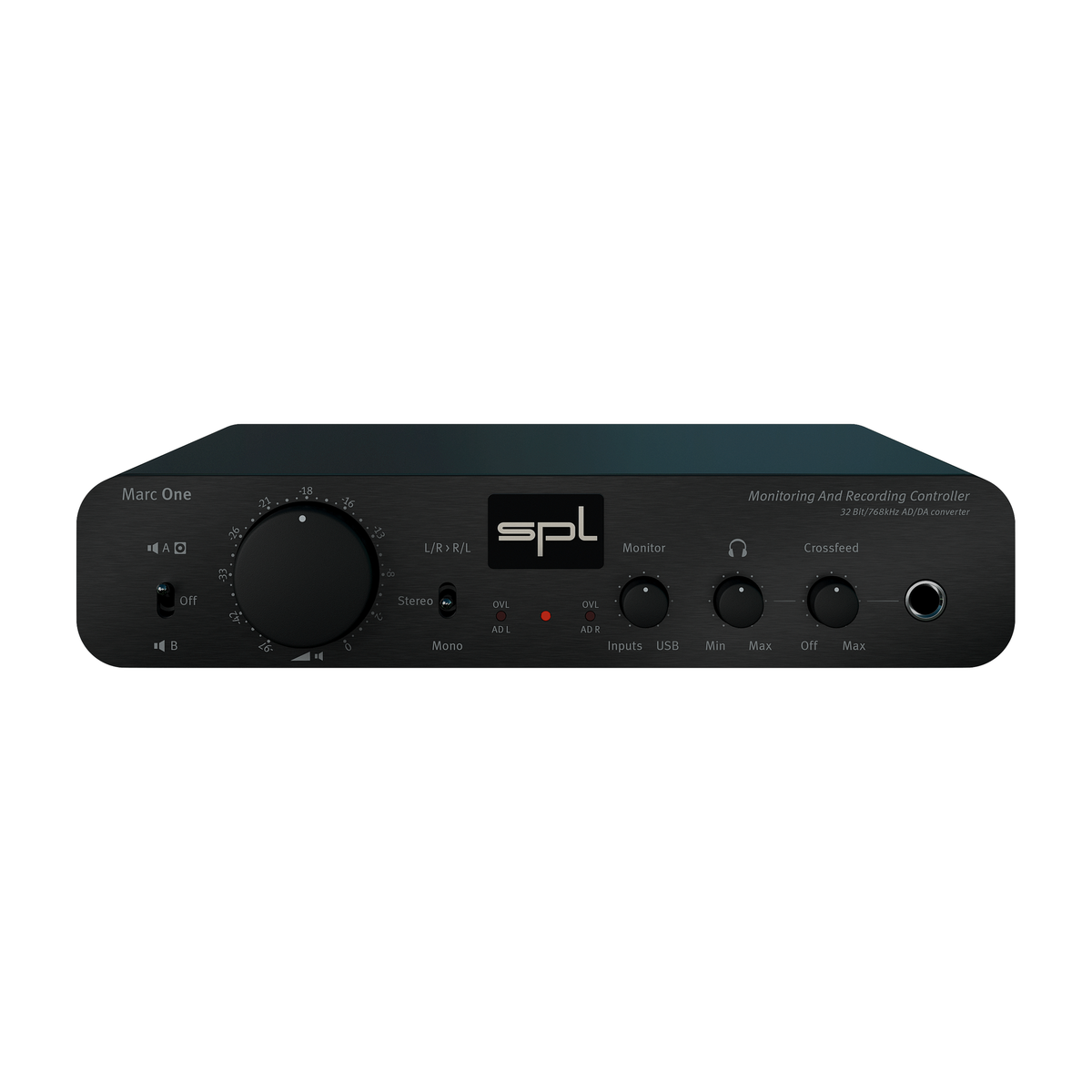

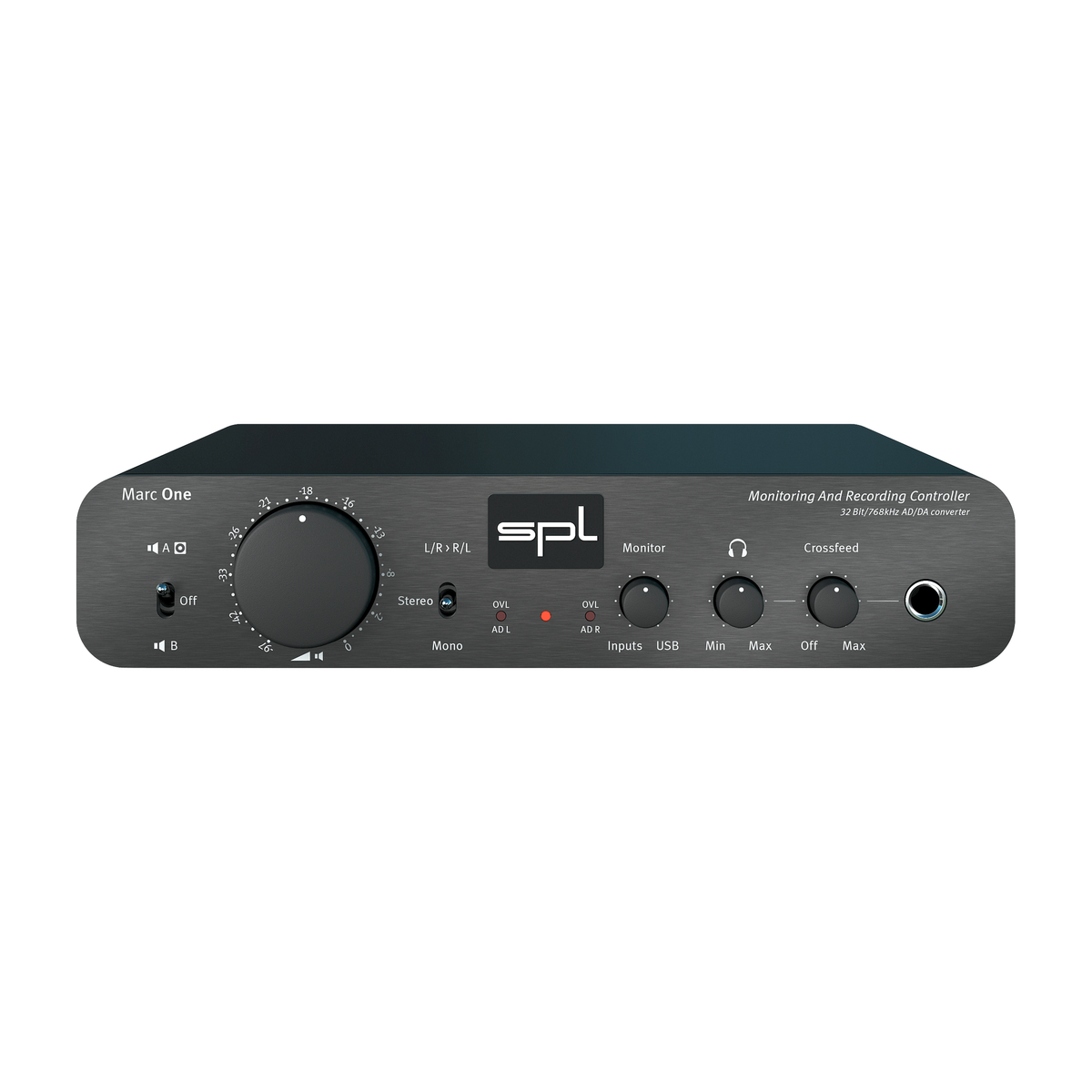

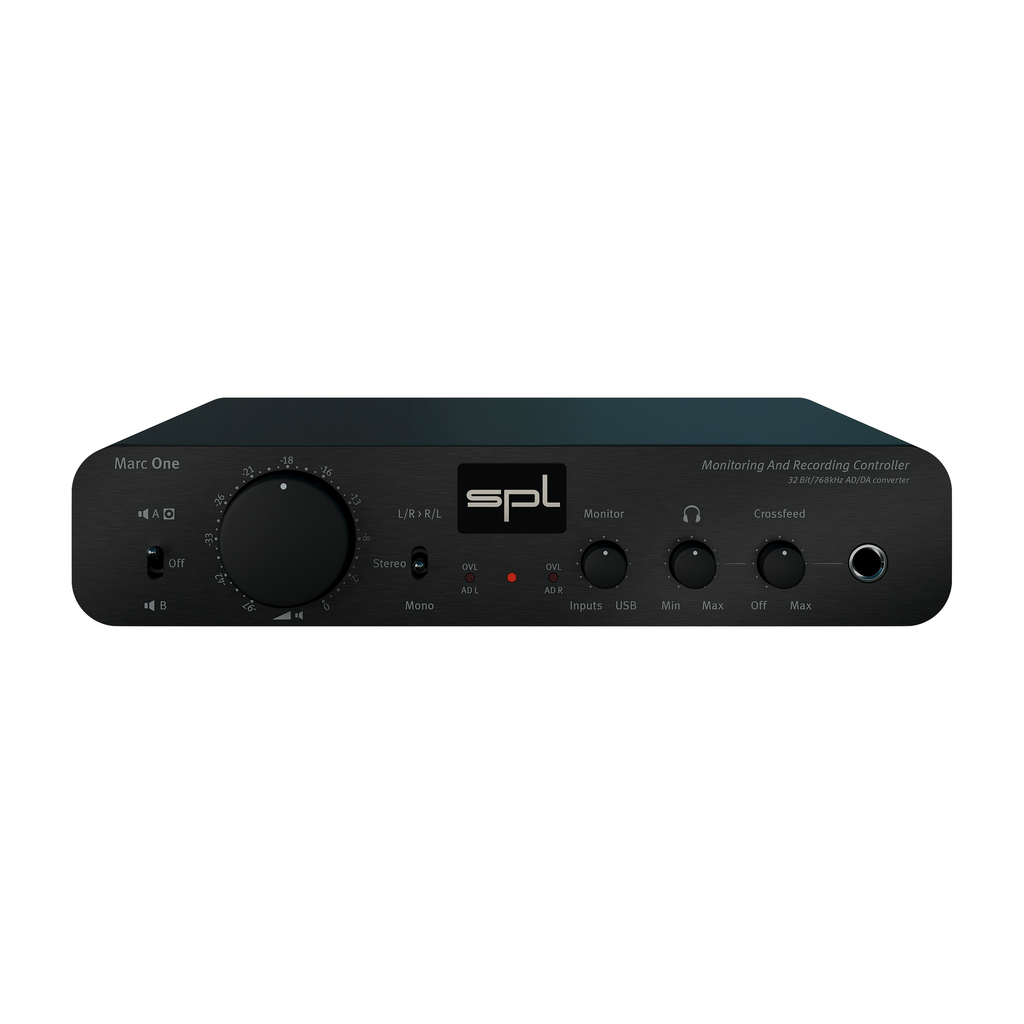

SPL Marc One Monitoring and Recording Controller

Rs. 1,29,310.00

Taxes included. Shipping calculated at checkout.

SPL-0004

Genuine Product
With GST Invoice
After-sales Support
Non-returnable

Overview

The Monitor And Recording Controller with innovative features and a 32-bit AD/DA converter. A monitor controller with which you can also record. And both in impressive sound quality.

Specifications

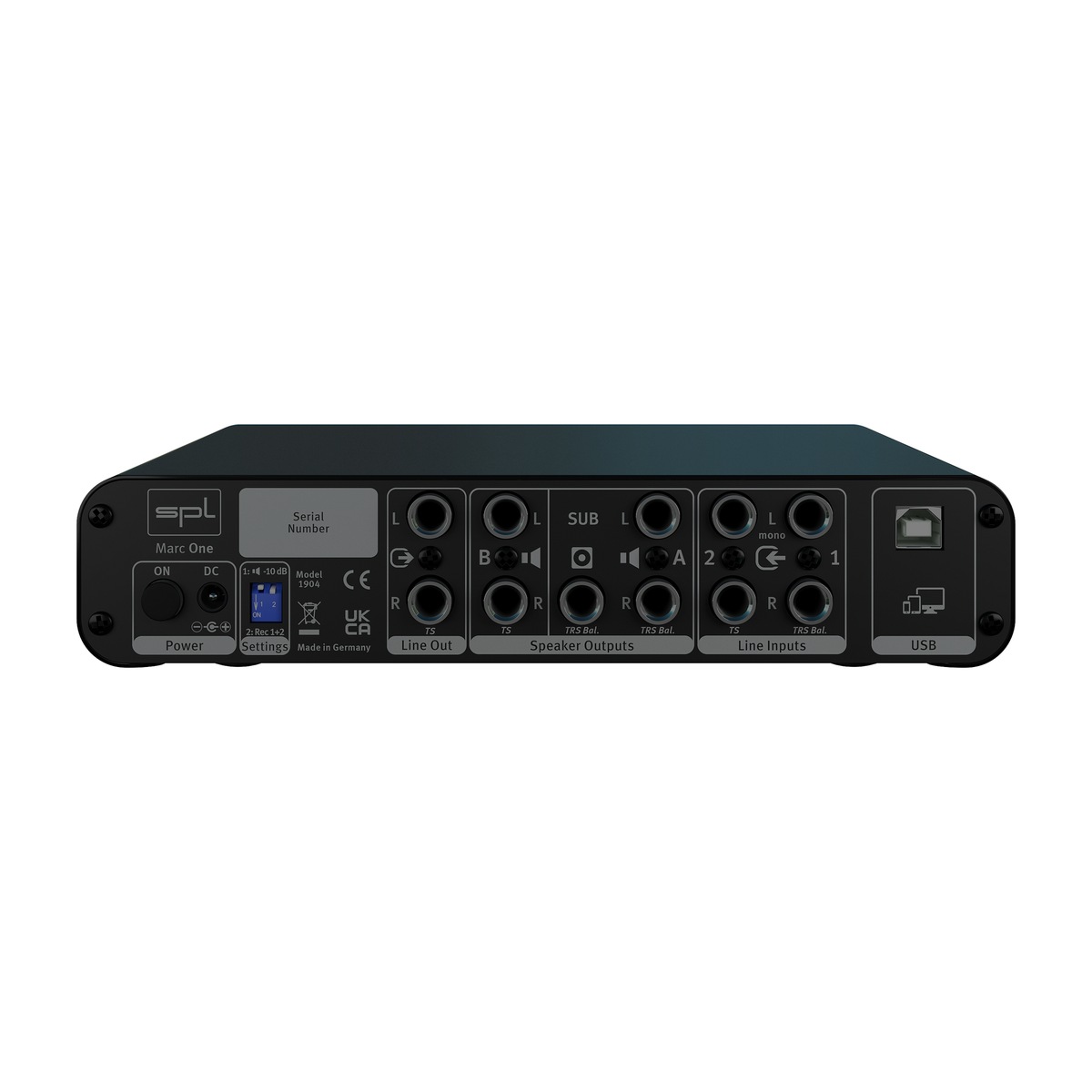

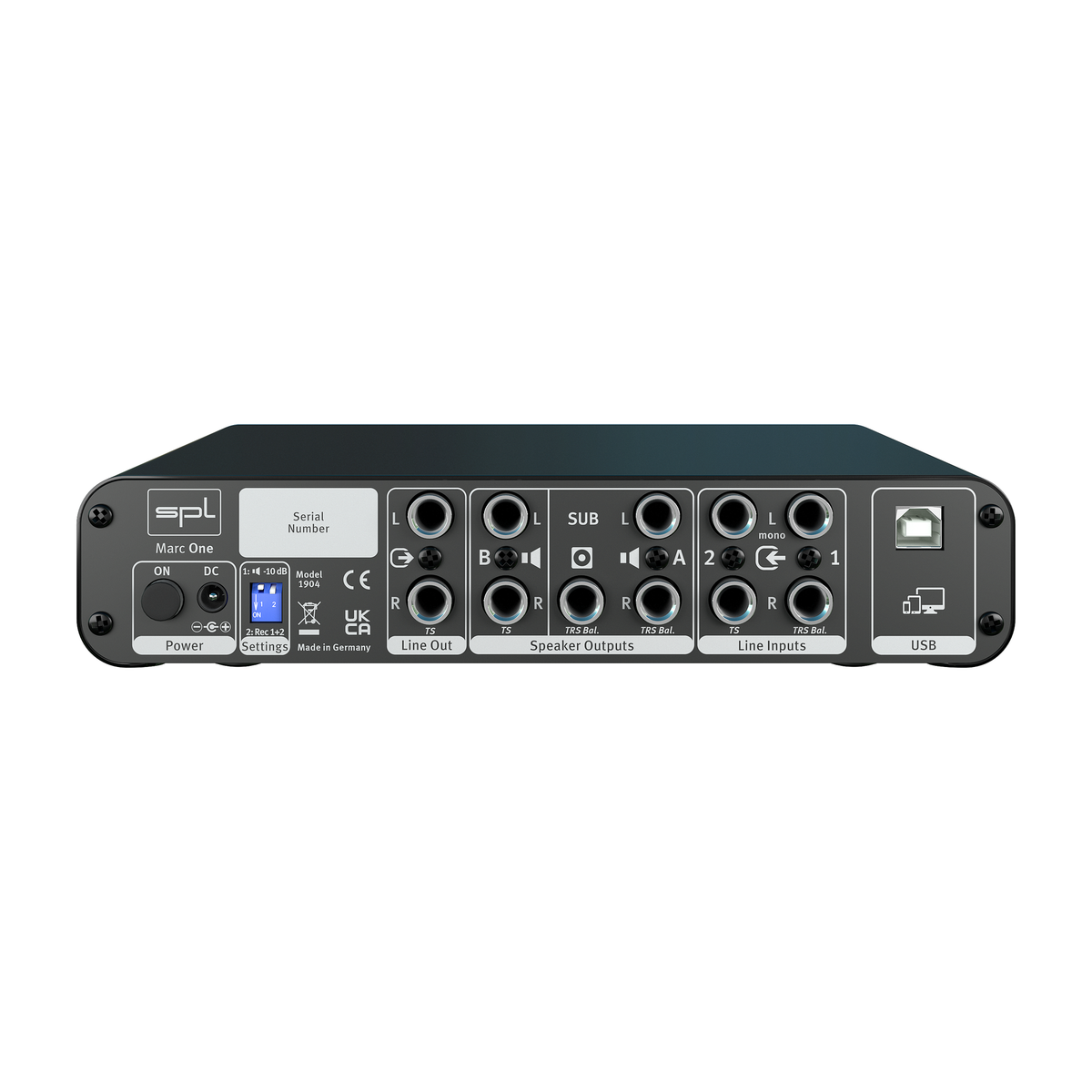

Analog inputs & outputs; 6.35 mm (1/4") TRS Jacks

Input gain (max): +22.5 dBu
Line Input 1 (balanced): Input impedance: 20 kΩ
Line Input 1: Common mode rejection: < 60 dB
Line Input 2 (unbalanced): Input impedance: 10 kΩ
Output gain (max.): Speaker Outputs (600 Ω): +22 dBu
Line Output (unbalanced): Output impedance: 75 Ω
Speaker Output 1 (balanced): Output impedance: 150 Ω
Sub Output Low Filter: none (full range)
Sub Output (balanced): Output impedance: 150 Ω
Speaker Output 2 (unbalanced): Output impedance: 75 Ω
Frequency range (-3dB): 10 Hz - 200 kHz
Dynamic range: 121.5 dB
Noise (A-weighted, 600 Ω load): -99 dBu
Total harmonic distortion (0 dBu, 1 kHz): 0.002 %
Crosstalk (1 kHz): < 75 dB
Fade-out attenuation: -93 dB

USB, 32-Bit AD/DA

USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Noise (A-weighted, 44.1/48 kHz sample rate): -113 dBFS
Dynamic range (44,1/48 kHz sample rate): 113 dB
THD + N (-1 dBFS, 10 Hz – 22 kHz): 0.0012 %

Headphones Output; 6.35 mm (1/4") TRS Jack

Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 20 Ω
Noise (A-weighted, 600 Ω): -97 dBu
THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω): 0.002 %
THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω): 0.013 %
Max output power (1 kHz, 600 Ω): 2 x 190 mW
Max output power (1 kHz, 250 Ω): 2 x 330 mW
Max output power (1 kHz, 47 Ω): 2 x 400 mW
Fade-out attenuation (600 Ω): -99 dB
Crosstalk (1 kHz, 600 Ω): -75 dB
Dynamic range: 117

Internal Power Supply

Operating voltage for analog audio: +/- 17 V
Operating voltage for headphone amplifier: +/- 19 V
Operating voltage for relays and LEDs: +12 V
Operating voltage for digital audio: +3.3 V, +5 V

External Power Supply

AC/DC switching adaptor: Mean Well GE18/12-SC
DC plug: (+) pin 2.1mm; (-) outside ring 5.5mm
Input: 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output: 12 V DC; 1.5 A

Dimensions & Weight

W x H x D (width x height incl. feet x depth): 210 x 49.6 x 220 mm / 8.23 x 1.95 x 8.66 inch
Unit weight: 1.55 kg / 3.4 lbs
Shipping weight (incl. packaging): 2 kg / 4.4 lbs
