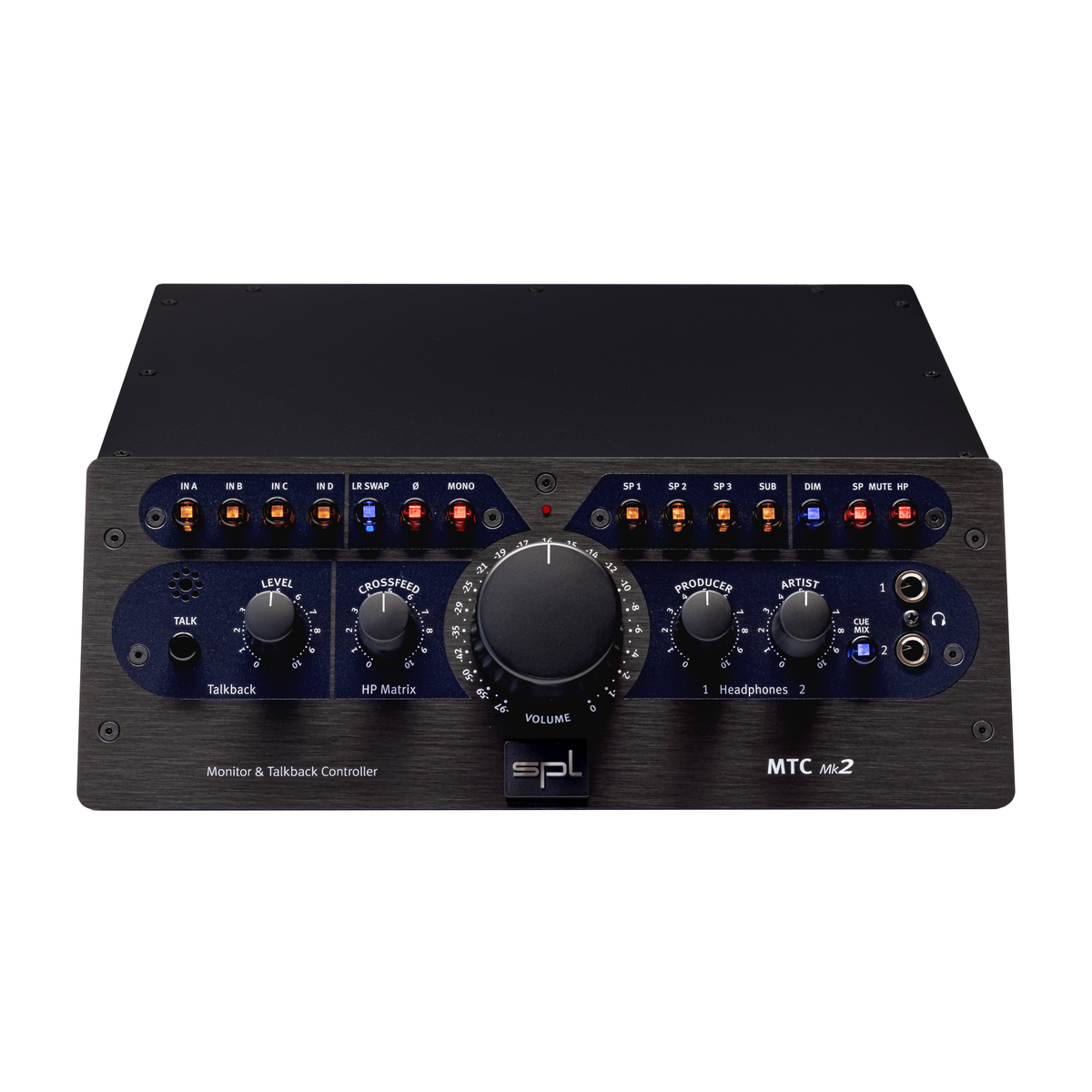

SPL MTC MK2 Monitor and Talkback Controller
Pickup currently not available
- Genuine Product
- With GST Invoice
- After-sales Support
- Non-returnable
Overview
The next generation Monitor & Talkback Controller – studio standard redefined.
This classic has been updated with new features adapting it to the demands of modern music production environments.
Advanced source and speaker selection, multiple monitoring modes, an integrated premium talkback system, headphone amplifiers with Phonitor Matrix, an additional input for a dedicated artist mix, and an internal audio operating voltage of +/-18 volts make the MTC Mk2 once again the professional studio standard among monitor controllers.
Specifications

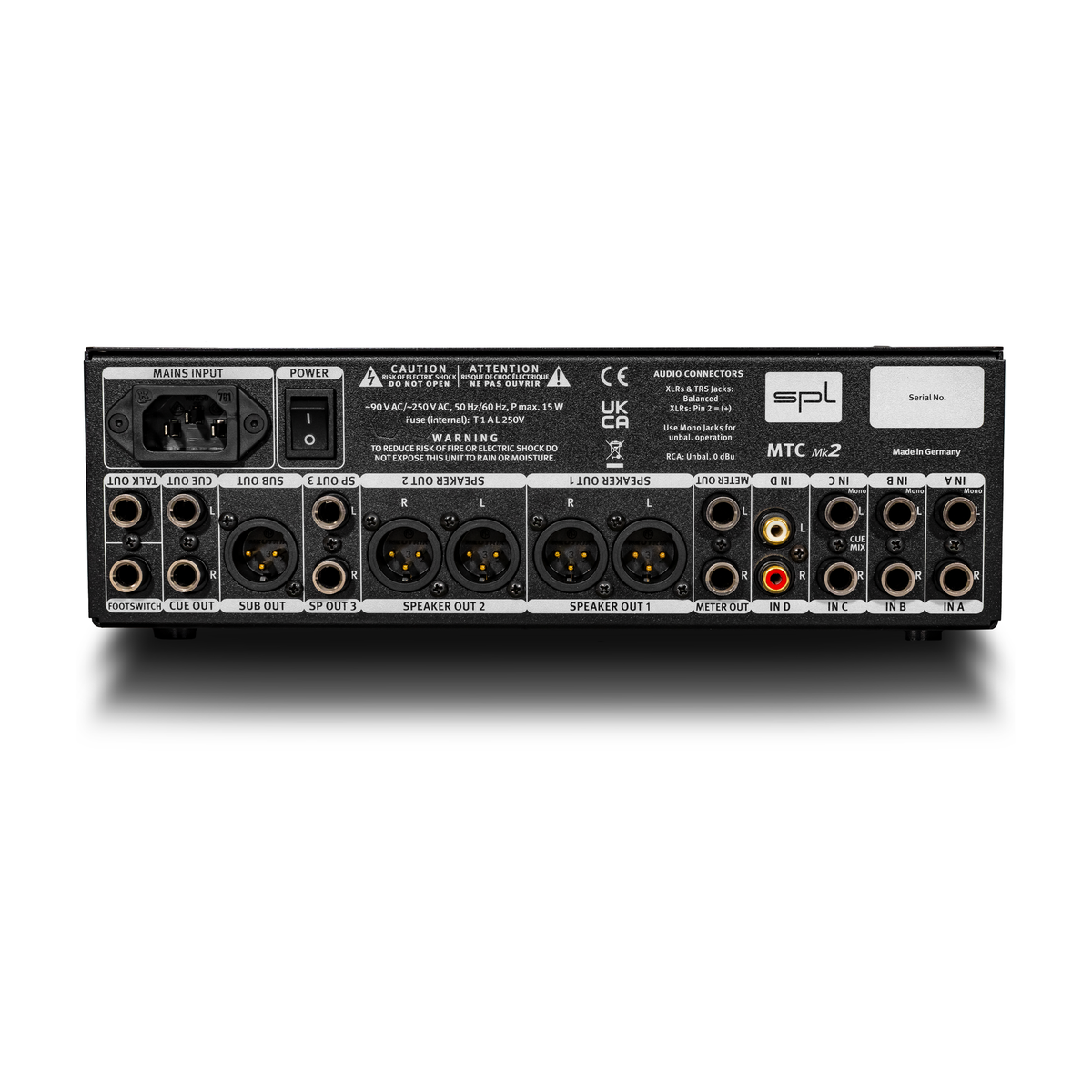

Analog inputs & outputs; XLR & TRS Jack (balanced), RCA
- Maximum input gain (XLR, TRS Jack): 22.5 dBu
- Maximum input gain (RCA): 22.5 dBu
- Input impedance (TRS Jack): 20 kΩ
- Input impedance (RCA): 20 kΩ
- Output impedance (XLR): 75 Ω
- Common mode rejection (1 kHz): 80 dBu
- Frequency range (-3 dB): 10 Hz – 150 kHz
- THD + N (10 Hz – 22 kHz, 0 dBu): 0.0027 %
- Noise (A-weighted): -94.3 dBu
- Dynamic range (XLR, TRS Jack): 116.3 dB
- Dynamic range (RCA): 116.3 dB
Internal Linear Power Supply with Toroidal Transformer
- Operating voltage for analog audio: +/- 18 V
Mains Power Supply
- Mains voltage: 85-264 V AC / 47-440 Hz
- Fuse: 1 A
- Power consumption: 15 W
Dimensions & Weight
- W x H x D (width x height x depth): 272 x 91 x 275 mm / 10.71 x 3.58 x 10.83 inch
- Unit weight: 3 kg / 6.61 lbs
- Shipping weight (incl. packaging): 4.2 kg / 9.26 lbs
