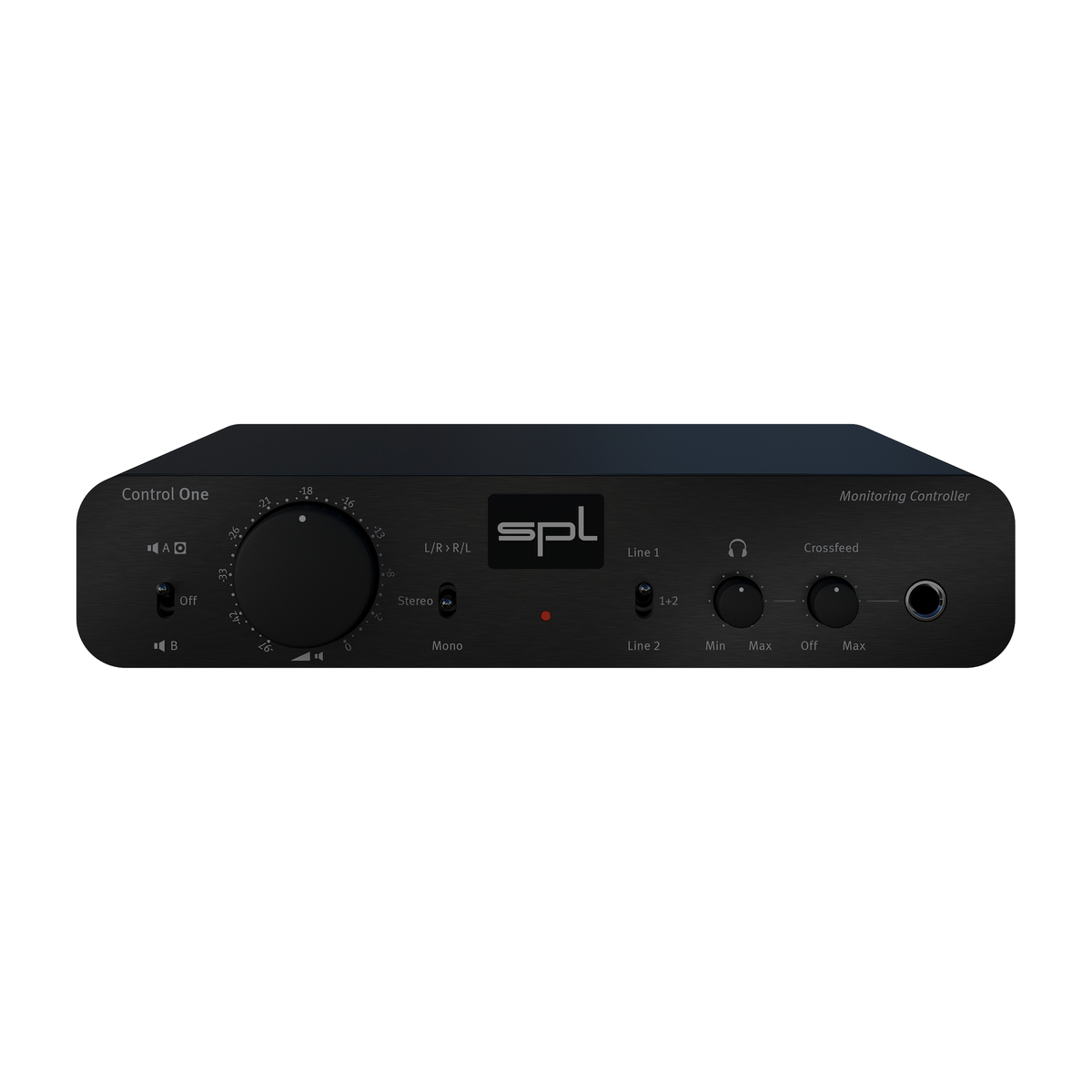

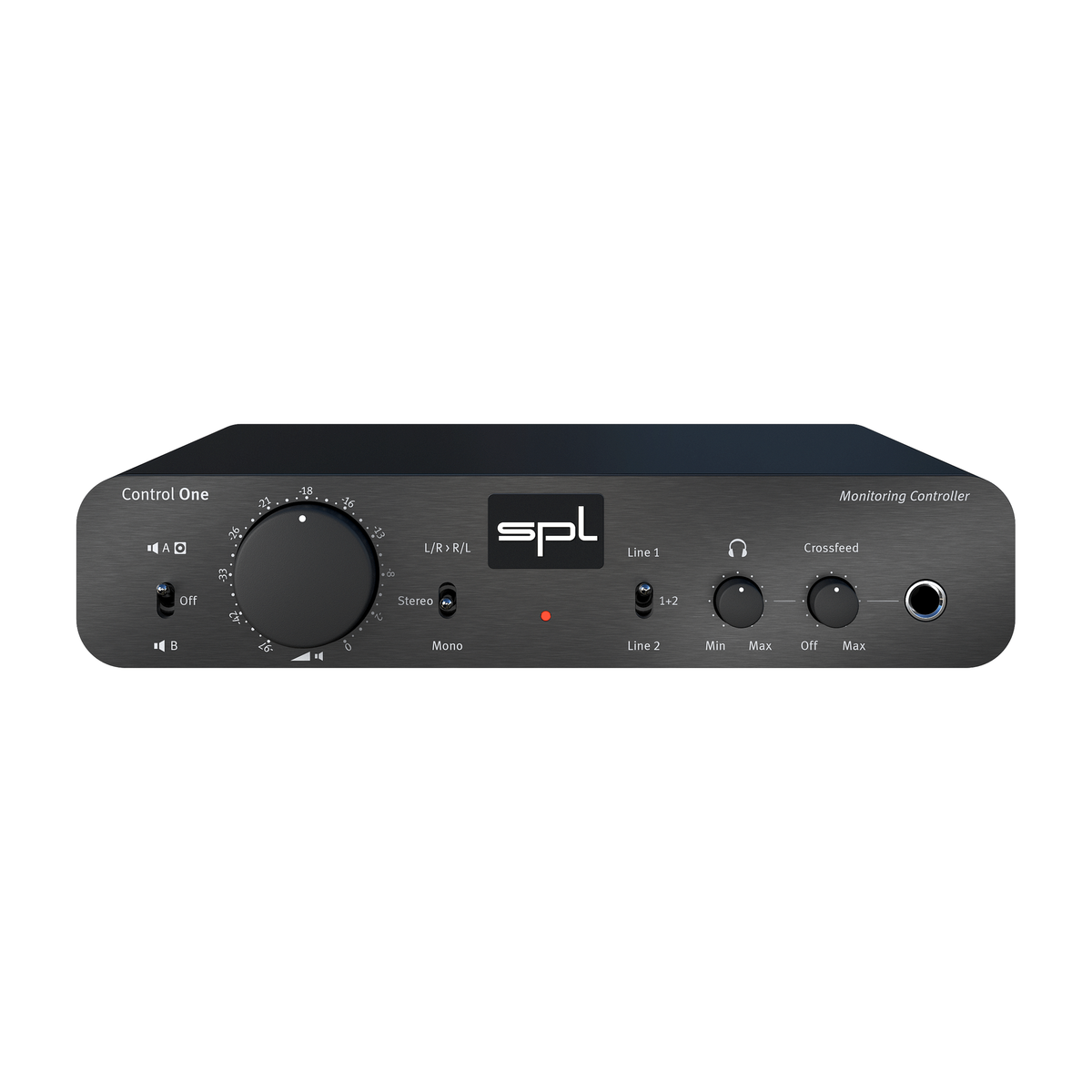

SPL Control One Monitor Controller

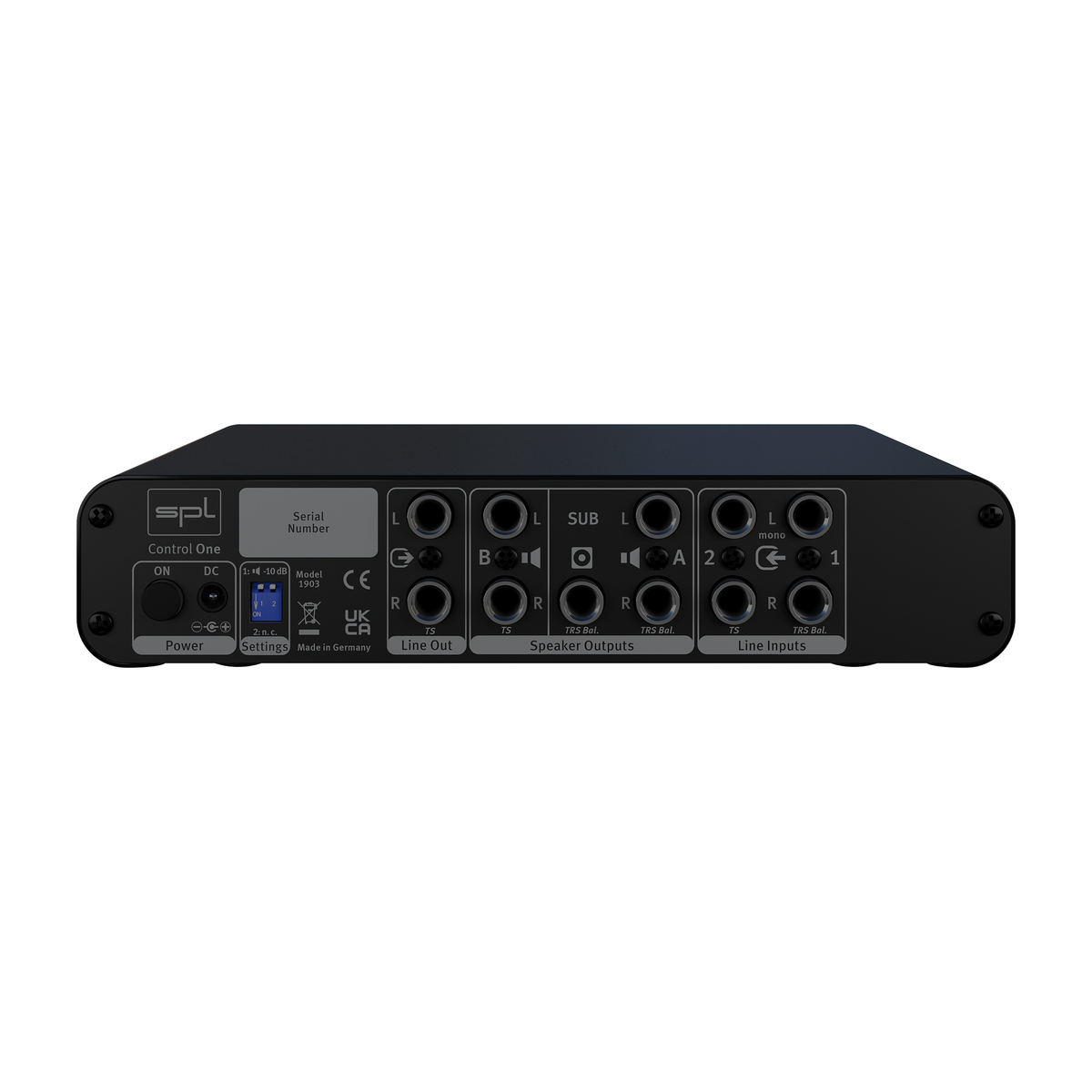

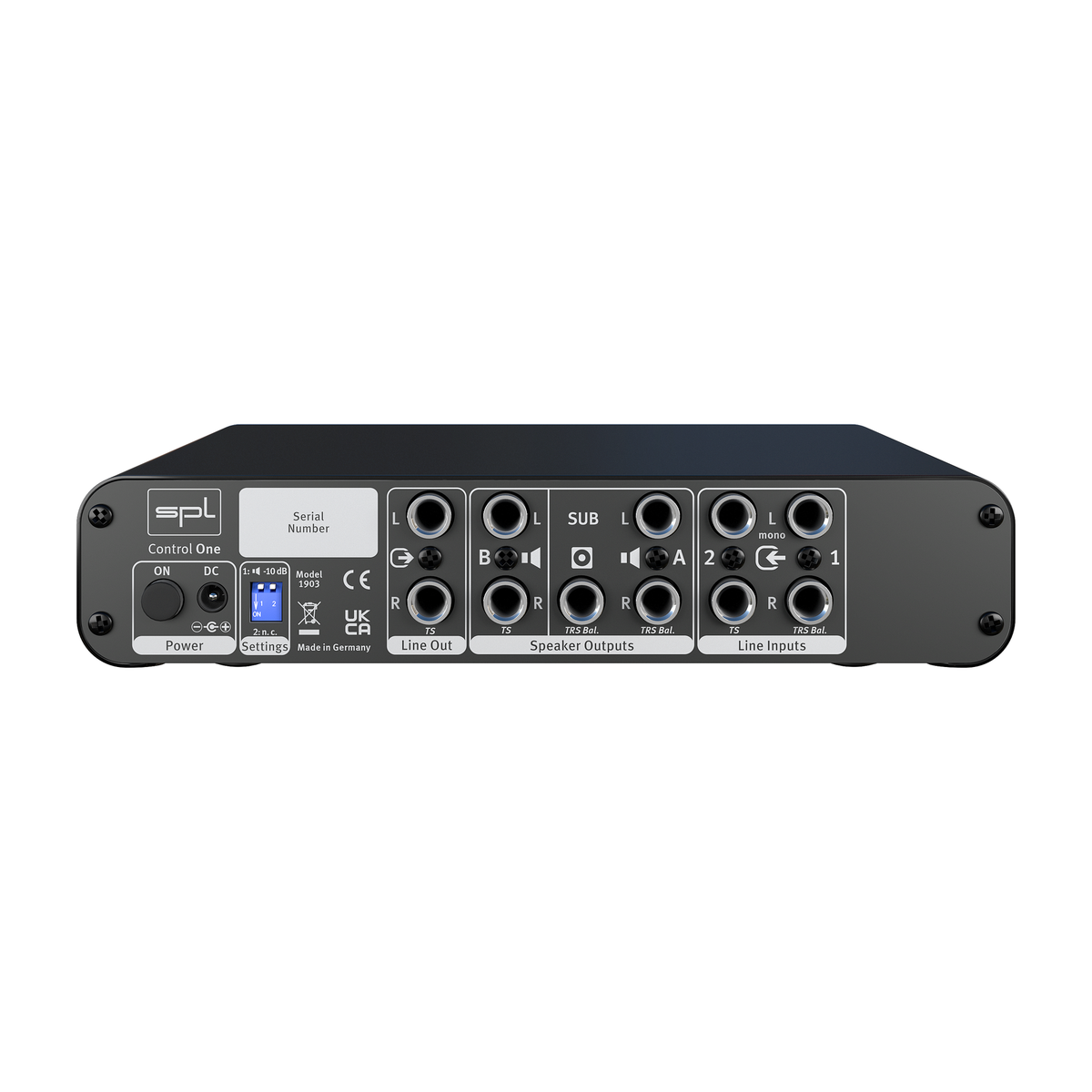

Analog inputs & outputs; 6.35 mm (1/4") TRS Jacks

• Input gain (max.): +22.5 dBu
• Line Input 1 (balanced): Input impedance: 20 kΩ
• Line Input 1: Common mode rejection: < 60 dB
• Line Input 2 (unbalanced): Input impedance: 10 kΩ
• Output gain (max.): Speaker Outputs (600 Ω): +22 dBu
• Line Output (unbalanced): Output impedance: 75 Ω
• Speaker Output 1 (balanced): Output impedance: 150 Ω
• Sub Output low filter: none (Full Range)
• Sub Output (balanced): Output impedance: 150 Ω
• Speaker Output 2 (unbalanced): Output impedance: 75 Ω
• Frequency range (-3dB): 10 Hz - 200 kHz
• Dynamic range: 121 dB
• Noise (A-weighted, 600 Ω load): -99 dBu
• Total harmonic distortion (0 dBu, 10 Hz – 22 kHz): 0.002 %
• Crosstalk (1 kHz): < 75 dB
• Fade-out attenuation: -93 dB

Headphones Output; 6.35 mm (1/4") TRS Jack

• Wiring: Tip = Left, Ring = Right, Sleeve = GND
• Source impedance: 20 Ω
• Frequency range (-3 dB): 10 Hz - 200 kHz
• Noise (A-weighted, 600 Ω): -97 dBu
• THD + N (0 dBu, 10 Hz – 22 kHz, 600 Ω): 0,002 %
• THD + N (0 dBu, 10 Hz – 22 kHz, 32 Ω): 0,013 %
• Max output power (1 kHz, 600 Ω): 2 x 190 mW
• Max output power (1 kHz, 250 Ω): 2 x 330 mW
• Max output power (1 kHz, 47 Ω): 2 x 400 mW
• Fade-out attenuation (600 Ω): -99 dB
• Crosstalk (1 kHz, 600 Ω): -75 dB
• Dynamic range: 117 dB

Internal Power Supply

• Operating voltage for analog audio: +/- 17 V
• Operating voltage for headphone amplifier: +/- 19 V
• Operating voltage for relays and LEDs: + 12 V
• AC/DC switching adaptor: Mean Well GE18/12-SC
• Input: 100 - 240 V AC; 50 - 60 Hz; 0.7 A
• Output: 12 V DC; 1.5 A

Dimensions & Weight

• W x H x D (width x height incl. feet x depth): 210 x 49.6 x 220 mm / 8.23 x 1.95 x 8.66 inch
• Unit weight: 1.5 kg / 3.3 lbs
• Shipping weight (incl. packaging): 2 kg / 4.4 lbs
