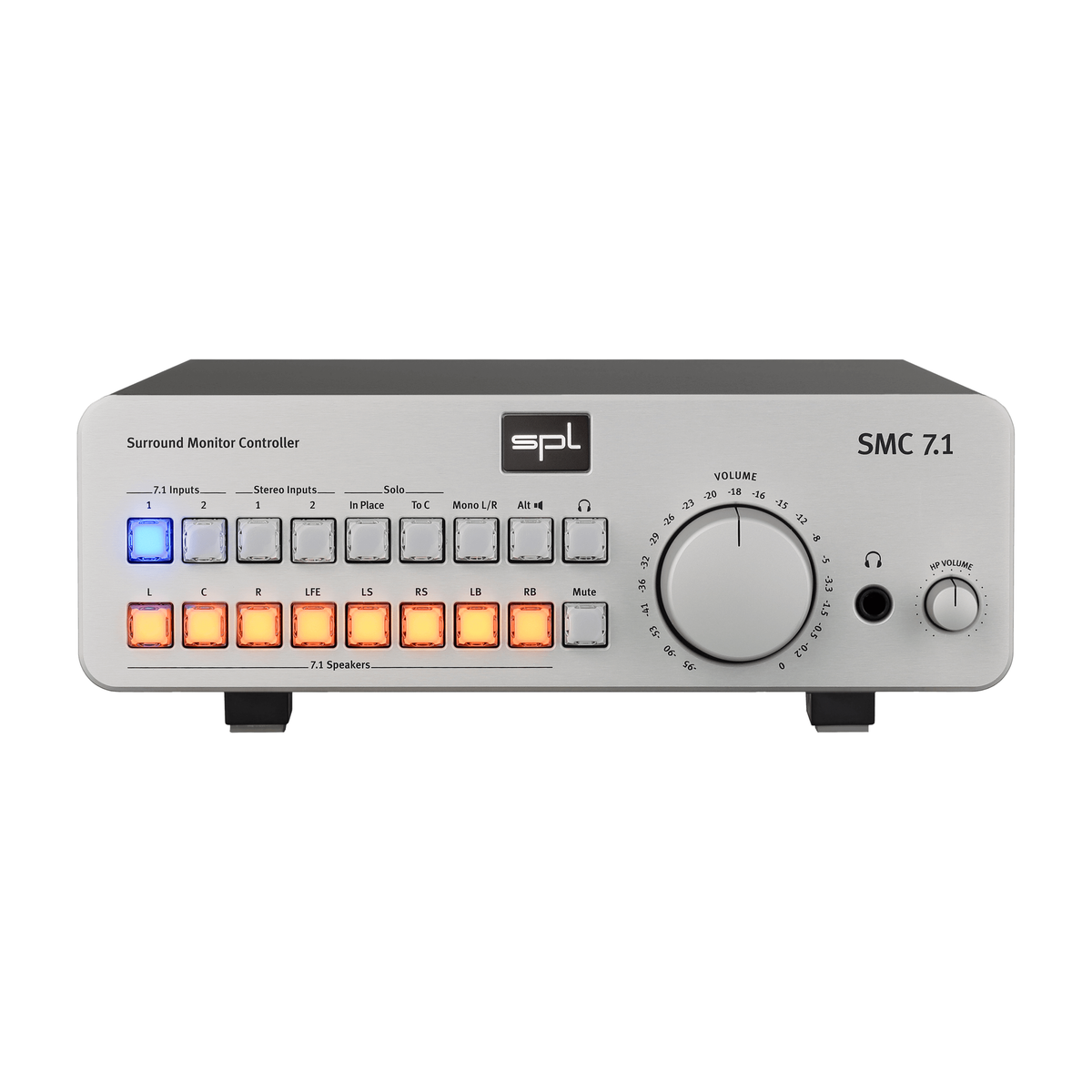

SPL SMC 7.1 Silver Surround Monitor Controller

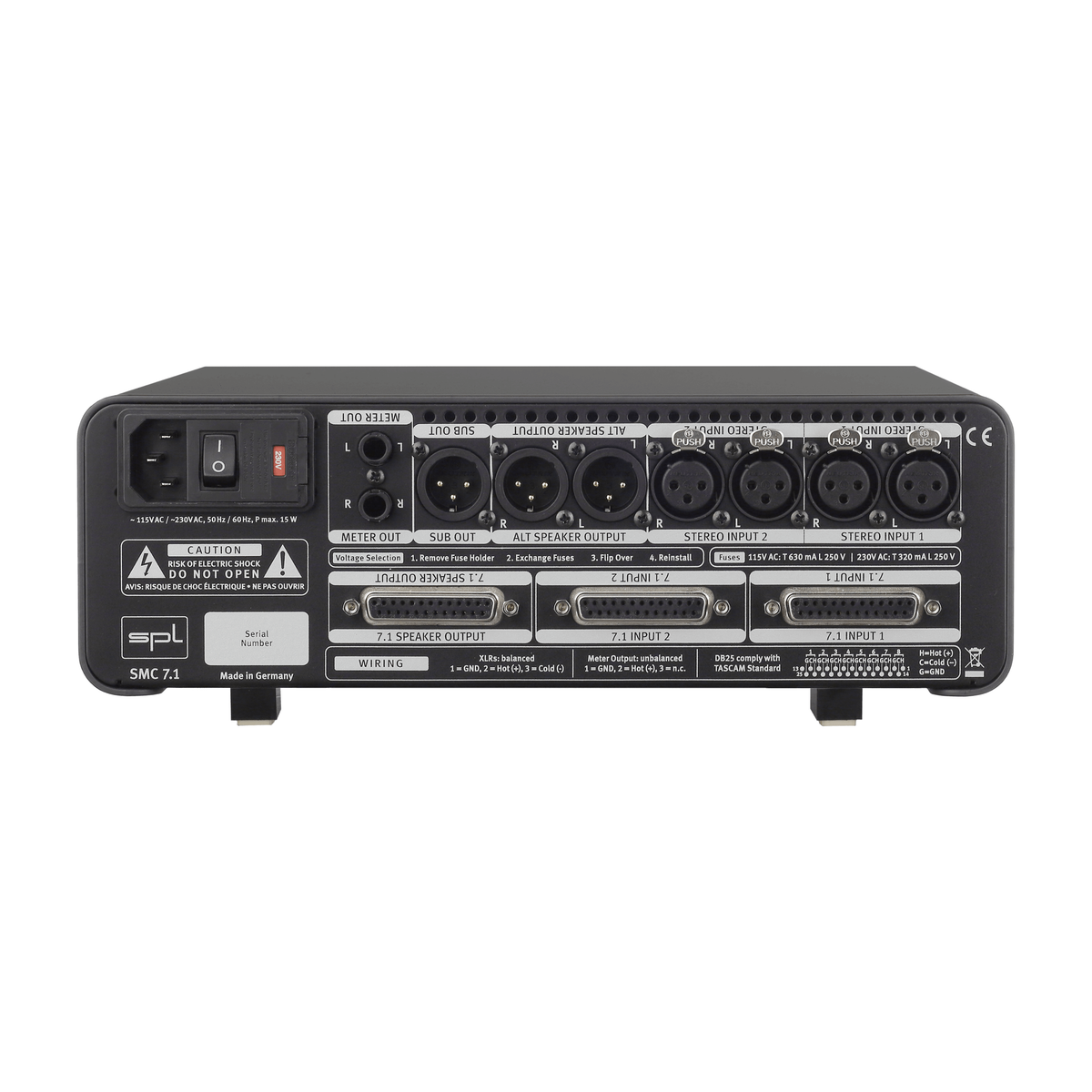

Analog inputs & outputs; XLR & DB25 (balanced)

• Maximum input: 22 dBu
• Input impedance: 20 kΩ
• Output impedance: 100 Ω
• Frequency range (-3 dB): 10 Hz – 150 kHz
• THD +N (10 Hz – 22 kHz, 0 dBu): 0.001 %
• Noise (A-weighted): -93 dBu
• Crosstalk (1 kHz): -92 dB
• Common mode rejection (1 kHz): 82 dB
• Dynamic range: 115 dB

Standard Headphones Output, 6.35 mm (1/4") TRS Jack

• Wiring: Tip = Left, Ring = Right, Sleeve = GND
• Frequency range (-3dB): 10 Hz – 80 kHz
• Crosstalk (1 kHz): -70 dBu
• Total harmonic distortion (0 dBu, 1 kHz, 40 kΩ load): 0.001 %
• Noise (A-weighted): -93 dBu
• Dynamic range: 115 dB

Internal Linear Power Supply with Toroidal Transformer

• Operating voltage for analog audio: +/- 18 V
• Operating voltage for relays and LEDs: +12 V

Mains Power Supply

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Power consumption: max. 30 W
• W x H x D (width x height x depth): 278 x 100 x 330 mm / 11 x 4 x 13 inch
• Unit weight: 4.1 kg / 9.04 lbs
• Shipping weight (incl. packaging): 5.4 kg / 11.9 lbs
