Name: Austrian Audio OC818 Studio Set - Multi-Pattern Large-Diaphragm Condenser Microphone
Brand: Austrian Audio
SKU: AUA-0002
Availability: OutOfStock

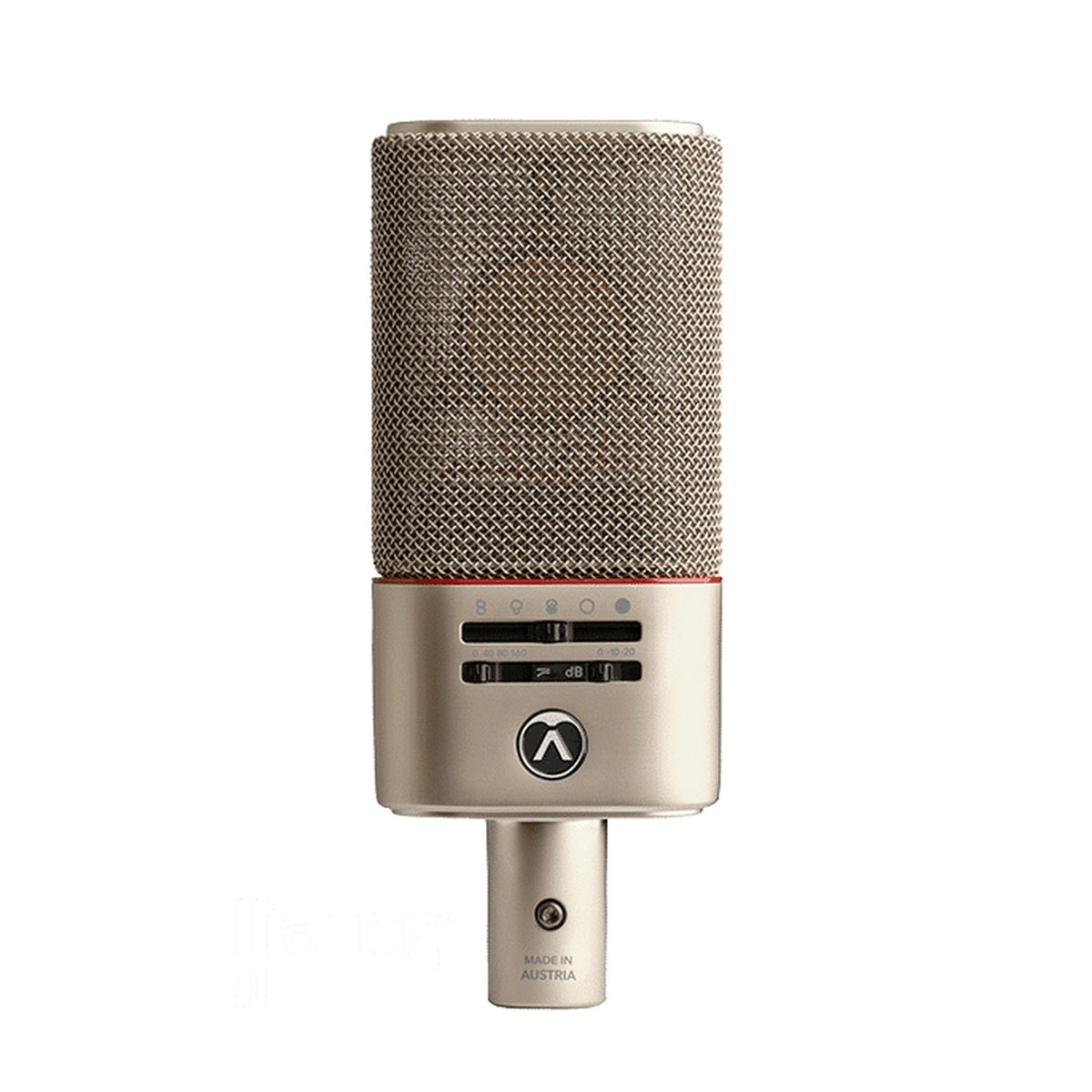

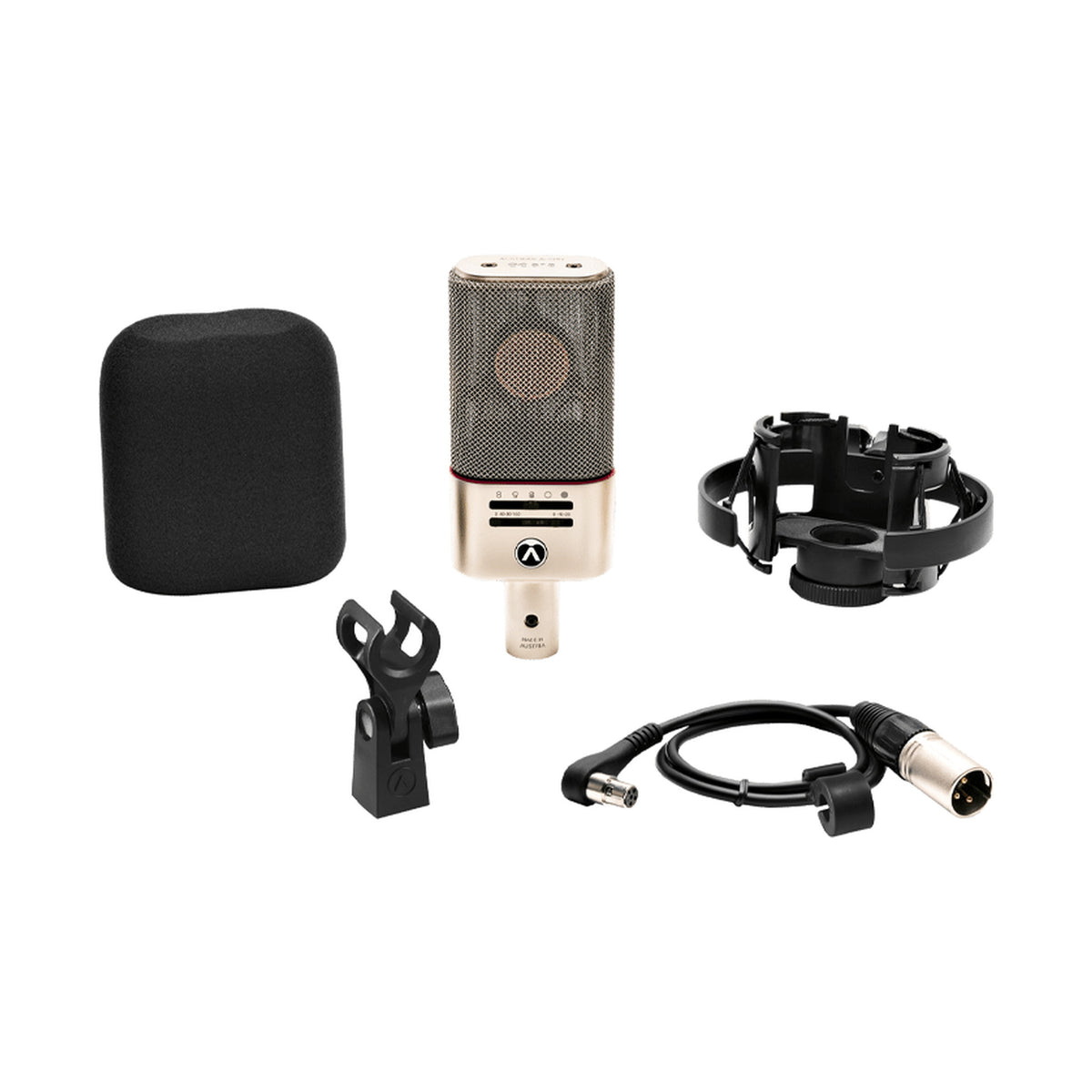

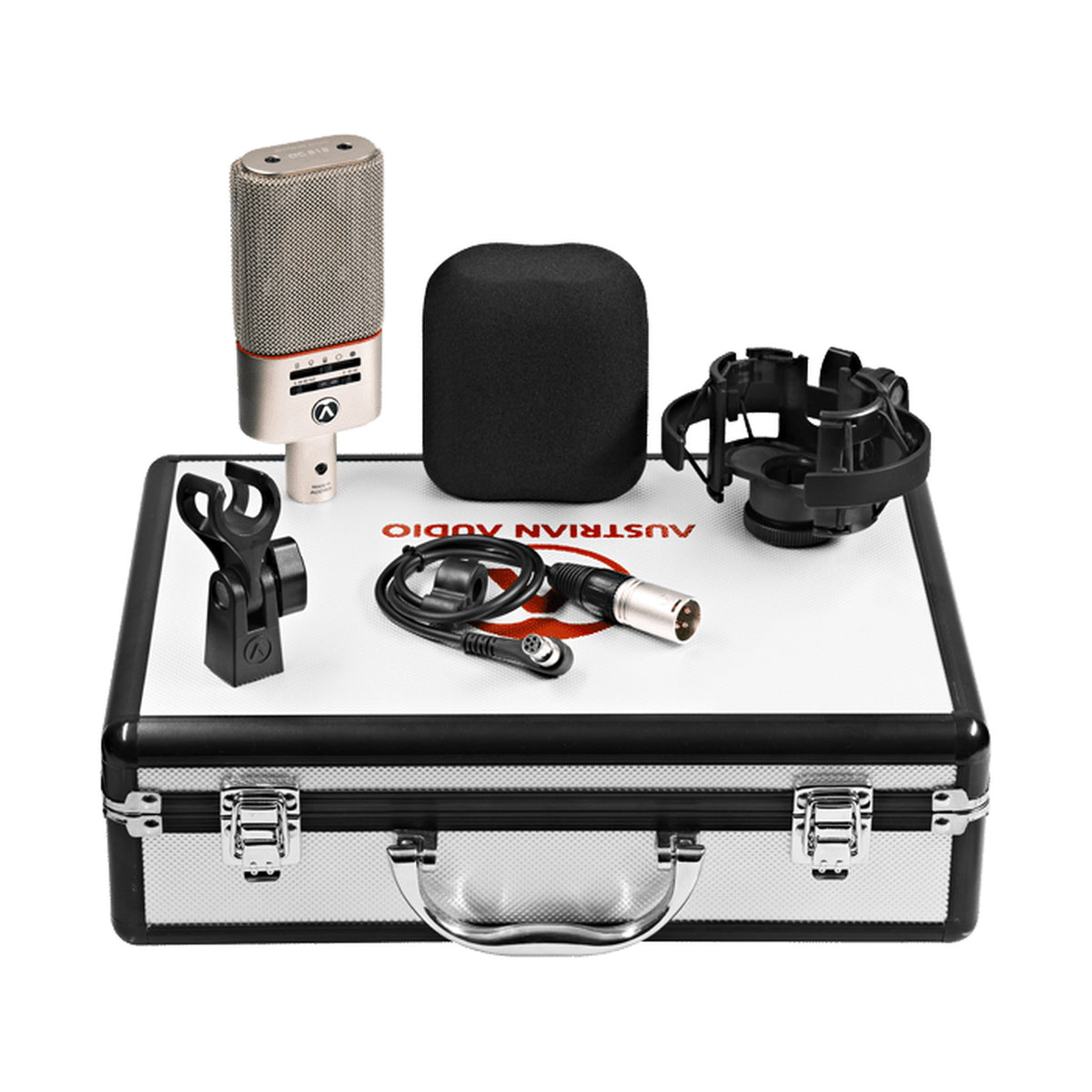

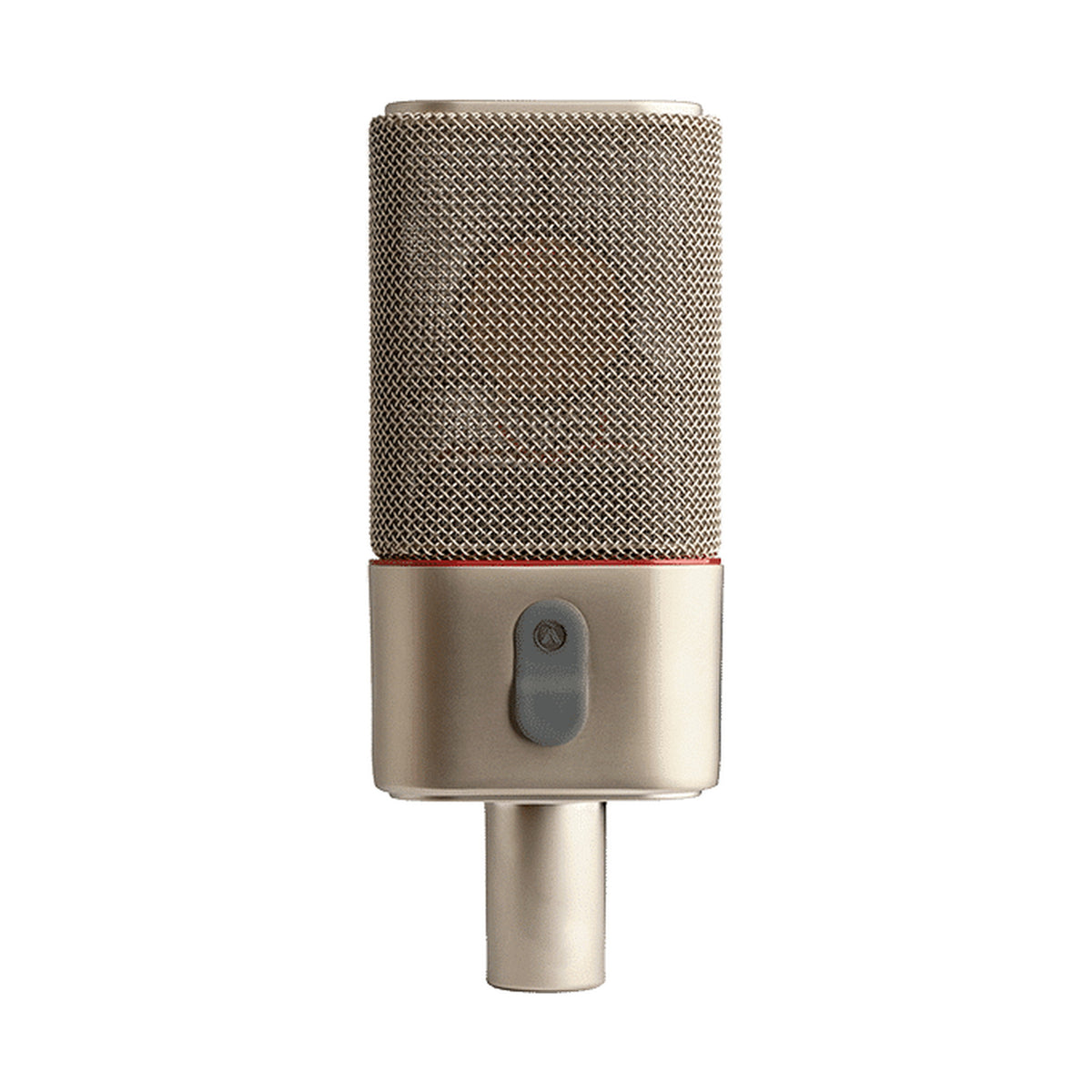

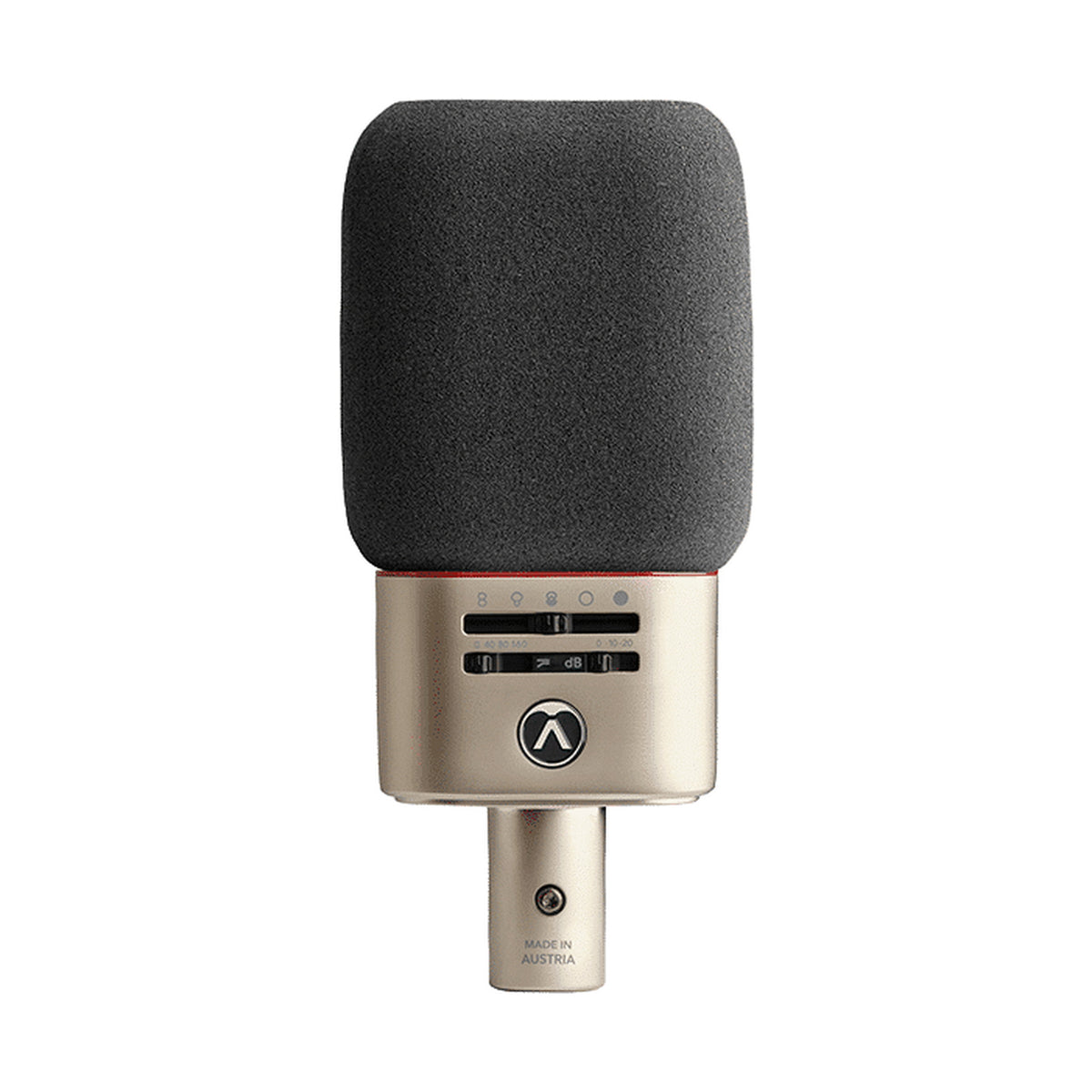

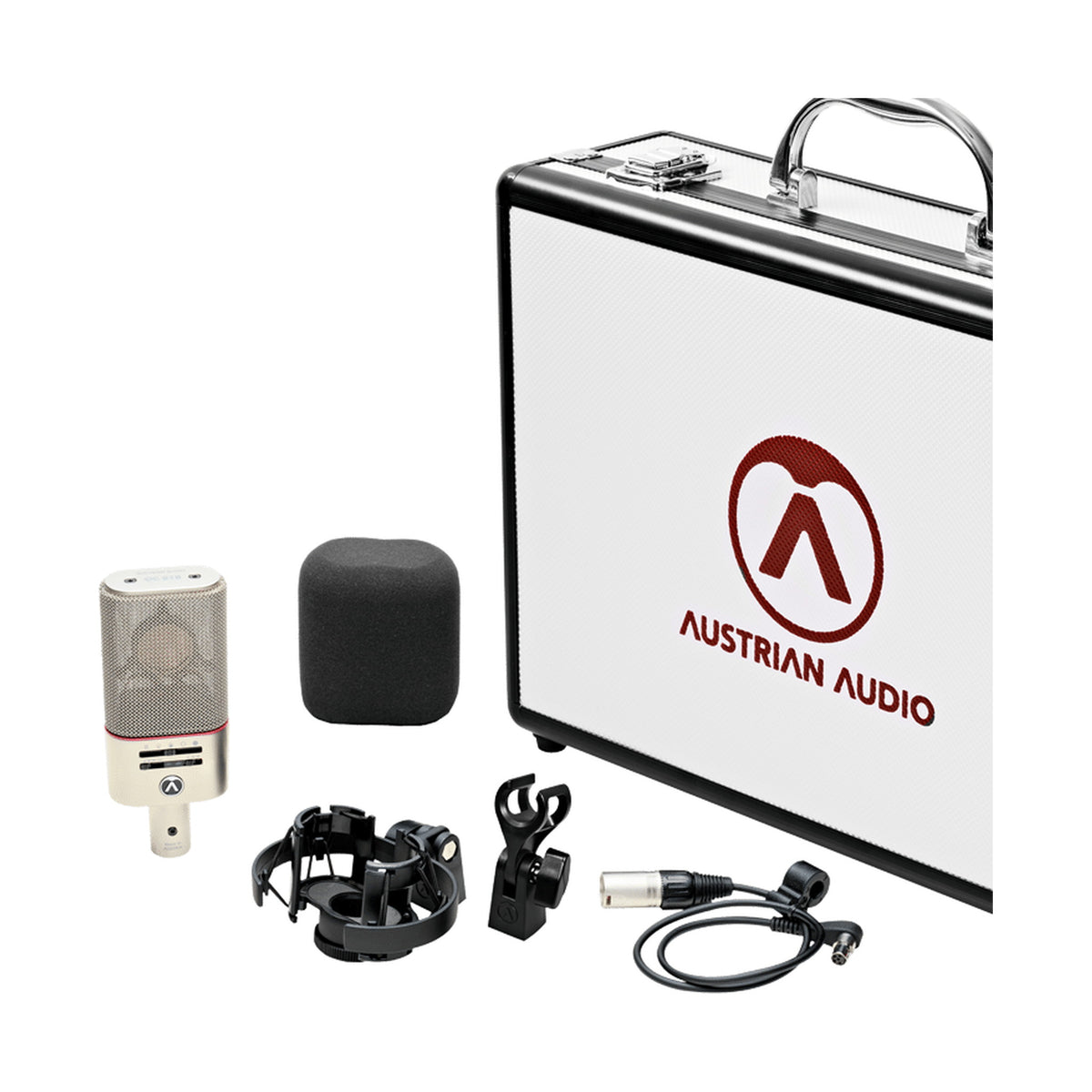

Austrian Audio OC818 Studio Set - Multi-Pattern Large-Diaphragm Condenser Microphone

Call for order

Taxes included. Shipping calculated at checkout.

AUA-0002

Request a price

+91 844 622 6222 sales@proaudiogear.in

We quote these to order — we will confirm price, stock and delivery the same day.

Genuine Product
With GST Invoice
After-sales Support
Non-returnable

Overview

The OC818 – our original Holy Grail. Handcrafted in Vienna with the CKR12 capsule for extreme detail and high SPL handling. Dual outputs and optional wireless control via OCR8 give you full flexibility. Shape polar patterns, stereo, or Ambisonics in post – one mic, total control, legendary sound.

The Austrian Audio OC818 multi-pattern condenser microphone combines classic design with modern innovation to go where no mic has gone before.

Our handmade CKR12 ceramic capsule reimagines the celebrated CK12 capsule to deliver exceptional detail and nuance while also handling extremely high SPL.

Technical Specifications

Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid & preset/custom programmable
Frequency range: 20 Hz – 20 kHz
Sensitivity (all directions): 13 mV/Pa
Equivalent noise level: 9 dB SPL (A)
Max. SPL: 148 dB SPL (158 dB SPL)
Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)
Switchable pad: -10 dB, -20dB
Impedance: 275 Ω (symmetrical)
Load impedance: > 1 kΩ
Supply voltage: 48 V (< 4mA, typical 2.1mA)
Main connector: XLR 3 pin
Second connector: Mini XLR 5 pin connector for back membrane
Dimensions: 157 x 63 x 36 mm
Weight: 360g
