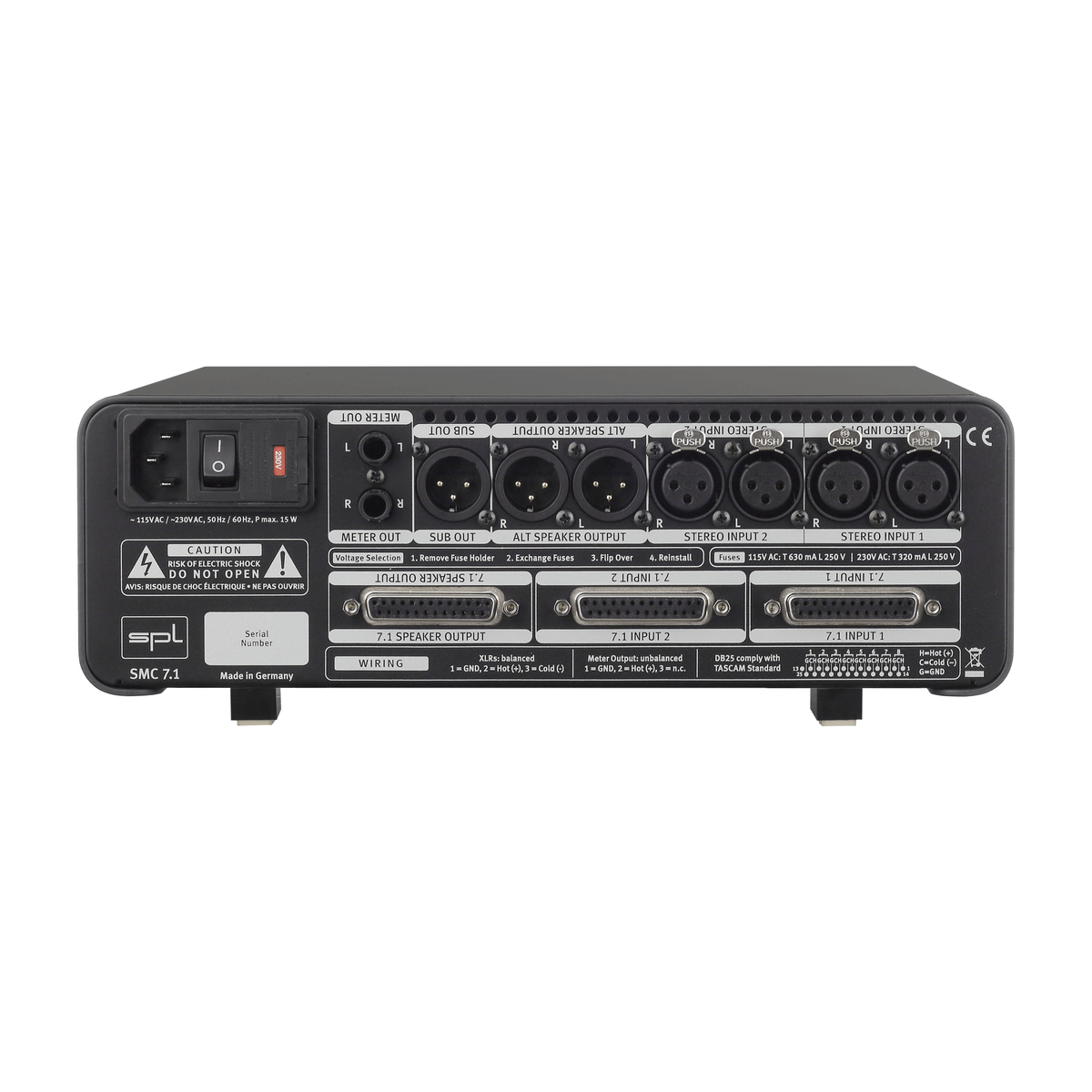

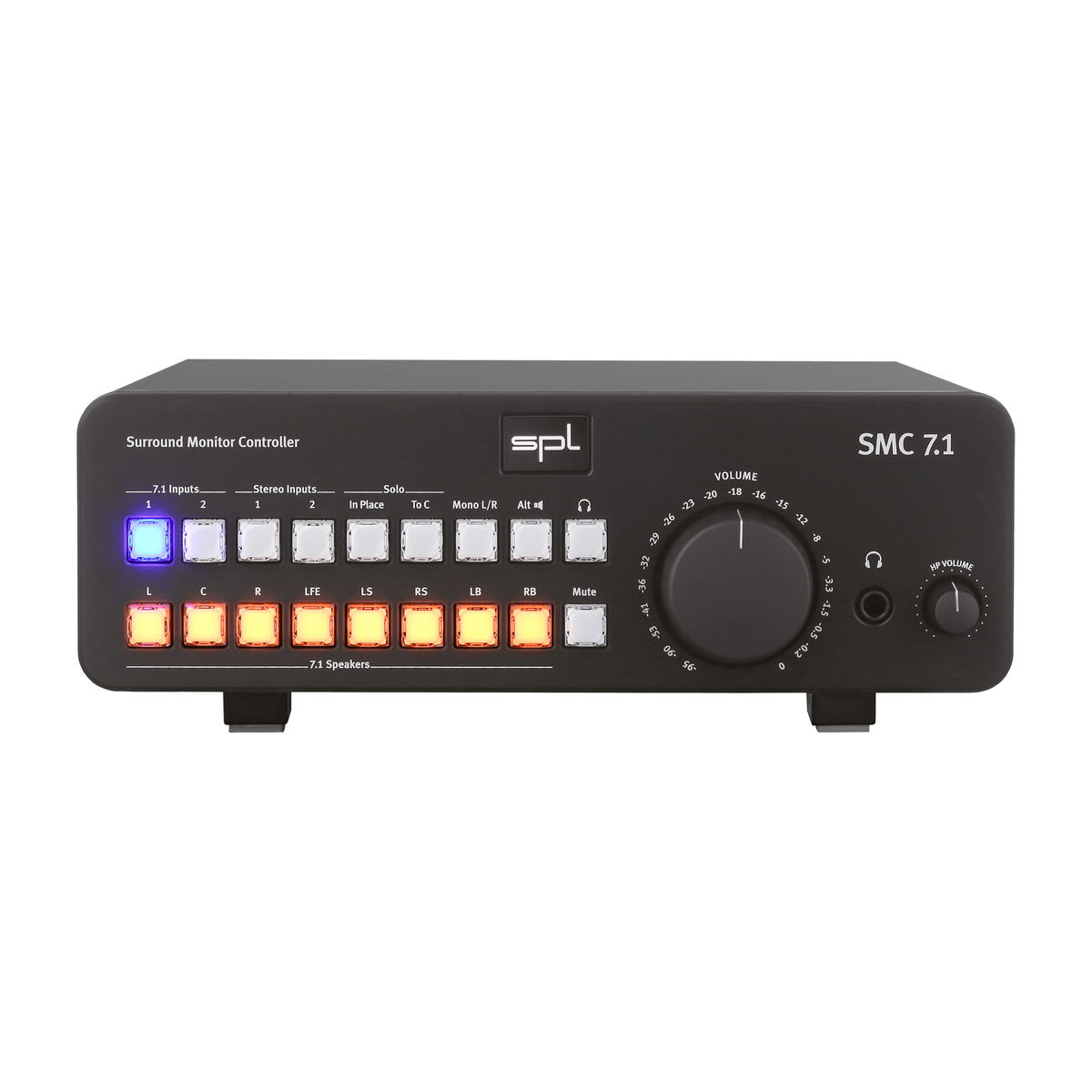

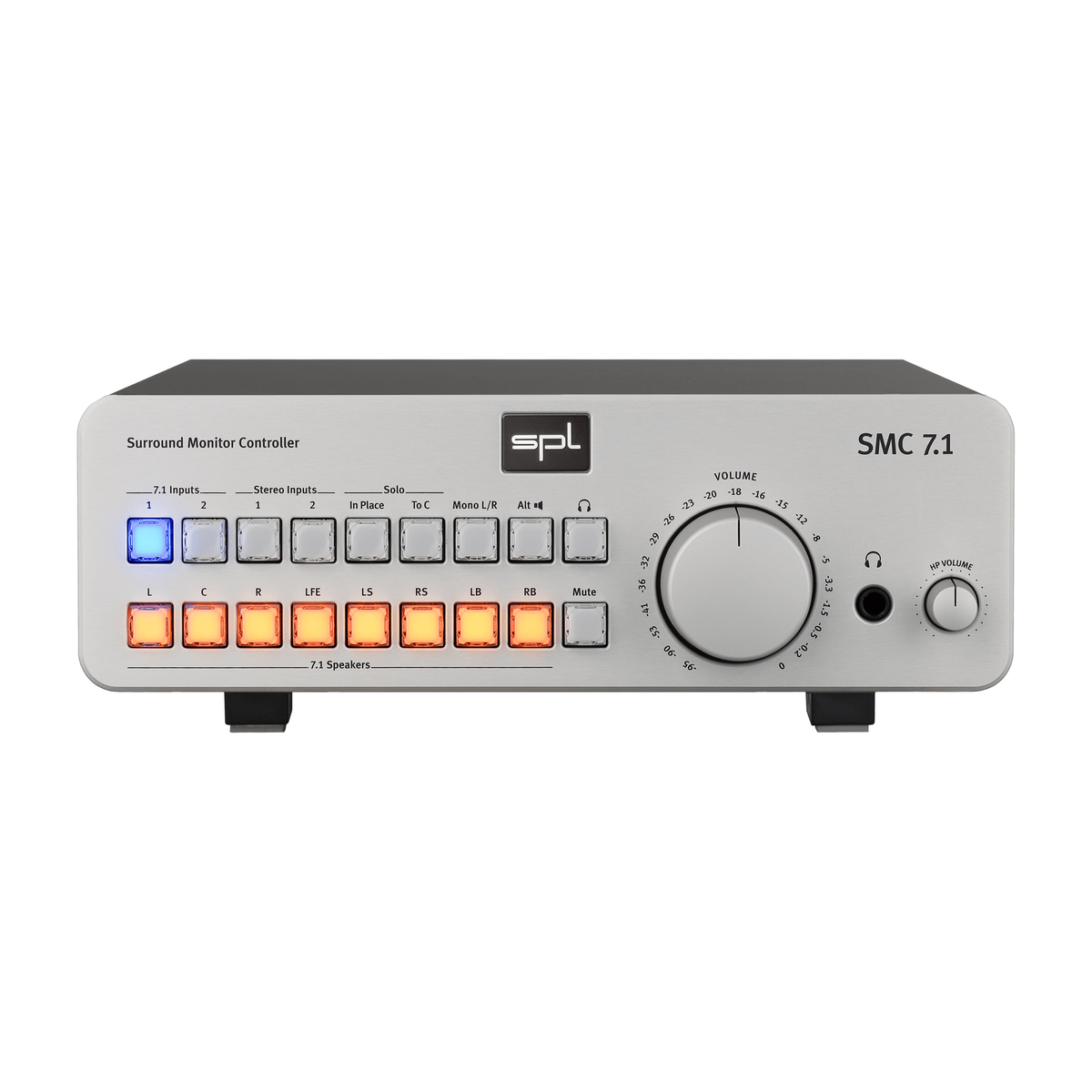

SPL SMC 7.1 + Expansion Rack Black Analog Surround Monitor Controller
Rs. 3,13,490.00
Sale price
Rs. 3,13,490.00
Regular price
Taxes included.
Shipping calculated at checkout.
SPL-0011
Pickup currently not available
- Genuine Product
- With GST Invoice
- After-sales Support
- Non-returnable
Overview
Surround Monitor Controller
The SMC 7.1 expands analog surround monitoring to 8 channels and offers Solo, Solo-In-Place and Solo-To-Center as well as a headphone jack.
Specifications
Analog inputs & outputs; XLR & DB25 (balanced)
- Maximum input: 22 dBu
- Input impedance: 20 kΩ
- Output impedance: 100 Ω
- Frequency range (-3 dB): 10 Hz – 150 kHz
- THD +N (10 Hz – 22 kHz, 0 dBu): 0.001 %
- Noise (A-weighted): -93 dBu
- Crosstalk (1 kHz): -92 dB
- Common mode rejection (1 kHz): 82 dB
- Dynamic range: 115 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
- Wiring: Tip = Left, Ring = Right, Sleeve = GND
- Frequency range (-3dB): 10 Hz – 80 kHz
- Crosstalk (1 kHz): -70 dBu
- Total harmonic distortion (0 dBu, 1 kHz, 40 kΩ load): 0.001 %
- Noise (A-weighted): -93 dBu
- Dynamic range: 115 dB
Internal Linear Power Supply with Toroidal Transformer
- Operating voltage for analog audio: +/- 18 V
- Operating voltage for relays and LEDs: +12 V
Mains Power Supply
- Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
- Power consumption: max. 30 W
- W x H x D (width x height x depth): 278 x 100 x 330 mm / 11 x 4 x 13 inch
- Unit weight: 4.1 kg / 9.04 lbs
- Shipping weight (incl. packaging): 5.4 kg / 11.9 lbs
