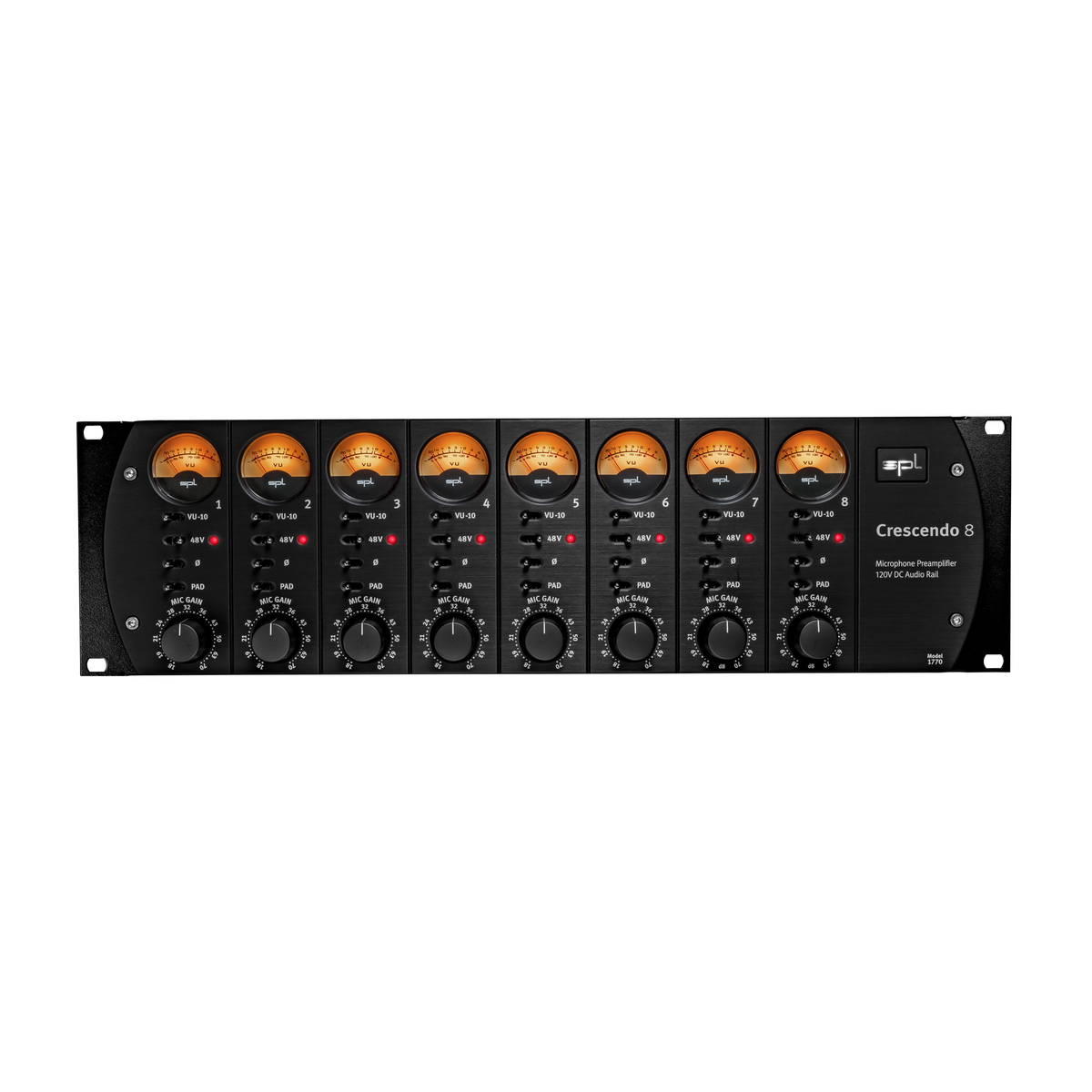

  • SPL Crescendo 8 - Packshot 1

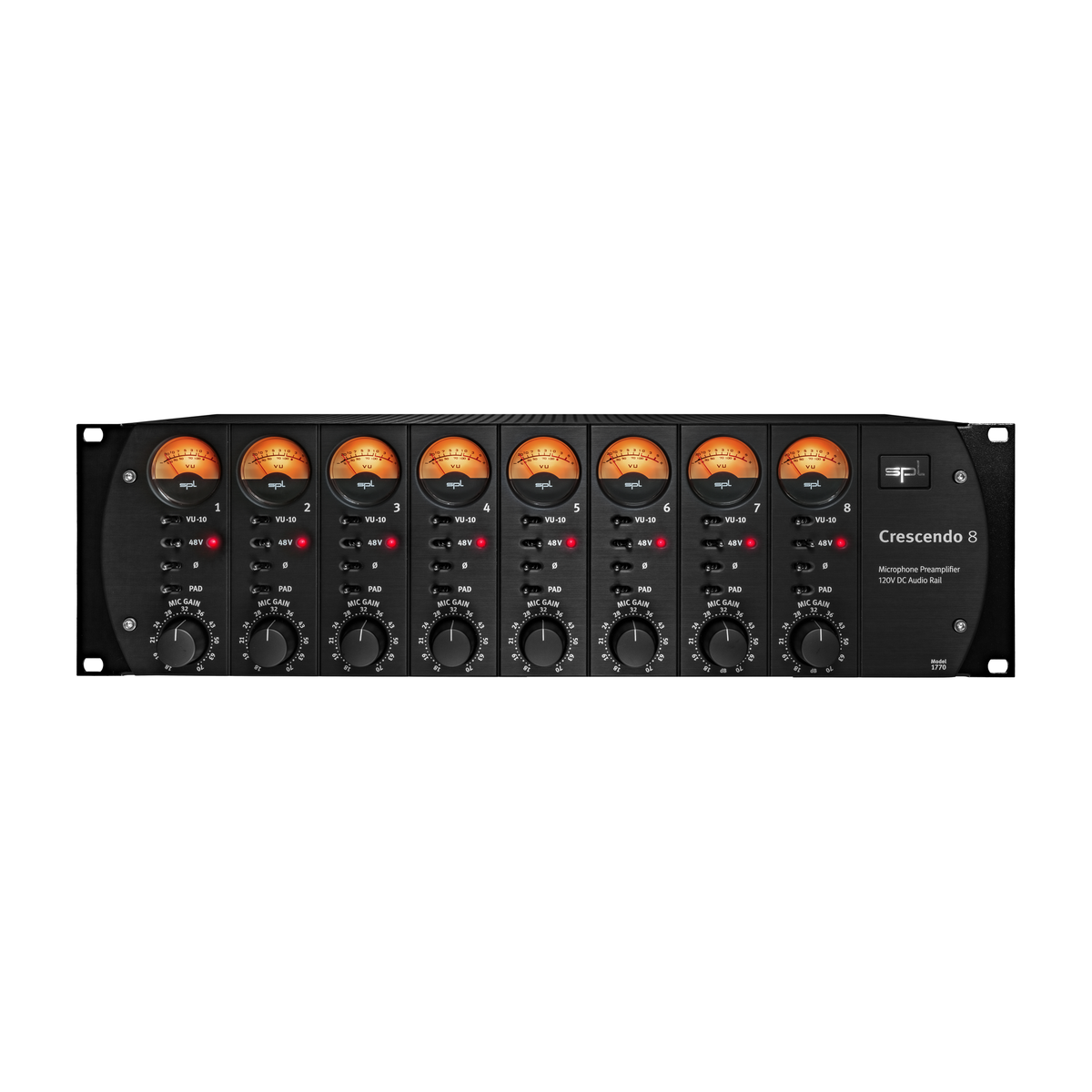

  • SPL Crescendo 8 - Packshot 2

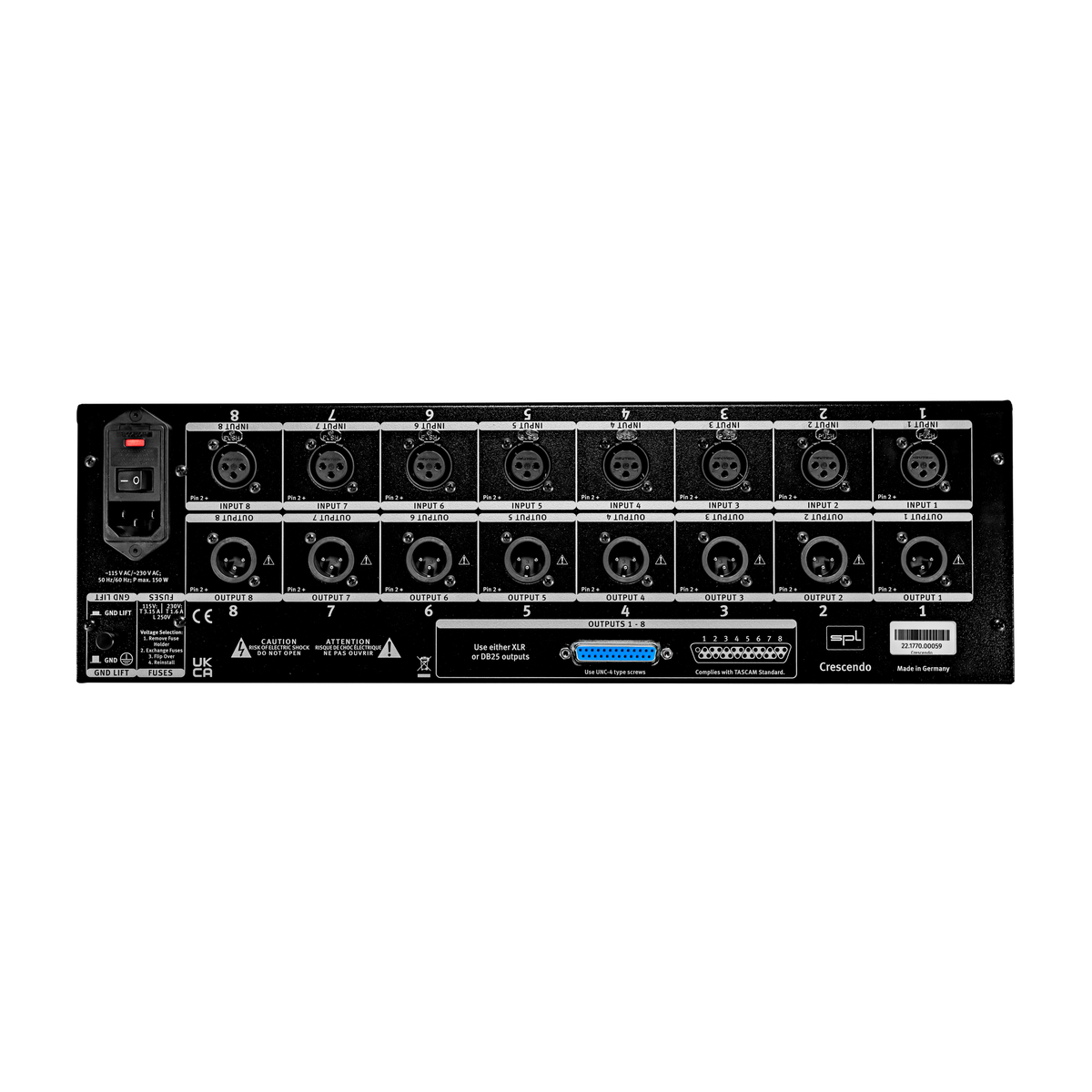

  • SPL Crescendo 8 - Packshot 3

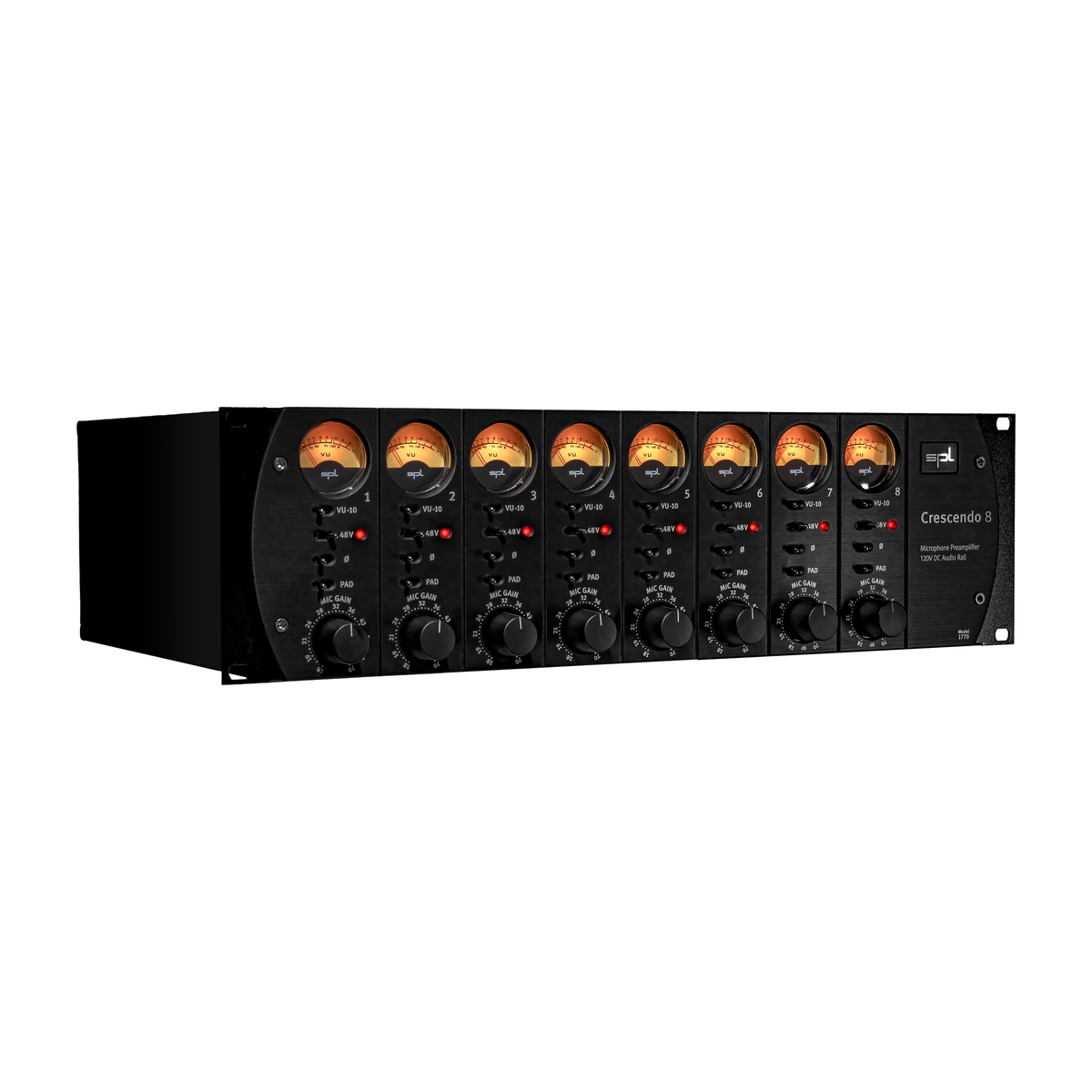

  • SPL Crescendo 8 - Packshot 4
SPL Crescendo 8 Eight-Channel Microphone Preamplifier

SPL Crescendo 8 Eight-Channel Microphone Preamplifier

Rs. 7,07,005.00
Rs. 7,07,005.00
Taxes included. Shipping calculated at checkout.
SPL-0028

Get the best deal before you check out!

It is always a good idea to call and check for product availability and ongoing offers and discounts.

+91 844 622 6222 WhatsApp us

SPL Crescendo 8 Eight-Channel Microphone Preamplifier
  • Genuine Product
  • With GST Invoice
  • After-sales Support
  • Non-returnable

    Overview

    Eight-Channel Microphone Preamplifier with 120V technology

    Crescendo 8 combines the precise sound that German Rundfunk-Technik is famous for with the innovative SPL 120V technology. The internal operating voltage of 120 volts allows Crescendo microphone preamplifiers to break completely new ground. This results in microphone preamps that sound detail-rich, vivid and equally honest.

    Crescendo 8 lets microphones shine in a whole new light – because they have never been amplified like this before.

    Specifications

    Analog input & output; XLR (balanced)

    • Maximum output level: 32,5 dBu
    • Input impedance: 10 kΩ
    • Output impedance: 75 Ω
    • Frequency range (30 dB Gain): 20 Hz – 100 kHz
    • THD + N (30 dB Gain): 0,0089 %
    • THD + N (70 dB Gain): 0,30 %
    • Noise (A-weighted, 150 Ω, 30 dB Gain): -90,8 dBu
    • Noise (A-weighted, 150 Ω, 70 dB Gain): -57,8 dBu
    • Equivalent Input Noise, EIN (150 Ω): -127.8 dBu
    • Common mode rejection ratio (CMRR, 30 dB Gain): >84 dB

    Internal Linear Power Supply with Shielded Toroidal Transformer

    • Operating voltage for audio electronics: +/- 60 V
    • Operating voltage for relays and LEDs: + 12 V

    Mains Power Supply

    • Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
    • Fuse for 230 V: T 1,6 A
    • Fuse for 115 V: T 3,15 A
    • Power consumption: 230 V: 60 W, 115 V: max. 60 W

    Dimensions & Weight

    • W x H x D (width x height x depth): 482 x 132 x 300 mm / 19 x 5.2 x 11.8 inch
    • Unit weight: 9.5 kg / 20.94 lbs
    • Shipping weight (incl. packaging): 12.25 kg / 27.01 lbs
