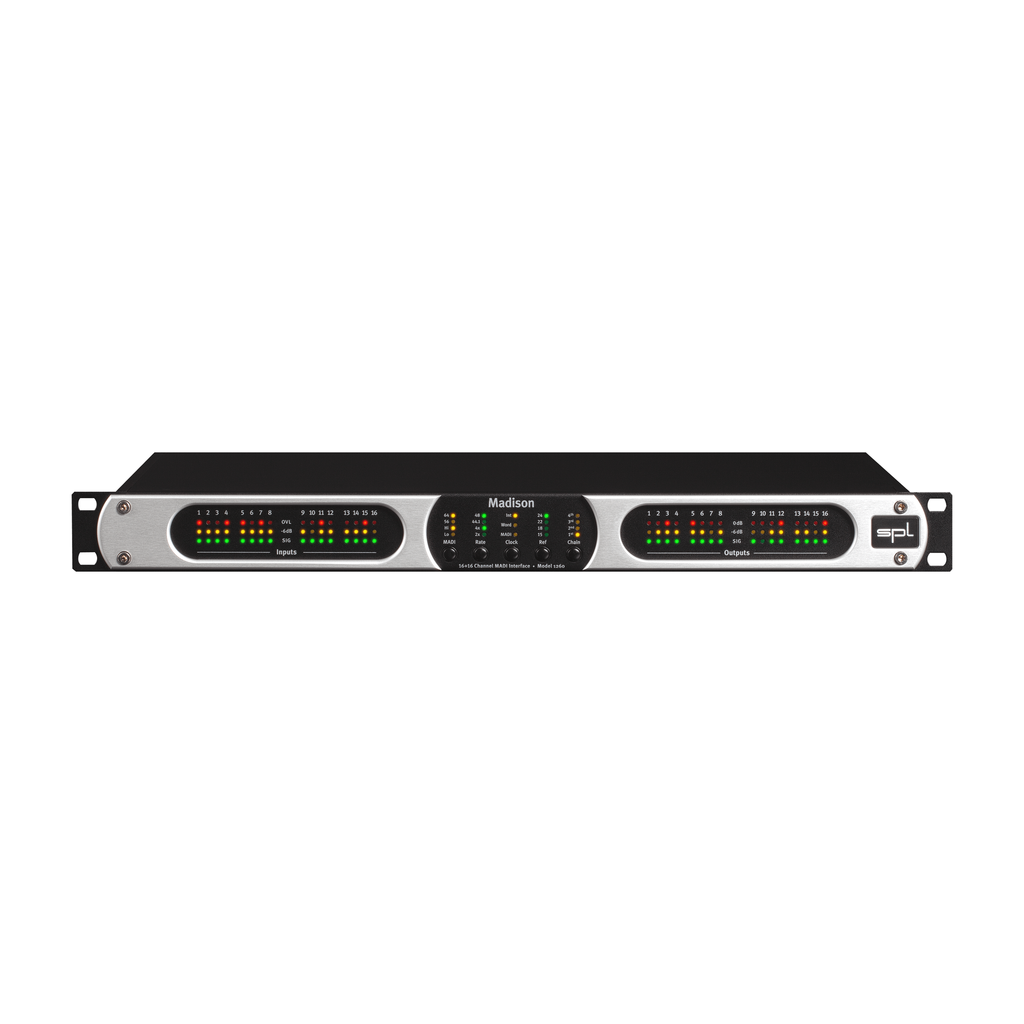

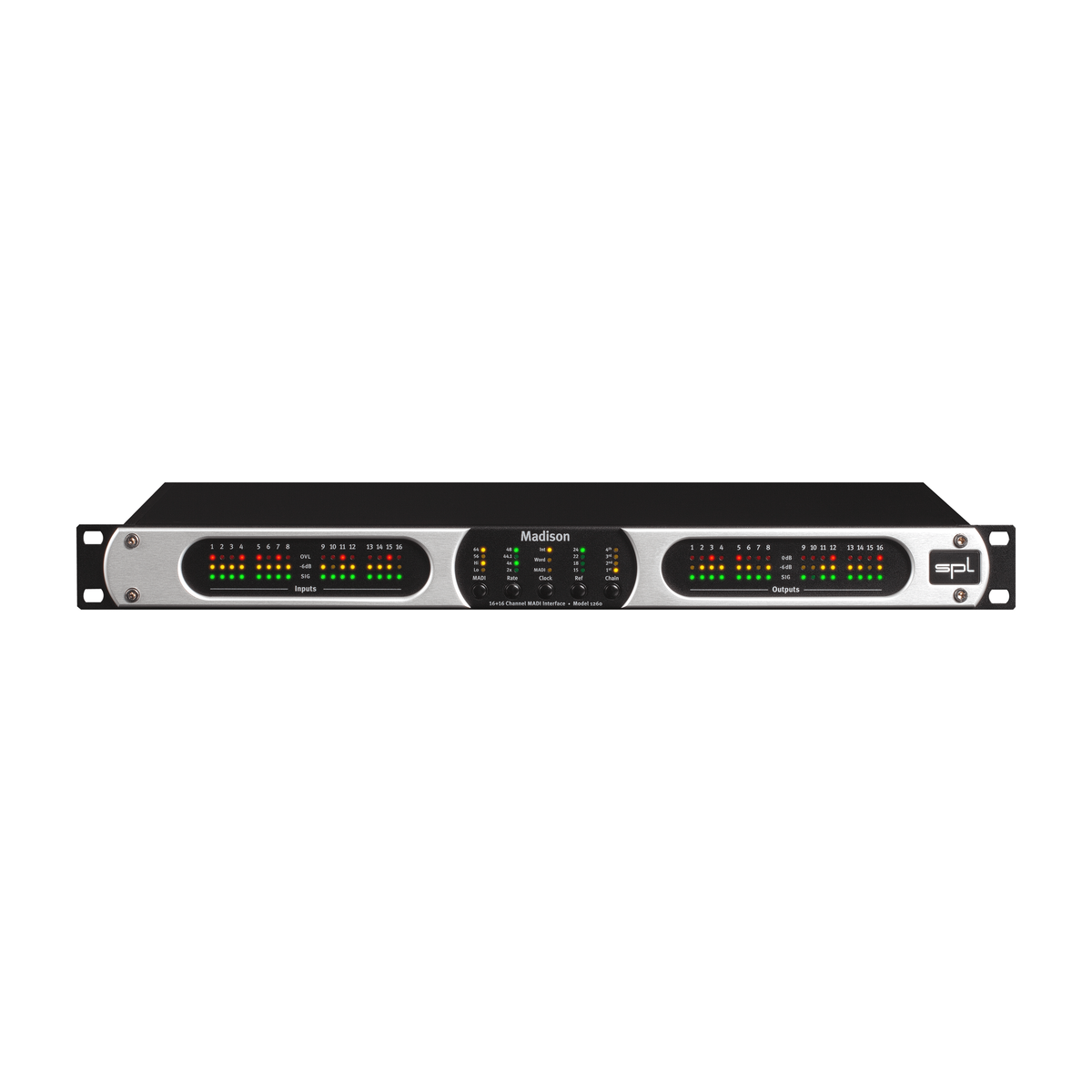

SPL Madison 16+16 Channel AD/DA Converter and MADI Interface
Rs. 2,92,155.00
Sale price
Rs. 2,92,155.00
Regular price
Taxes included.
Shipping calculated at checkout.
SPL-0049
Pickup currently not available
- Genuine Product
- With GST Invoice
- After-sales Support
- Non-returnable
Overview
16+16 channel AD/DA converter and MADI interface
Madison offers what hardly any other manufacturer in this price segment has to offer: 16 AD/DA converters. With SmartMADI and the Madicon this becomes an expandable multi-channel studio interface of the first order.
- MADI transmission distance up to 2 km
- MADI I/O latency: 1 sample
- Optical MADI socket, type SC
- 56 & 64 channel Hi/Lo modes
- accepts Varispeed up to +/-12,5%
- Sync to MADI, Wordclock or Internal
- Device ID for daisy chaining
- 16 AD and 16 DA converters
- 24 bit / up to 192 kHz
- Level lights per channel in easily readable blocks of four
- OdBfs: 15, 18, 22 or 24 dBu
- Fanless and therefore particularly suitable for noise-sensitive environments
- Optional redundant power supply unit
Specifications
- Maximum input & output gain: 24 dBu
- Input impedance: 20 kΩ
- Output impedance: 75 Ω
- Common mode rejection (1 kHz): 82 dB
- Crosstalk (1 kHz, 48 kHz SR): -110 dB
- Dynamic Range (A-weighted, 48 kHz SR): 115 dB

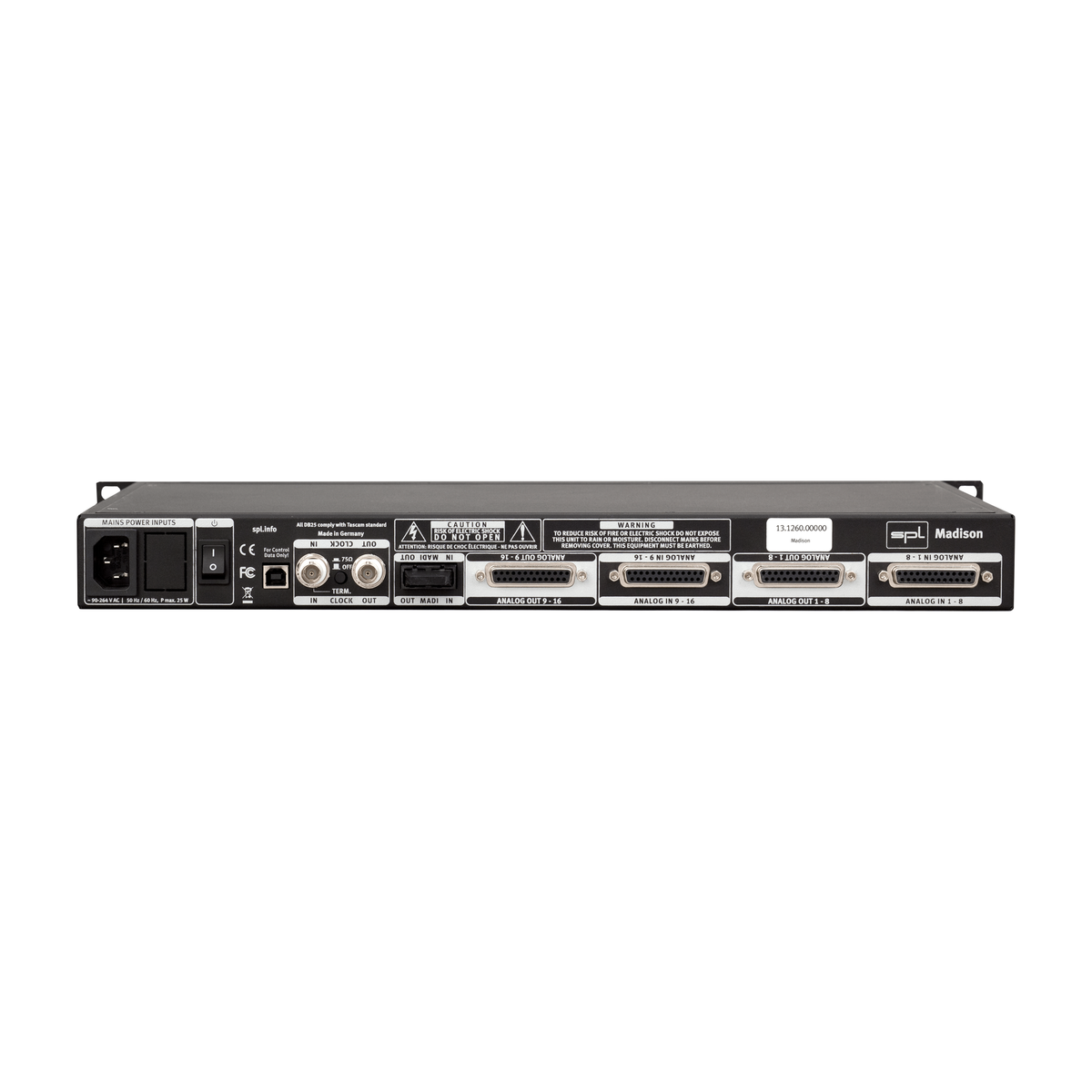

Digital I/O; MADI-Port
- MADI optical, Type SC: 44.1/48/88.2/96/176.4/192 kHz
- Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
- Reference Levels: 15dBu, 18dBu, 22dBu, 24 dBu
- Wordclock input, BNC, terminated impedance: 75 Ω
- Wordclock Level (Input TTL/CMOS5/CMOS3): 3.3 V
- S/(N+D) (-1 dBfs, 48kHz SR): -102 dBFS
- Passband response (-0.02dB, 48kHz SR): 22 kHz
- Passband Ripple (Decimation-LPF, 48kHz SR): +/- 0.005 dB
- Stopband Attenuation (Decimation-LPF, 48kHz SR): 100 dB
- Crosstalk (1 kHz, 48kHz SR): -110 dBu
Mains Power Supply
- Operating voltage for analog audio: +/- 17 V
- Operating voltage for digital audio: +12 V, +5 V
- BTU (British Thermal Units, typical): 65 BTU/h
- BTU (British Thermal Units, max): 110 BTU/h
- Mains voltage: 90 – 264 V AC, 50/60 Hz Hz
- Power consumption: max. 35 W
Dimensions & Weight
- W x H x D (width x height x depth): 482 x 44 x 260 mm / 19 x 1.73 x 10.24 inch
- Unit weight: 3.05 kg / 6.72 lbs
- Shipping weight (incl. packaging): 5 kg / 11.02 lbs
