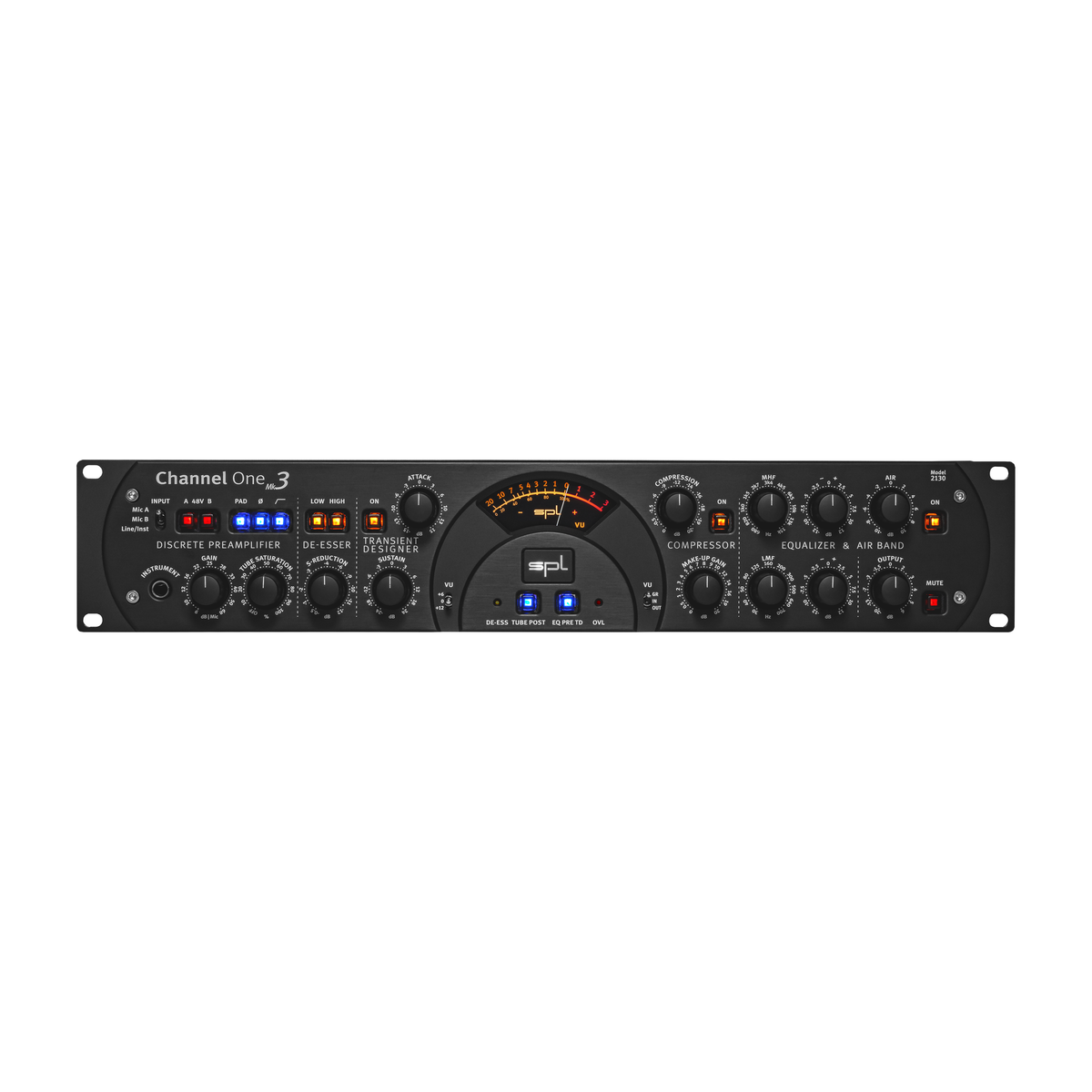

  • SPL Channel One MK3 Premium - Packshot 1

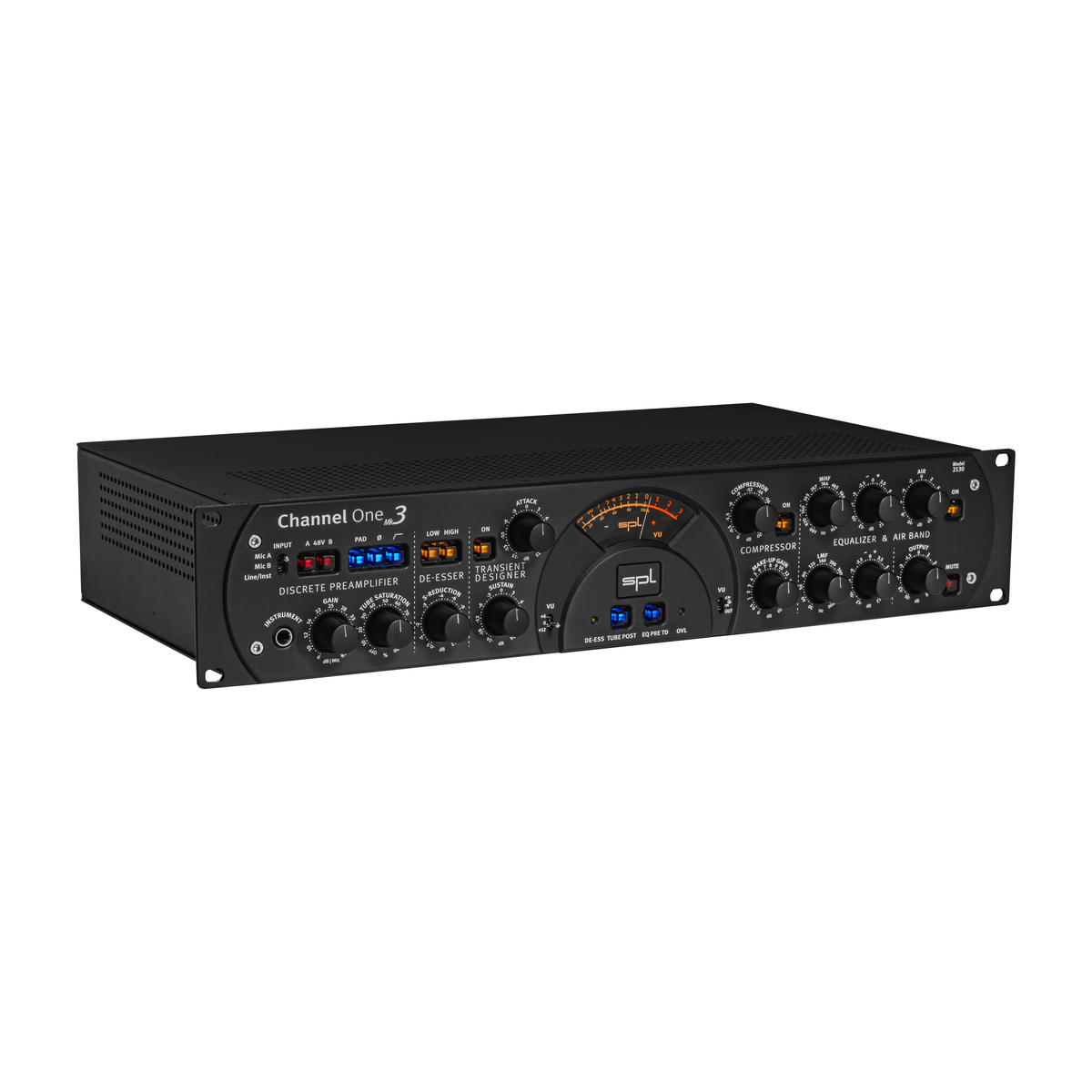

  • SPL Channel One MK3 Premium - Packshot 2

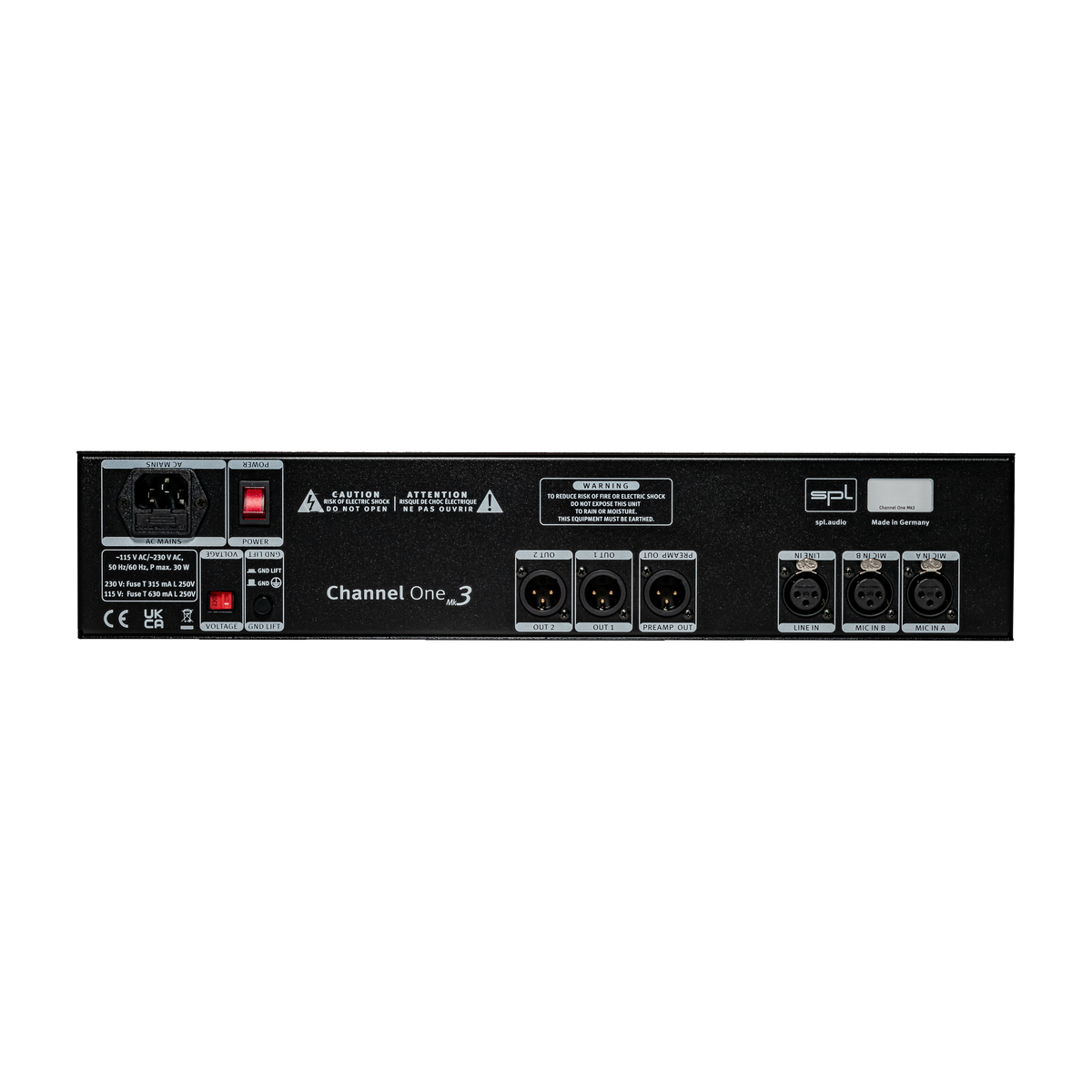

  • SPL Channel One MK3 Premium - Packshot 3
SPL Channel One MK3 Premium Audio Channel Strip

SPL Channel One MK3 Premium Audio Channel Strip

Rs. 3,60,235.00
Rs. 3,60,235.00
Taxes included. Shipping calculated at checkout.
SPL-0022

Get the best deal before you check out!

It is always a good idea to call and check for product availability and ongoing offers and discounts.

+91 844 622 6222 WhatsApp us

SPL Channel One MK3 Premium Audio Channel Strip
  • Genuine Product
  • With GST Invoice
  • After-sales Support
  • Non-returnable

    Overview

    The perfect front-end for the modern producer.

    For over 20 years, Channel One has been a synonym for a high-quality and extremely musical recording and mixing channel strip.

    In the newest Mk3 version, this classic has been thoroughly revised and, in addition to a higher internal audio voltage (now +/-18 V) for even better, more detailed sound, a further improved preamplifier section, an integrated Transient Designer, a Tube Saturation stage and a Mic A/B comparison option for two microphones and other great features that raise the modern recording and mixing studio to a new level of quality. With de-esser, compressor and equalizer, all the important tools of a real channel strip are still on board. Whether it’s a microphone, line, or instrument signal, the Channel One Mk3 makes any source sound like a professionally recorded signal.

    The new design of the SPL Studio Series perfectly highlights the sonic qualities of this 3rd generation Channel One.

    Specifications

    Analog inputs & output; XLR (balanced)

    • Maximum input gainl (Mic, +9.5dB – +68 dB): 13.5 dBu
    • Maximum input gain (Line, -20 dB – +16 dB): 22.5 dBu
    • Maximum input gain (Instrument, -6 dB – +30dB): 15 dBu
    • Input impedance (Mic/Line): 10 kΩ
    • Input impedance (Instrument): 1.1 MΩ
    • Output impedance: 75 Ω
    • Frequency range: 10 Hz – 200 kHz
    • Equivalent Input Noise (EIN): -126 dBu
    • Noise (A-weighted, Mic Preamp, 150 Ω, 30 dB Gain): -95 dBu
    • Noise (A-weighted, Mic Preamp, 150 Ω, 50 dB Gain): -79.5 dBu
    • Noise (A-weighted, Mic Preamp, 150 Ω, 68 dB Gain): -61.7 dBu
    • Noise (A-weighted, Line/Instr Preamp, 600 Ω, 5 dB Gain): -96.5 dBu
    • Noise (A-weighted, Line/Instr Preamp, 600 Ω, 20 dB Gain): -84.7 dBu
    • Common mode rejection (1 kHz) Mic input: < 80 dB
    • Common mode rejection (1 kHz) Line input: < 50 dB
    • THD+N Ratio (1 kHz), Mic 30 dB Gain: 0.0022 %
    • THD+N Ratio (1 kHz), Mic 50 dB Gain: 0.013 %
    • THD+N Ratio (1 kHz), Mic 68 dB Gain (Max.): 0.048 %
    • THD+N Ratio (1 kHz), Line 0 dB Gain: 0.0022 %
    • THD+N Ratio (1 kHz), Line 16 dB Gain: 0.0017 %

    Internal Linear Power Supply with Shielded Toroidal Transformer

    • Operating voltage for analog audio: +/-18 V
    • Operating voltage for relays and LEDs: +12 V
    • Tubes anode voltage: +250 V
    • Tubes heating voltage: +12.6 V
    • Phantom power: +48 V

    Mains Power Supply

    • Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
    • Fuse for 230 V: T 315 mA
    • Fuse for 115 V: T 630 mA
    • Power consumption: max. 22.3 VA

    Dimensions & Weight

    • W x H x D (width x height x depth): 482 x 88 x 237 mm / 19 x 3.46 x 9.33 inch
    • Unit weight: 6 kg / 13.22 lbs
    • Shipping weight (incl. packaging): 7.6 kg / 15,43 lbs
