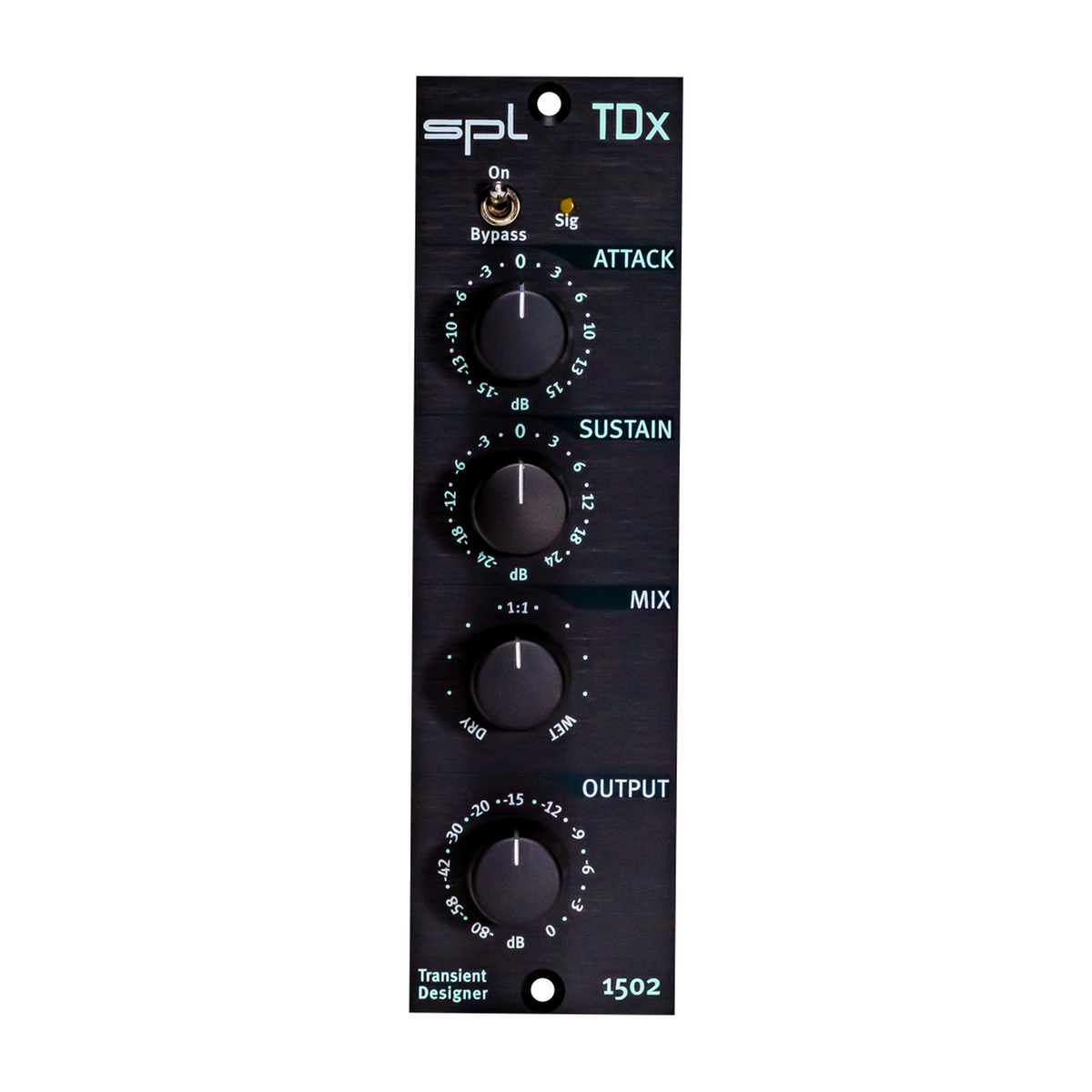

  • SPL TDx - Packshot 1

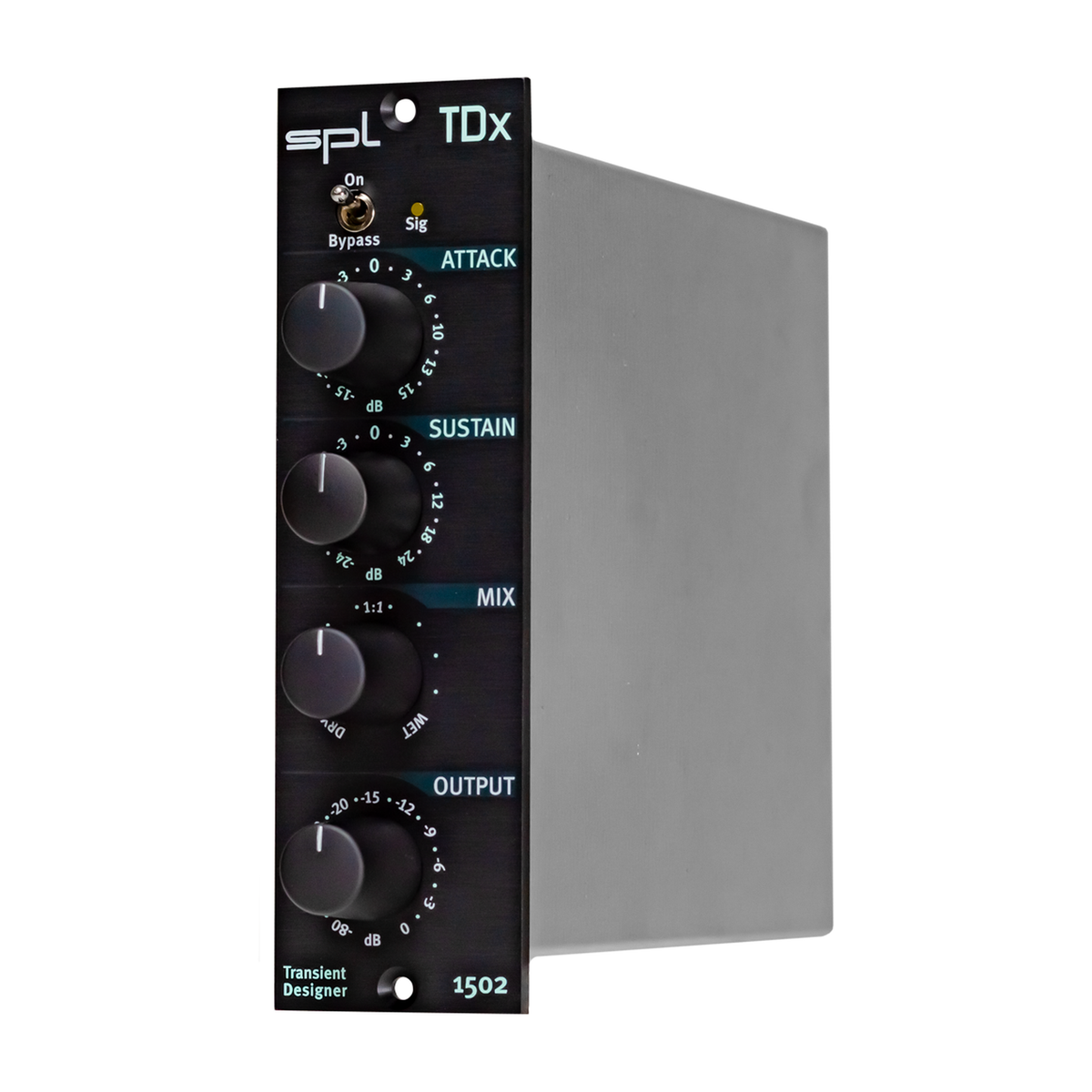

  • SPL TDx - Packshot 2

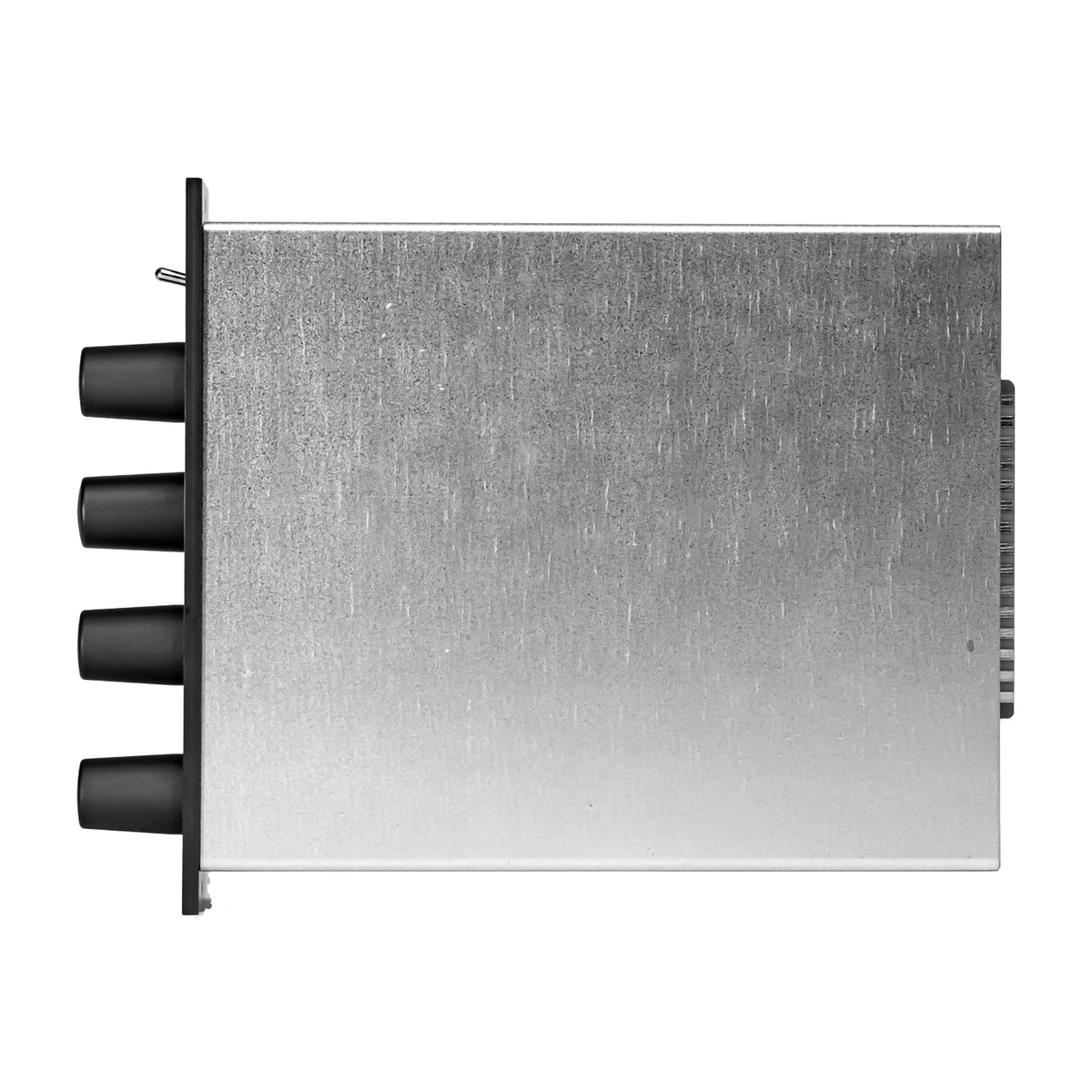

  • SPL TDx - Packshot 3
SPL TDx 500 Series Transient Designer

SPL TDx 500 Series Transient Designer

Rs. 53,350.00
Rs. 53,350.00
Taxes included. Shipping calculated at checkout.
SPL-0047

Get the best deal before you check out!

It is always a good idea to call and check for product availability and ongoing offers and discounts.

+91 844 622 6222 WhatsApp us

SPL TDx 500 Series Transient Designer
  • Genuine Product
  • With GST Invoice
  • After-sales Support
  • Non-returnable

    Overview

    The Transient Designer for 500 Series.

    The Transient Designer TDx brings level-independent dynamics processing to the world of 500 Series.

    Specifications

    Input & Output; balanced

    • Maximum input & output gain: 21 dBu
    • Input impedance: 20 kΩ
    • Output impedance: 150 Ω
    • Common mode rejection: > 82 dB
    • Frequency range (-3 dB): 10 Hz – 100 kHz
    • THD & N (0 dBu, 10 Hz – 22 kHz): 0.03 %
    • Noise (A-weighted): -92.3 dBu
    • Dynamic range: 113 dB

    Dimensions & Weight

    • Single-spaced module for 500 Series
    • Unit weight: 0.65 kg / 1.43 lbs
    • Shipping weight (incl. packaging): 0.9 kg / 1.98 lbs
